| Price | RMB10.00 |
| Shipping | AsiaChinaWithin 24 hours after payment |
| Quantity | -+ |
| Stock | 100件Min order 1件 |
The advantages of aluminum alloy power cables mainly include excellent safety performance, electrical conductivity, corrosion resistance, mechanical properties, connection performance and economic factors.

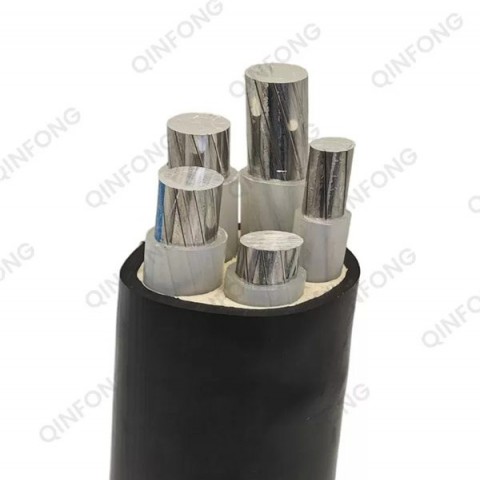

Conductor: Aluminum Alloy
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Outer sheath: PVC/PE
Sheath color: Black
Applications:
Power sector
Industrial parks and plants
Buildings
Transportation
3+1-Core Aluminum Alloy Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV） | |||||||
No. of Cores and Nominal Cross Section | Thickness of Insulation | Thickness of Sheath | Approx. Overall Diameter | Approx. Weight | Max. DC Resistance of Conductor (20℃) | Current Carrying Capacity（Ω/km） | |
(mm2) | (mm) | (mm) | (mm) | (kg/km) | （Ω/km） | In Air (A) | In Ground (A) |
3×16+1×10 | 0.7/0.7 | 1.8 | 19.4 | 370 | 1.91/3.08 | 65 | 85 |
3×25+1×16 | 0.9/0.7 | 1.8 | 22.8 | 520 | 1.20/1.91 | 87 | 110 |
3×35+1×16 | 0.9/0.7 | 1.8 | 25.1 | 650 | 0.868/1.91 | 105 | 130 |
3×50+1×25 | 1.0/0.9 | 1.8 | 28.2 | 780 | 0.641/1.20 | 130 | 160 |
3×70+1×35 | 1.1/0.9 | 1.9 | 31.9 | 1050 | 0.443/0.868 | 165 | 195 |
3×95+1×50 | 1.1/1.0 | 2.1 | 35.7 | 1460 | 0.320/0.641 | 205 | 235 |
As an experienced Aluminum Alloy Cable Manufacturer, Qinfeng is committed to providing high-quality, flexible, and cost-effective cable solutions for every industry, we have the products and expertise to support your project's needs. Our aluminum alloy cables are designed to meet the highest standards, offering superior performance, flexibility, and corrosion resistance. Inquire now for more information on our cables and how they can enhance your electrical systems.
