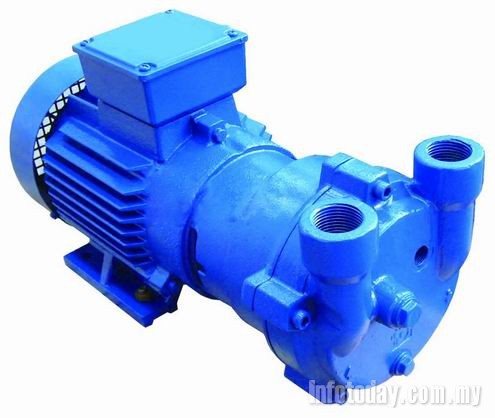

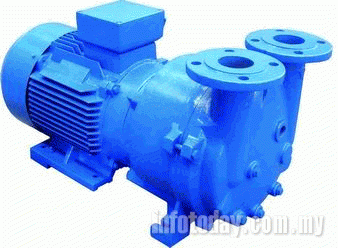

Liquid ring vacuum pump 2BV series
2BV series water ring vacuum pumps are suitable for pumping the gases and steam. Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree). So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely. When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, it is necessary to couple with the cavitation protection pipe in order to get rid of the screaming and protect the pump.
|
2BV series Liquid ring vacuum pump technology parameters
|
|
Type
|
Suction amount
|
Ultimate vacuum mbar(MPa)
|
Motor power kW
|
Pump speed r.p.m
|
Liquid flowrate m³/h
|
Noise dB(A)
|
Weight kg
|
|
m3/min
|
m3/h
|
|
2BV2 060
|
0.45
|
27
|
33mbar
(-0.098MPa)
|
0.81
|
2840
|
0.12
|
62
|
33
|
|
2BV2 061
|
0.86
|
52
|
1.45
|
2840
|
0.12
|
65
|
34
|
|
2BV2 070
|
1.33
|
80
|
2.35
|
2860
|
0.15
|
66
|
54
|
|
2BV2 071
|
1.83
|
110
|
3.85
|
2880
|
0.25
|
72
|
62
|
|
2BV5 110
|
2.75
|
165
|
4
|
1440
|
0.4
|
63
|
97
|
|
2BV5 111
|
3.83
|
230
|
5.5
|
1440
|
0.5
|
68
|
113
|
|
2BV5 121
|
4.66
|
280
|
7.5
|
1440
|
0.6
|
69
|
144
|
|
2BV5 131
|
6.66
|
400
|
11
|
1460
|
0.9
|
73
|
194
|
|
2BV5 161
|
8.33
|
500
|
15
|
970
|
1.2
|
74
|
340
|
|
2BV6 110
|
2.75
|
165
|
4
|
1440
|
6.7
|
63
|
148
|
|
2BV6 111
|
3.83
|
230
|
5.5
|
1440
|
8.3
|
68
|
196
|
|
2BV6 121
|
4.66
|
280
|
7.5
|
1440
|
10
|
69
|
220
|
|
2BV6 131
|
6.66
|
400
|
11
|
1460
|
15
|
73
|
314
|
|
2BV6 161
|
8.33
|
500
|
15
|
970
|
20
|
74
|
426
|
|
