A) ( IEC 61111:2009 ) BS EN 61111 Clause 5.6.4.3 , Voltage Withstand Test
Product Characteristic :-
1) Material : NATURAL RUBBER ( NR ) BASE POLYMER
2) Model / Brand Name : GS-SL , Withstood 20kV ( Class 1 ) , 3mm Nominal Thickness , BLACK Colour with TNBR QATS Test Certificate
3) Model / Brand Name : GS-SM , Withstood 30kV ( Class 2 ) , 5mm Nominal Thickness , BLACK Colour with TNBR QATS Test Certificate
4) Model / Brand Name : GS-SMG , Withstood 40kV ( Class 3 ) , 5mm Nominal Thickness , GREY Colour with TNBR QATS Test Certificate
5) Surface finishing : with anti slip Corrugated / Diamond plate surface to provide safe working
6) Specific gravity : 1.50 g/cm³
7) Hardness : 60 ± 5 Shore A
8) Elongation : Min 250 %
9) Tensile Strength : Min 5 MPa

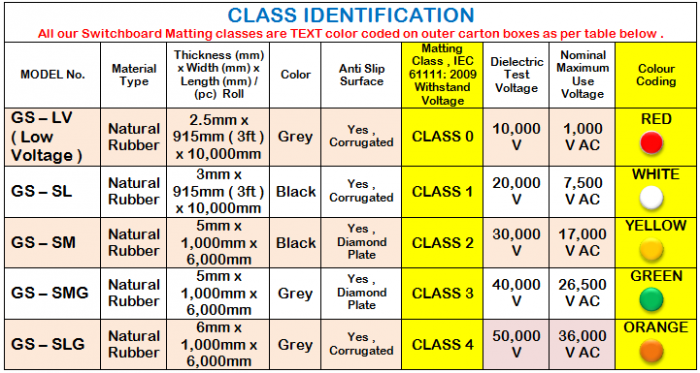

10) OUR available Dimension :
* I) Material Type : Natural Rubber ( NR ) base polymer with anti slip Corrugated

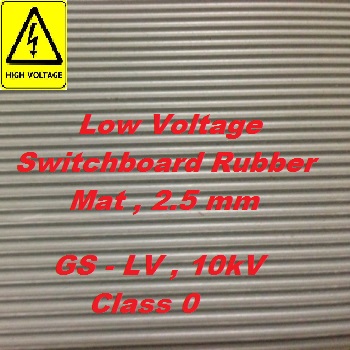

BS EN 61111 : 2009 Class 0 ( Withstood 10kV ) , GS-LV
A) 2.5mm Tk x 915 mm (0.915 m or 3 ft ) Width x 10,000mm ( 10 m ) Length / roll ( ~ 25kgs / pc )
* II) Material Type : Natural Rubber ( NR ) base polymer with anti slip Corrugated

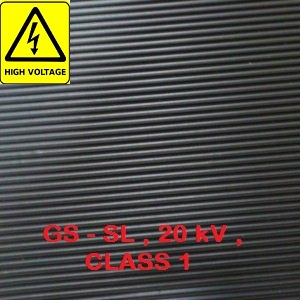

BS EN 61111 : 2009 Class 1 ( Withstood 20kV ) , GS-SL
A) 3mm Tk x 915 mm (0.915 m or 3 ft ) Width x 10,000mm ( 10 m ) Length / roll ( ~ 30kgs / pc )
* III) Material Type : Natural Rubber ( NR ) base polymer with anti slip diamond plate

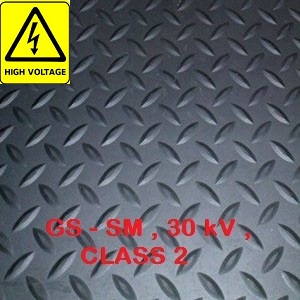

BS EN 61111 : 2009 Class 2 ( Withstood 30kV ) , GS-SM
A) 5mm Tk x 1,000mm (1 m ) Width x 6,000mm ( 6 m ) Length / roll ( ~ 36kgs / pc )
* IV) Material Type : Natural Rubber ( NR ) base polymer with anti slip diamond plate

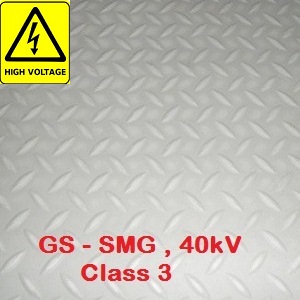

BS EN 61111 : 2009 Class 3 ( Withstood 40kV ) , GS-SMG
A) 5mm Tk x 1,000mm (1 m ) Width x 6,000mm ( 6 m ) Length / roll ( ~ 36kgs / pc )
* V) Material Type : Natural Rubber ( NR ) base polymer with anti slip Corrugated

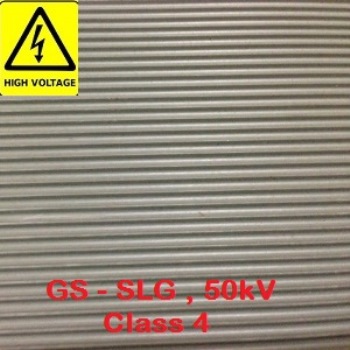

BS EN 61111 : 2009 Class 4 ( Withstood 50kV ) , GS-SLG
A) 6mm Tk x 1,000 mm (1 m ) Width x 6,000mm ( 6 m ) Length / roll ( ~ 50kgs / pc )
