|  | Uses easy to install, inexpensive CAT. 5e/6 cables |

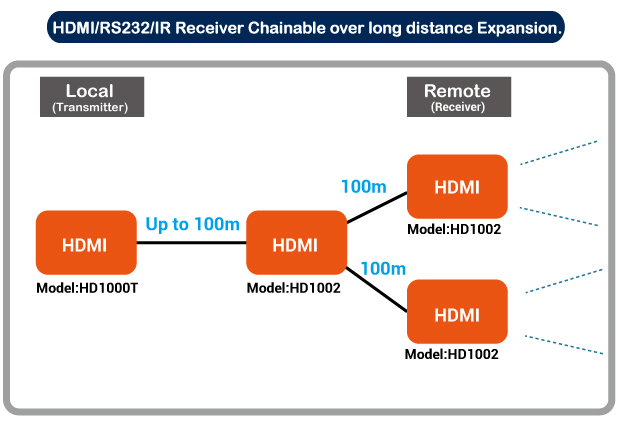

                        |  | Cascaded-chainable receiver up to 10 layers(1000M 1080P) |

                        |  | HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter(HD1000) and Receiver(HD1002), supports with HD video 1080P and PC resolution 19201200@60Hz signals, over CAT.5e/6 cabling. |

                        |  | Supports video high resolution up to 19201080, 1080p |

                        |  | Supports HDMI 1.3a |

                        |  | HDCP compliant |

                        |  | Supports Default EDID, and Selected EDID modes. |

                        |  | HDTV compatible (720p, 1080i, 1080p) |

                        |  | Supports RS-232 (Serial) |

                        |  | IR (Infrared remote) enabled |

                        |  | Supports Local HDMI monitoring port |

                        |  | No software / driver installation required. |

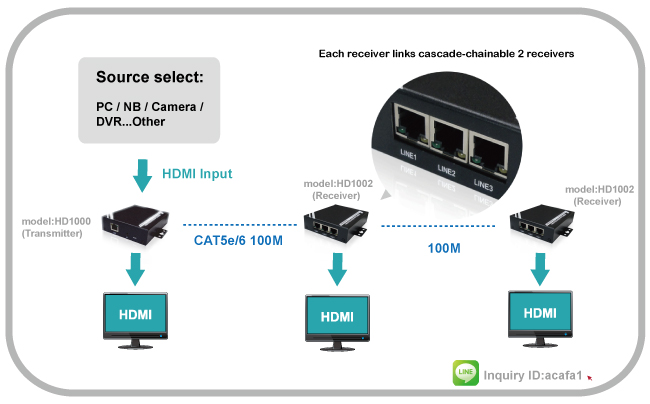

                        |  | Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002) |

                        |  | Rack mountable |

                        |  | Made in Taiwan. |

                        |  | Remark: Suggest using UTP Cat6 cable, use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance. |
