Contributing to rationalization and cost reduction of physical distribution
Material handling equipment of TOYO KOKEN are taking anactive part in the physical flow covering acceptance,machining, processing, production, storage, and distribution of materials and products.BALAMAN Series which saves labor of transfer andtransportation of heavy loads are offered in various types such as “Pneumatic BALAMAN”, handy “Hoist BALAMAN”, and “Electric BALAMAN” operated with electric power of 200V.This time, ULTRA BALAMAN, a hybrid type BALAMAN whichhas realized gravity-free handling, has been released. A wide variety of hand attachments applicable to heavy loads of any shape can be also made available.
●TOYO KOKEN’s material handling equipment have been used for various transfer and transportation applications
- For health and safety of workers
When loads should be carried in or out, or transferred repeatedly, crick in the back, stiffness of shoulders, or injuries of workers can be prevented.
- Remarkable improvement of operating efficiency
Efficiency of transfer of heavy loads hard to handle due to the shape or weight is remarkably improved.
- Simplicify the skilled operations
Operations requiring skill to handle loads of shapes difficult to handle or heavy and fragile articles can be flexibly dealt with. Accordingly you can seek rationalization of operations.
- Applicable to a wide working range
These equipment can be applied to a wide variety of purposes including lateral loading and unloading. Overhead, floor standing, and suspended types of equipment can meet requirements in various operating environments.
- Mitigation of heavy labor
Risk of workers or loss of operating time in transportation of loads or materials heavy and difficult to handle by one person can be eliminated.
There are few types of Balaman material handling equipment :
1.

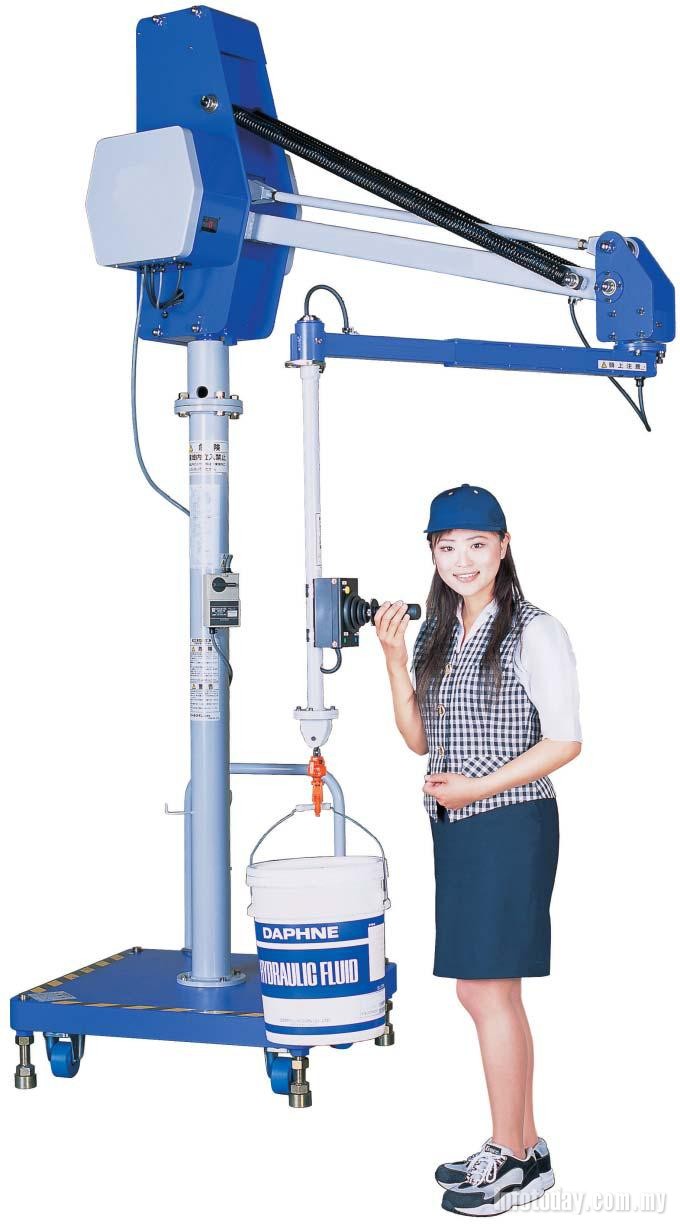

UBMF type (General-purpose floor standing type)
Features
- By employing a computer control system, power required for operation has decreased to 1/2 to 1/3 than before.
- Approximately constant operating force can be secured irrespective of work piece weight
- Safety circuit works during operation to improve the safety remarkably.
- Crane operating speed is finely controlled.
- Maintenance efficiency is remarkably improved by display of warnings.
2. BMiS-50 (Intelligent type)
Features
- Positions in the vertical direction set as required can be easily reproduced and repeated
- Free setting or changing of working range by simple operation
- Applied robot techniques
- Series of models handling 50 to 150kg
3.

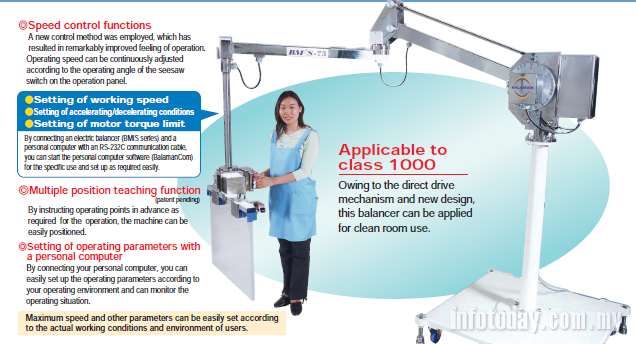

BMiS-75-CL (Clean room applicable specification)
4.

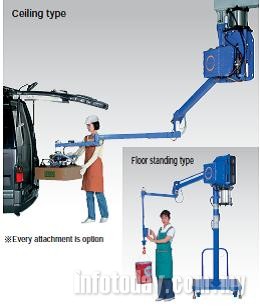

BMS type (Scala type)
Features
- Wider working range than the link type is secured.
- By employing a vertical arm and horizontal axis, high workability is provided. In addition, by shortening the support column and vertical arm by a same length (maximum 1m), machine height is reduced keeping the same working range.
- This ceiling type is suitable even for low ceiling area.
- Depending on the setting of length of the vertical arm, a ceiling type machine can be installed even in a site with the ceiling height below 3m.
- By installing the main unit cylinder on the upper position, overhead space can be secured for the operator.
- Two-stage horizontal arm suits to lateral loading/unloading.

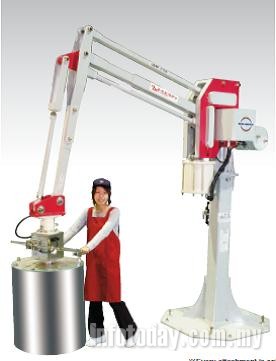

5. BMG type (Low floor standing type)
Features:
- This type of balancer can be installed in sites under low ceiling, still securing a wide working range.
- The double link system keeps the connecting point (flange) with the attachment horizontal, providing high workability.
- A series of 5 models for the suspended load of 30, 38, 50, 75, and 150kg
- Suspended load and working range of the model 75 and 150 can be changed the arm ratio.
6.

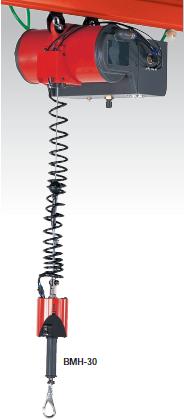

BMH-30/60 (Pneumatic type)
Features :
- High level of operatability
- Employment of safety design
- Wide working range and flexible installation
