Band-Type Beveling Machine

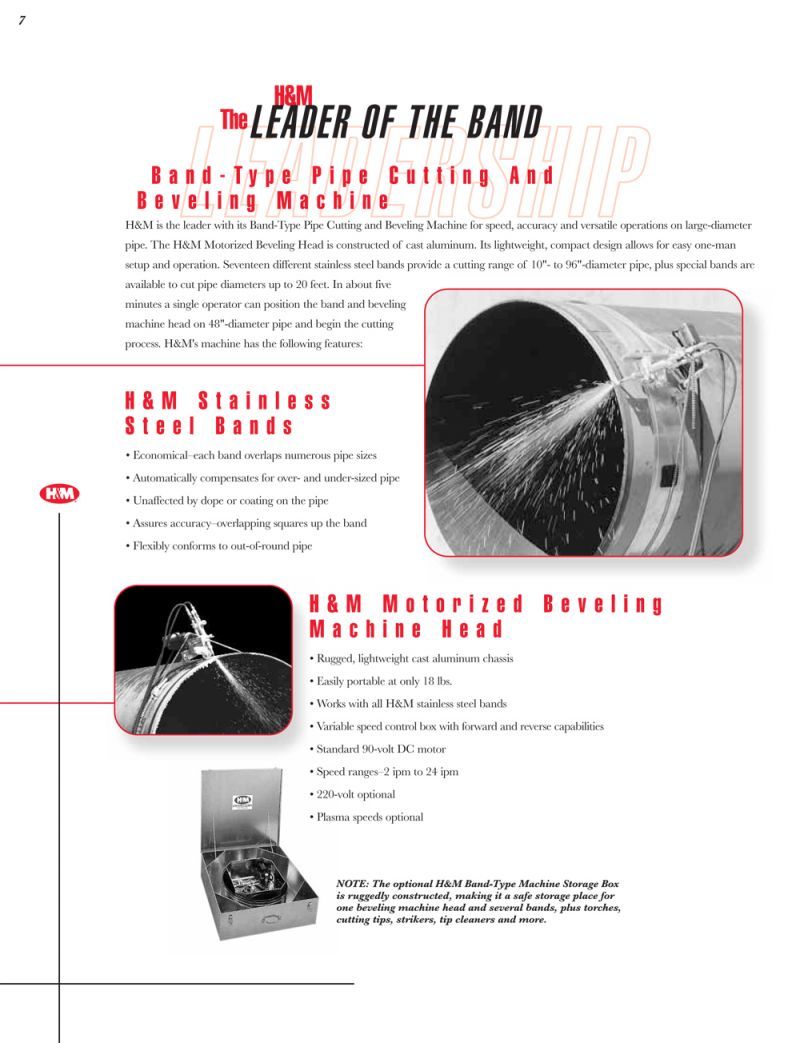

Band-Type Pipe Cutting And Beveling Machine

The H & M Band-Type Pipe Cutting and Beveling Machine is fast, accurate and versatile. A single operator can position the band and beveling machine head on 48″-diameter pipe in about five minutes. The H & M motorized beveling head is constructed of cast aluminum. Its lightweight, compact design allows for easy one-man setup and operation. Seventeen different stainless steel bands provide a cutting range of 10″- to 96″-diameter pipe, plus special bands are available for cutting pipe up to 20 feet in diameter.

Each H & M stainless steel band overlaps numerous pipe sizes making the bands very economical:

• Automatically compensates for over-sized or under-sized pipe
• Unaffected by dope or coating on the pipe
• Assures accuracy – overlapping squares up the band
• Conforms to out-of-round pipe

The H & M motorized beveling machine head incorporates a rugged, lightweight, cast aluminum chassis offering the following features:

• Portable (weighs only 18 lbs.)
• Designed to work on all H & M stainless steel bands
• Equipped with a 90-volt DC motor
• Variable speed control box with forward and reverse capabilities
• Plasma speeds (optional)
• 220 volt (optional)

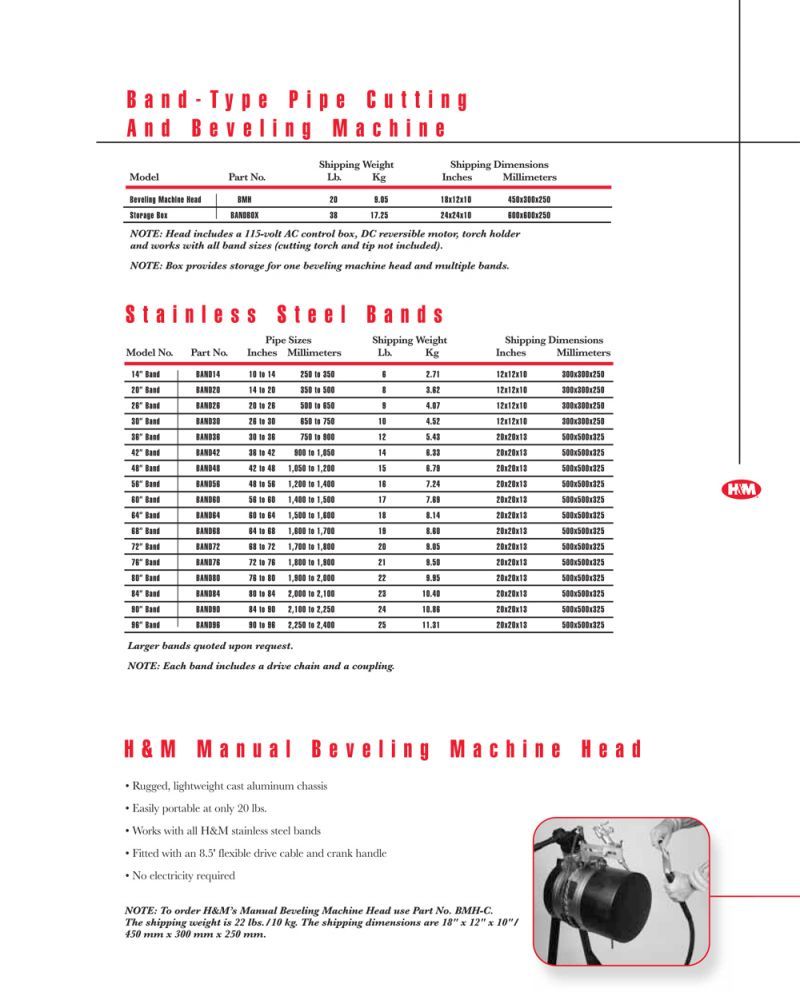

H & M Manual Beveling Machine Head

• Rugged, lightweight cas aluminum chassis
• Easily portable at only 20 lbs.
• Works with all H & M stainless steel bands
• Fitted with an 8.5′ flexible drive cable and crank handle
• No electricity required
