Cutting Tools in Malaysia | E-searching Cutting Tools Products-Mist diamond drill cutter

**Basic information**

● Effective length (mm): 50 / 100

● Blade diameter (mm): 4.0, 5.0, 6.0, 6.5, 8.0, 8.5, 9.0, 10.0, 10.5, 12.0, 12.5, 14.5, 16.0, 18.0, 19.0, 20.0, 22.0, 23.0, 24.0

● By rotation only, you can drill to such as porcelain tile of difficult-to-cut materials and concrete.

● You can drill difficult-to-cut materials porcelain tile and stone speedily.

● By using water, it makes cooling of diamond cutting edge, cutting dust emissions, and the drilling efficiency up.

● Shank and body can be replaced easily with one touch.

● Because body and cutter are coupled with a screw, cutter part is replaceable for cutting friction.

● Drilling with low vibration and low noise.

● Dust cannot be jammed in the cracked part. It minimizes the exfoliation of rear part in penetration.

● Suitable for seismic reinforcement work, waterproofing work, repair work of building outer wall, and drilling prepared hole for anchor.

● Use in drilling concrete, mortar, stone, porcelain tile, and the like.

● Applicable motor: Electric drill (Please use with a rotary-only function with double insulation mode.)

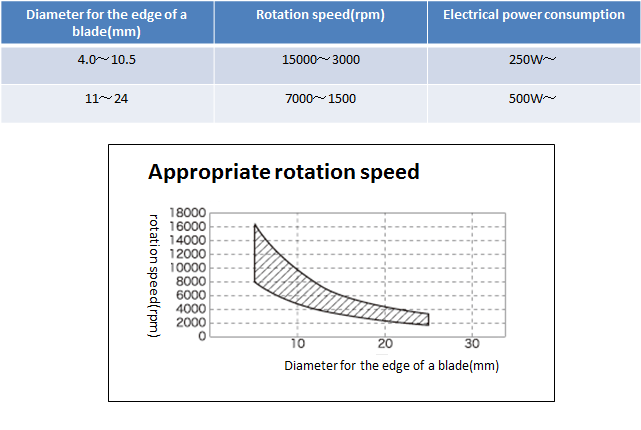

**Technical information**
dia meter

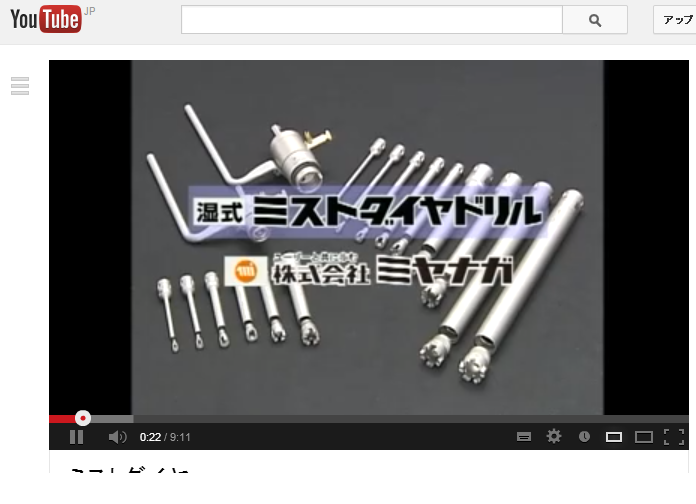

**MOVIE**

http://www.youtube.com/watch?v=Vq1uR7lhf4I&feature=player_embedded

http://www.youtube.com/watch?feature=player_embedded&v=_LlCt41zc6s

**User Reviews**
1.
When I tried "Mist diamond drill cutter " by MIYANAGA as drilling instrument of concrete and porcelain tile, I was amazed at its toughness, namely, perfectly unbreakable !
because other drills are easily breakable to them.

2.
We are the processing industry of stone materials, and used "Mist diamond drill cutter" for drilling of marble stone.
Although the conventional drills put a strain to operators due to large vibration and undesired sound, this item resolved such problems, and could offer us smooth operation.

Price	Negotiable
Delivery	AsiaJapan
	Insufficient stock for this product

Mist diamond drill cutter

MIJ
