Positive displacement spiral impeller pumps

2013-08-08 21:561290 Inquiries
Price Negotiable
Delivery MalaysiaSelangorShah Alam
Brand BOMINOX
Insufficient stock for this product
Product Details

h1_gran

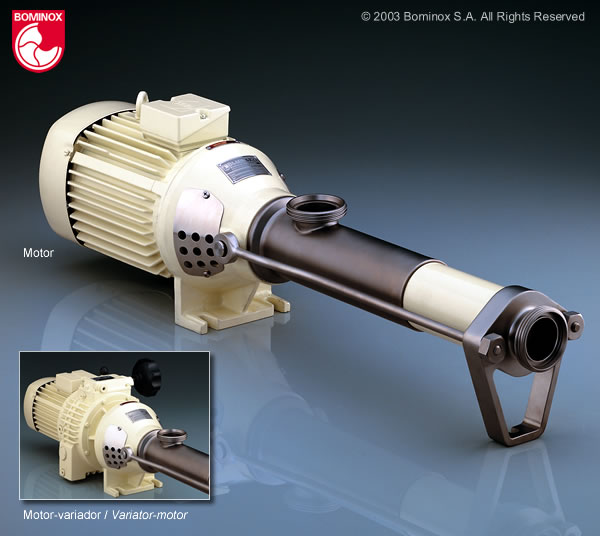

ROTOR-M - Monobloc positive displacement spiral impeller pump

Flow rate Q = 0.5 to 20 m3/h
Total head H = 5 to 60 mwc
Motors P = 0.5 to 7.5 hp
(0.37 to 5.5 kW)
Motor velocity n = 100 to 1500 rpm
Maximum viscosity V = 100000 cP
Temperature T = 80ºC
(special 110ºC)
Material AISI-316L
Aplications Cream, custard, syrups, jams, molasses, cosmetics and pastes etc.
Water, wine, oil and juices etc.



h2_gran

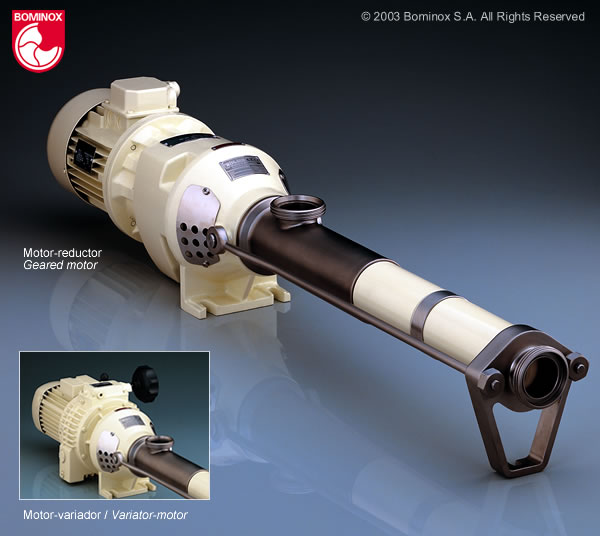

ROTOR-2/M - Twin-stage monobloc positive displacement spiral impeller pump

Flow rate Q = 0.5 to 18 m3/h
Total head H = 5 to 120 mwc
Motors P = 1 to 10 hp
(0.75 to 7.5 kW)
Motor velocity n = 100 to 1500 rpm
Maximum viscosity V = 100000 cP
Temperature T = 80ºC
(special 110ºC)
Material AISI-316L
Aplications Nata, crema, jarabes, mermeladas, melazas, cosméticos, pastas, etc.
Agua, vino, aceites, zumos, etc.



h3_gran

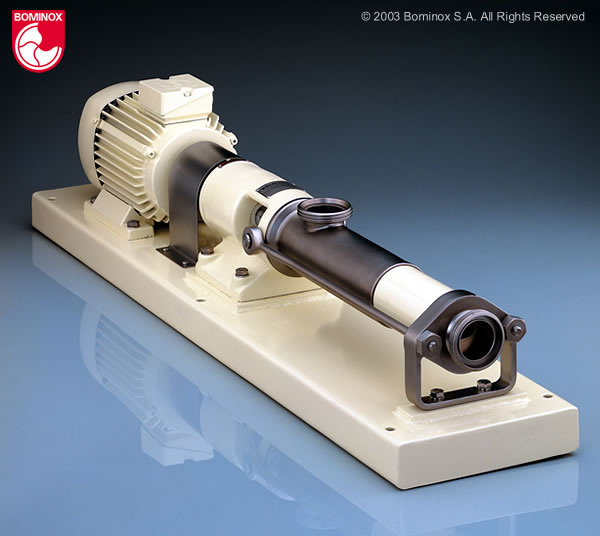

ROTOR-S - Free shaft positive displacement spiral impeller pump

Flow rate Q = 0.5 to 20 m3/h
Total head Single stage:
H = 5 to 60 mwc
Twin stage:
H = 5 to 120 mwc
Motors P = 0.5 to 10 hp
(0.37 to 7.5 kW)
Motor velocity n = 100 to 1500 rpm
Maximum viscosity V = 100000 cP
Temperature T = 80ºC
(special 110ºC)
Material AISI-316L
Aplications Cream, custard, syrups, jams, molasses, cosmetics and pastes etc.
Water, wine, oil and juices etc.



h4_gran

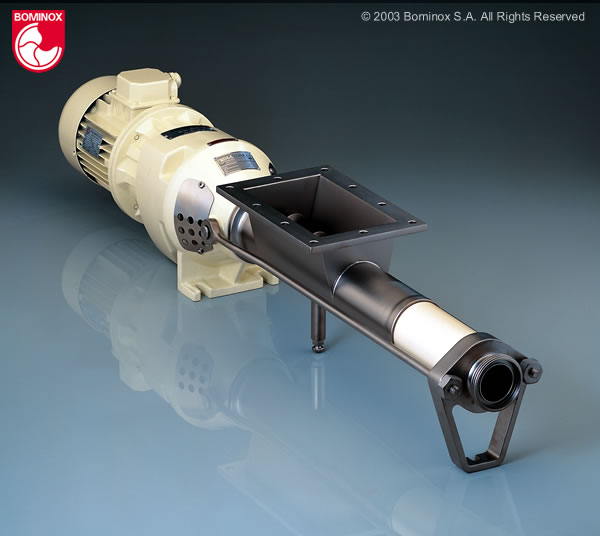

ROTOR-MT - Monobloc positive displacement spiral impeller hopper pump

Flow rate Q = 0.5 to 20 m3/h
Total head H = 5 to 60 mwc
Motors P = 0.5 to 7.5 hp
(0.37 to 5.5 kW)
Motor velocity n = 100/650 rpm
Maximum viscosity V = 250000 cP
Temperature T = 80ºC
(special 110ºC)
Material AISI-316L
Aplications Pastes, jams, molasses and cosmetics etc.
