DC Manual Metal Arc Welding

2013-09-19 09:57960 Inquiries
Price Negotiable
Delivery MalaysiaPerakWithin 3 days after payment
Insufficient stock for this product
Product Details
DC Manual Metal Arc Welding
Model: DC160i
Input Voltage: 1P 415V (150-270V)
Frequency: 50/60Hz
Input Power: 5KVA
100% Duty Cycle (40°C) @140A
Current Range: 20-160A
Open Circuit Voltage: 112VDC
Power Factor (%): 0.9
Electrode Dimension: 1.6-4.0mm
Dimension L x W x H (mm): 220 x 82 x 146
Weight (Kg): 1.9
DC Manual Metal Arc Welding
Model: DC 200i
Input Voltage: 1P 415V (150-270V)
Frequency: 50/60Hz
Input Power: 6.6KVA
100% Duty Cycle (40°C) @180A
Current Range: 20-200A
Open Circuit Voltage: 90VDC
Power Factor (%): 0.9
Electrode Dimension: 1.6-5.0mm
Dimension L x W x H (mm): 247 x 148 x 229
Weight (Kg): 3.1

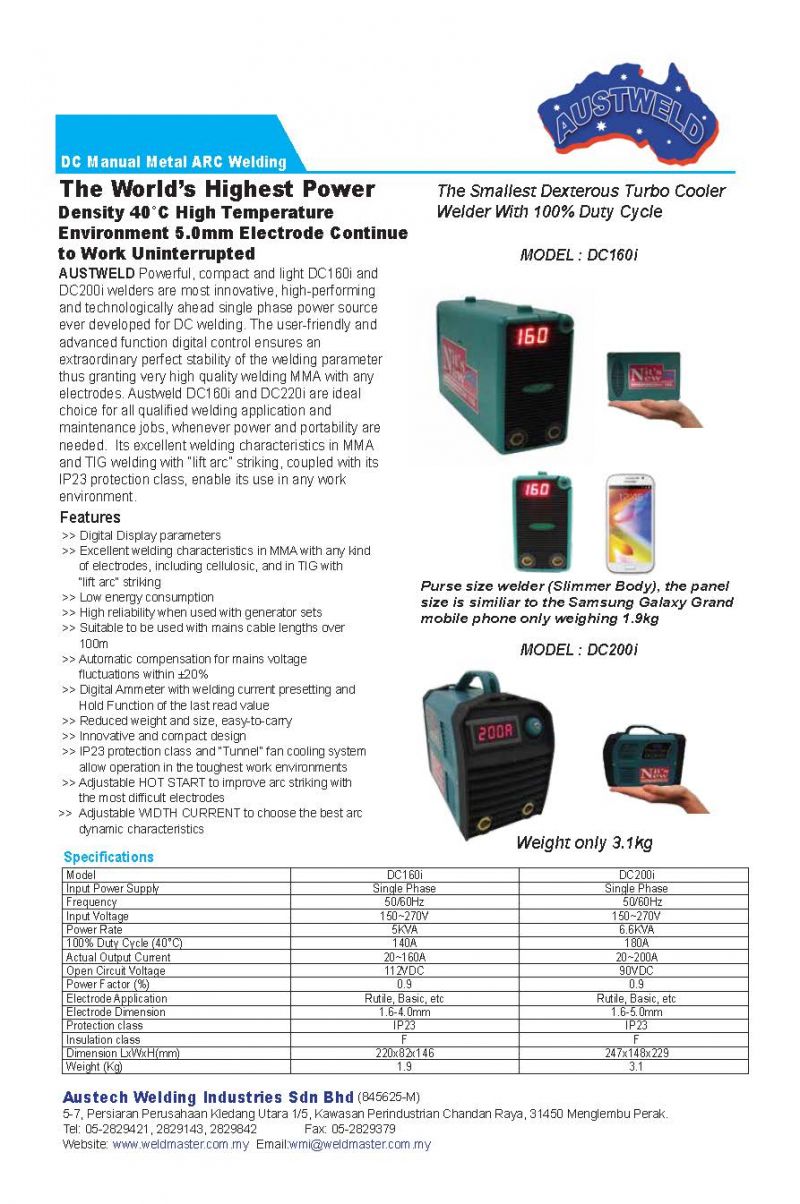

DC160i & DC200i
DC Manual Metal Arc Welding
Model: DC 220i
Input Voltage: 3P 415V (290-480V)
Frequency: 50/60Hz
Input Power: 7KVA
100% Duty Cycle (40°C) @200A
Current Range: 20-220A
Open Circuit Voltage: 72VDC
Power Factor (%): 0.9
Electrode Dimension: 1.6-5.0mm
Dimension L x W x H (mm): 247 x 148 x 229
Weight (Kg): 2.9

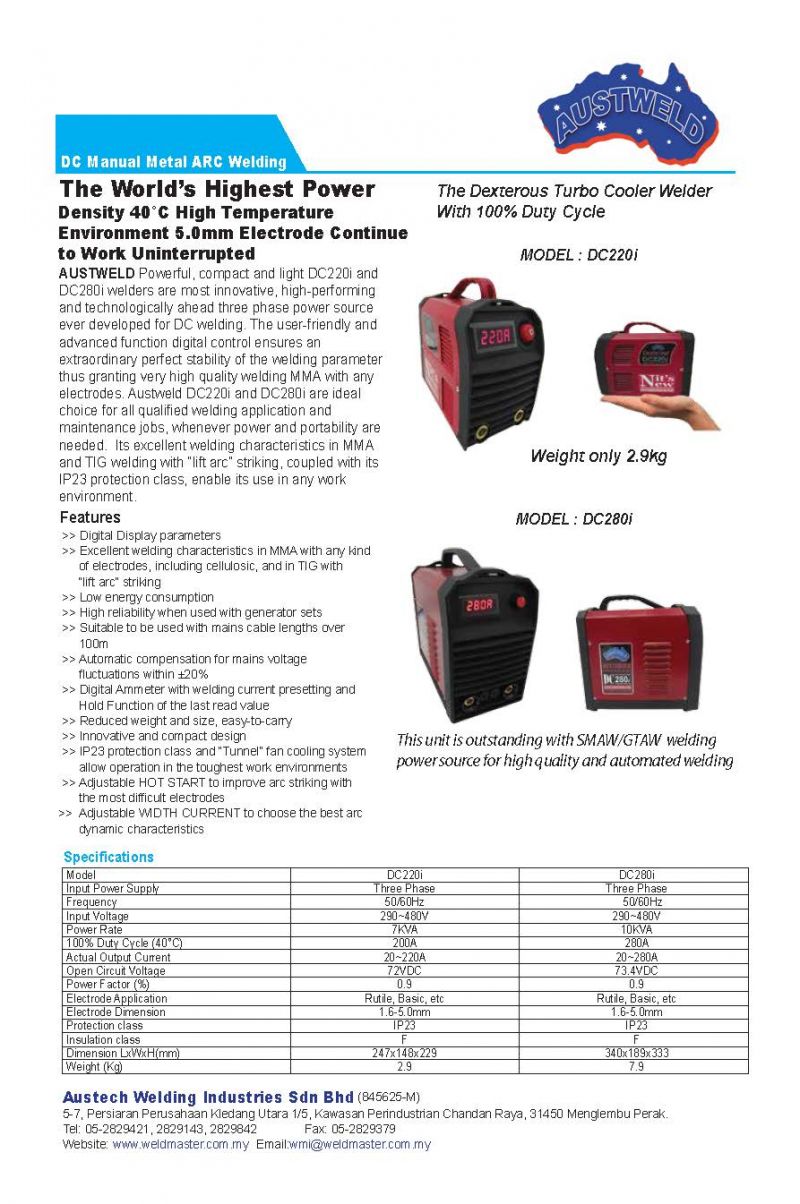

DC220i & DC280i
DC Manual Metal Arc Welding
Model: DC 630i
Input Voltage: 3P 415V (290-480V)
Frequency: 50/60Hz
Input Power: 37KVA
100% Duty Cycle (40°C) @480A
Current Range: 20-630A
Open Circuit Voltage: 81VDC
Power Factor (%): 0.9
Electrode Dimension: 4.0-12.0mm
Dimension L x W x H (mm): 395 x 218 x 391
Weight (Kg): 16.2

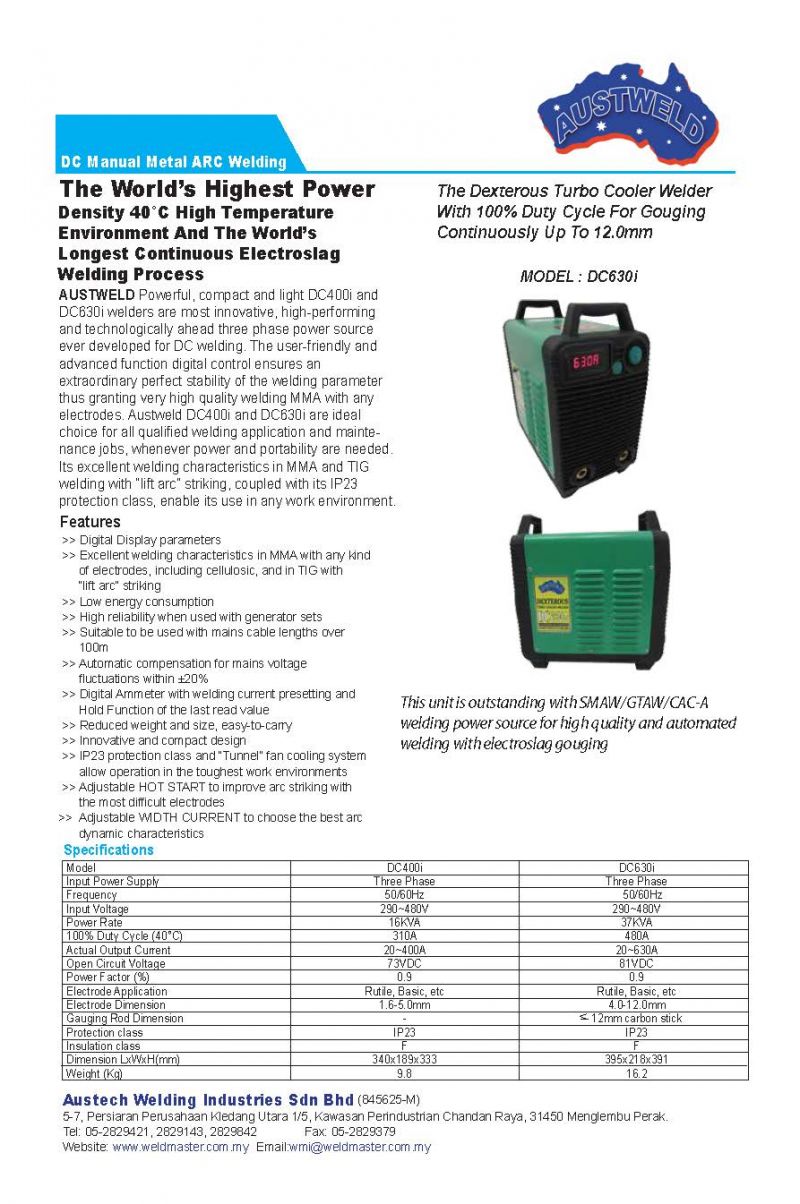

DC630i & DC400i
