2 End Stoppers and 1 Floor guide - (
features): Maximum weigth per door leaf: 20kg.

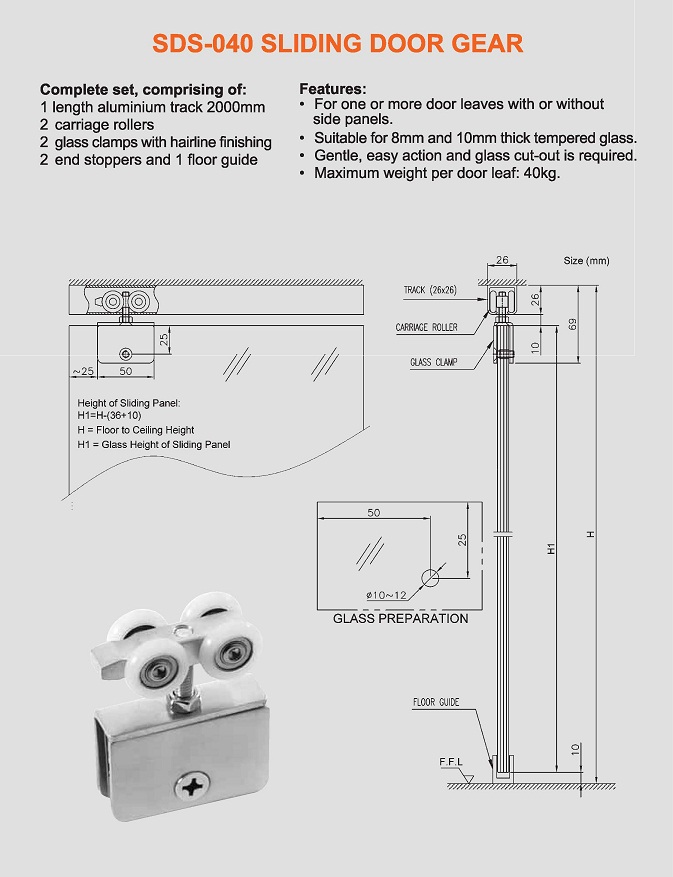

SDS-040 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2000mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 8mm and 10mm thick tempered glass.
2 Glass clamps with hairline finishing - (features): Gentie, easy action and glass cut-out is required.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 40kg.

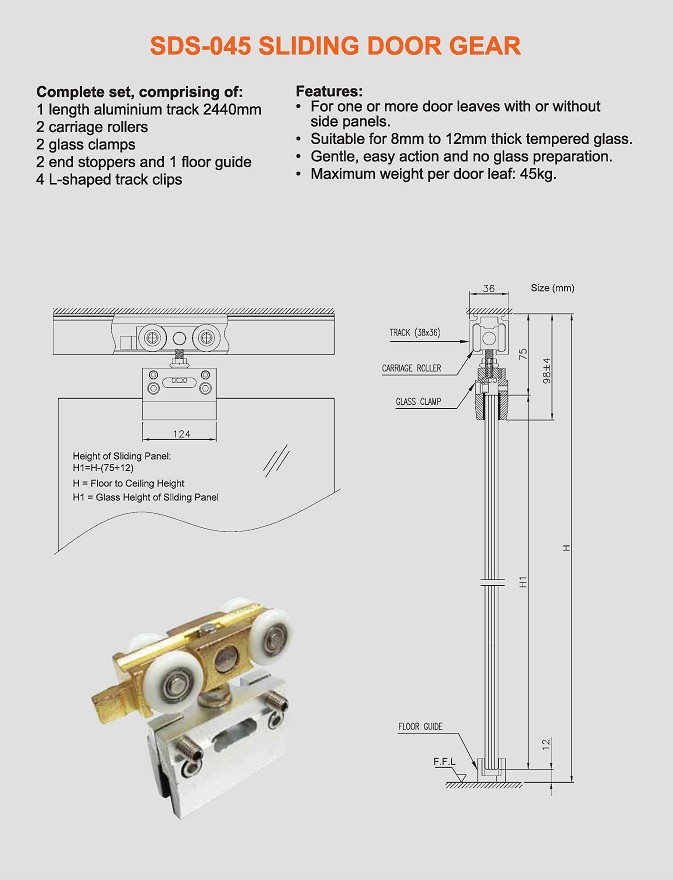

SDS-045 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 8mm and 12mm thick tempered glass.
2 Glass clamps - (features): Gentie, easy action and no glass preparation.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 45kg.
4 L-shaped track clips

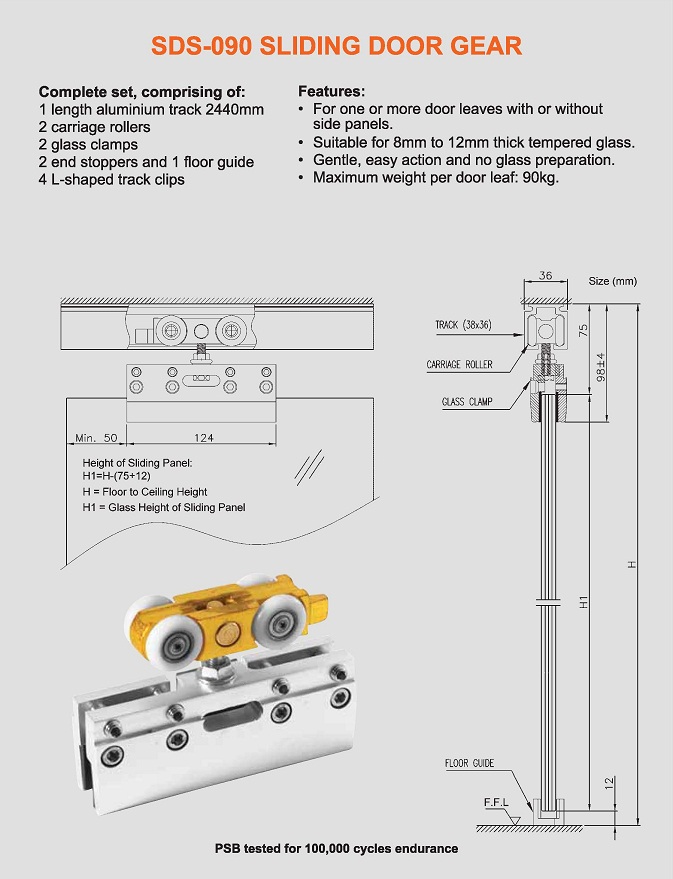

SDS-090 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 8mm and 12mm thick tempered glass.
2 Glass clamps - (features): Gentie, easy action and no glass preparation.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 90kg.
4 L-shaped track clips

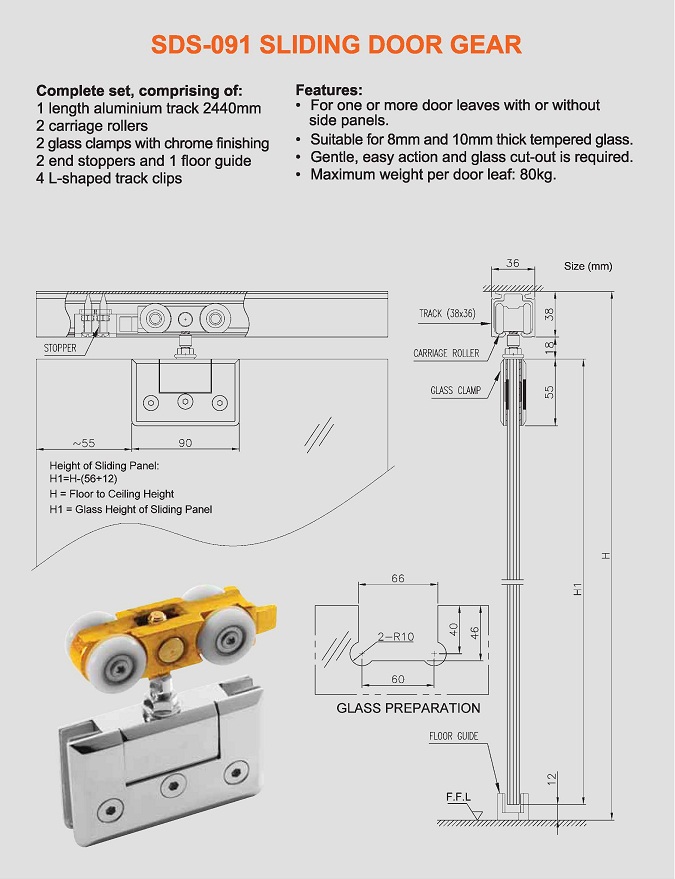

SDS-091 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 8mm and 10mm thick tempered glass.
2 Glass clamps with chrome finishing - (features): Gentie, easy action and glass cut-out is required.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 80kg.
4 L-shaped track clips

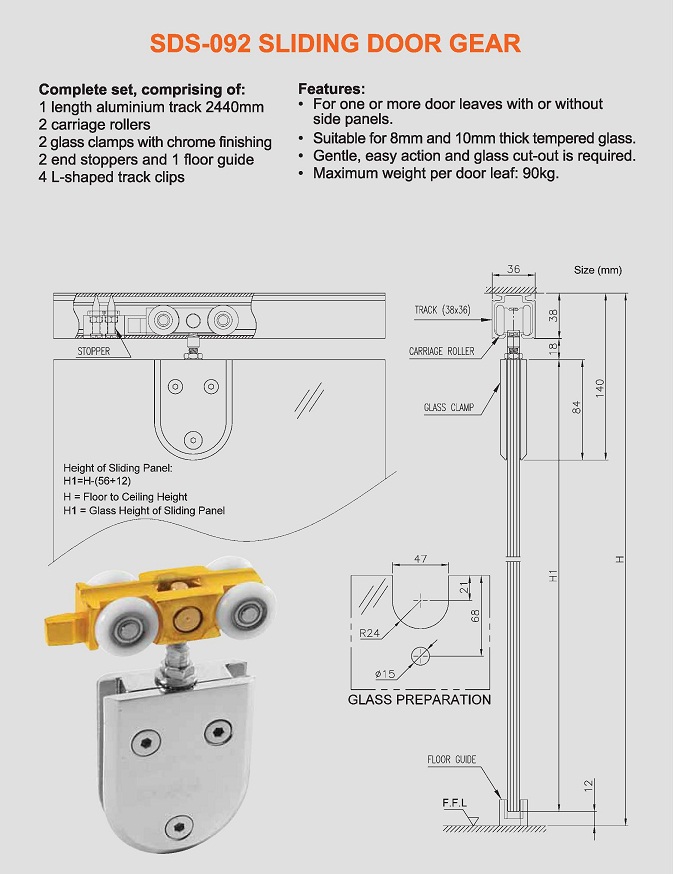

SDS-092 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 8mm and 10mm thick tempered glass.
2 Glass clamps with chrome finishing - (features): Gentie, easy action and glass cut-out is required.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 90kg.
4 L-shaped track clips

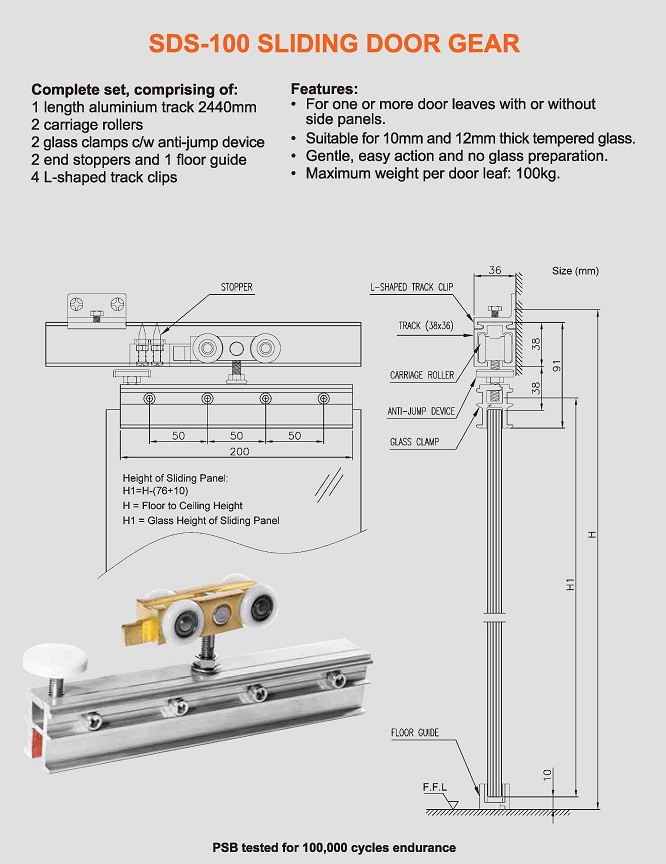

SDS-100 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 10mm and 12mm thick tempered glass.
2 Glass clamps c/w anti-jump device - (features): Gentie, easy action and no glass preparation.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 100kg.
4 L-shaped track clips

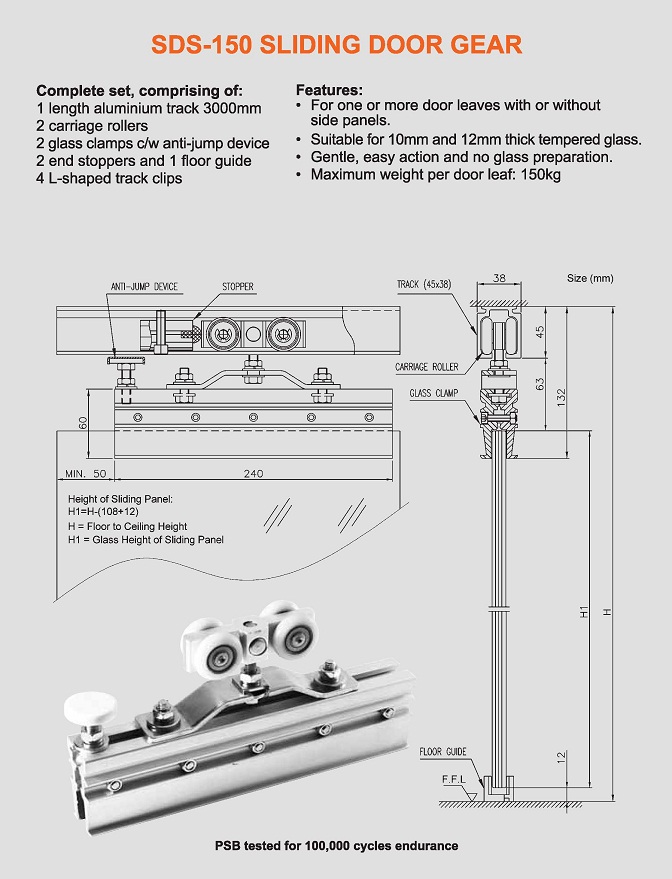

SDS-150 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 10mm and 12mm thick tempered glass.
2 Glass clamps c/w anti-jump device - (features): Gentie, easy action and no glass preparation.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 150kg.
4 L-shaped track clips

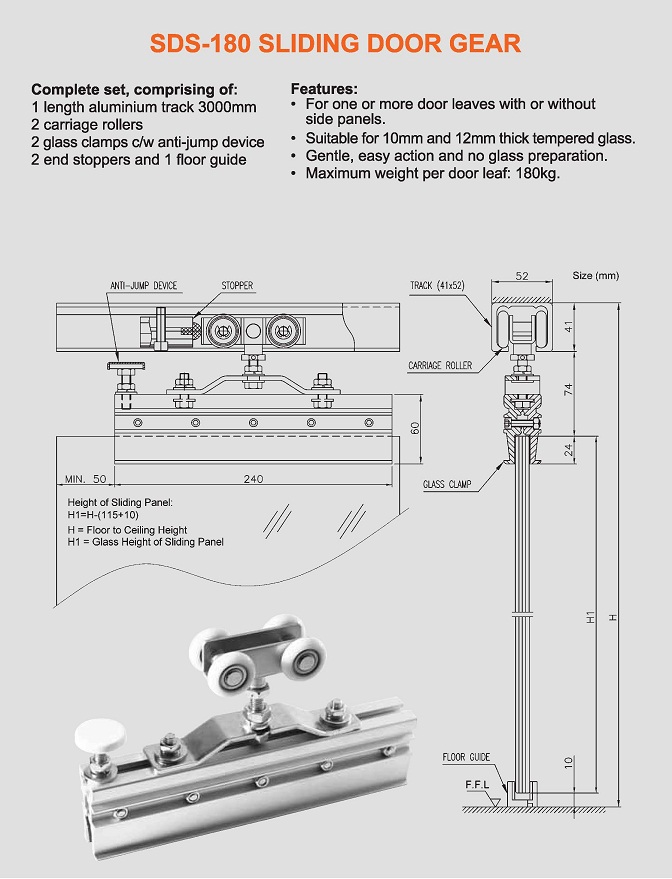

SDS-180 Sliding Door Gear
Complete set, comprising of:
1 Length aluminium track 3000mm - (features): For one or more door leaves with or without side panels.
2 Carriage Rollers - (features): Suitable for 10mm and 12mm thick tempered glass.
2 Glass clamps c/w anti-jump device - (features): Gentie, easy action and no glass preparation.
2 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 180kg.

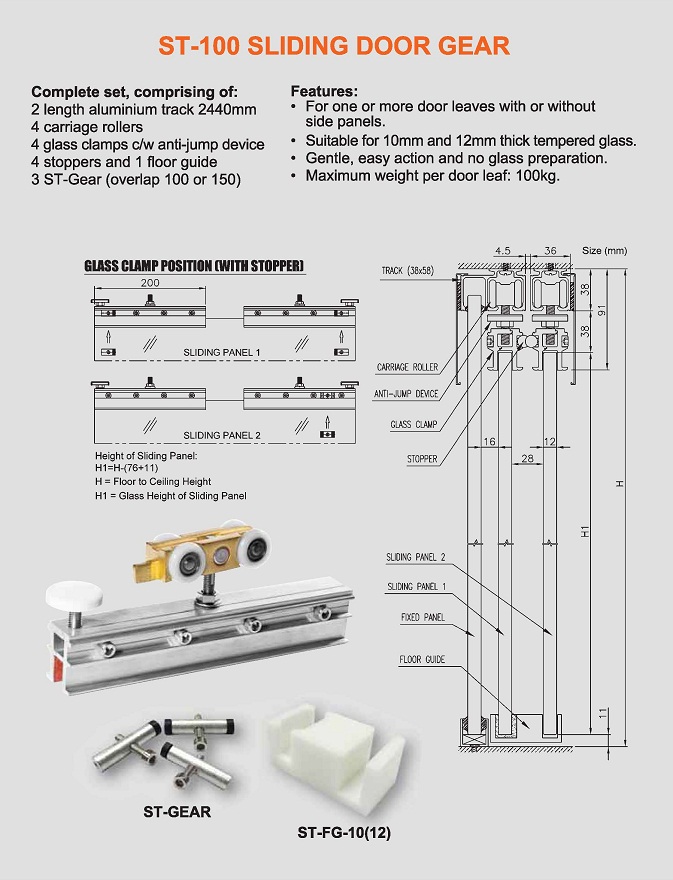

ST-100 Sliding Door Gear
Complete set, comprising of:
2 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
4 Carriage Rollers - (features): Suitable for 10mm and 12mm thick tempered glass.
4 Glass clamps c/w anti-jump device - (features): Gentie, easy action and no glass preparation.
4 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 100kg.
3 ST-Gear (overlap 100 or 150)
ST-100 Sliding Door Gear
Complete set, comprising of:
2 Length aluminium track 2440mm - (features): For one or more door leaves with or without side panels.
4 Carriage Rollers - (features): Suitable for 10mm and 12mm thick tempered glass.
4 Glass clamps c/w anti-jump device - (features): Gentie, easy action and no glass preparation.
4 End Stoppers and 1 Floor guide - (features): Maximum weigth per door leaf: 100kg.
3 ST-Gear (overlap 100 or 150)
