ALL-NEW ISUZU D-MAX
Welcome to a whole new era in pick-up trucks. The all-new ISUZU D-MAX – toughness, redefined. Encompassing aggressive new styling and new levels of safety – plus ISUZU’s legendary durability and fuel efficiency – the all-new ISUZU D-MAX strives ahead of its competition.
With an all-new plush interior that rival most saloon cars, you may soon forget that you're driving a pick-up truck.
Whether it’s hauling big loads, powering through the work week, cruising through the weekend or going where the others won’t, this is one pickup you can depend on. Put it to the test. You won’t be disappointed.
4 Pillars of Design
Kaiteki, which means Comfortable (Improved interior for long distance on-road or adventurous off-road)
Ryurei, which means Sporty (Trendy and stylish look)
Honebuto, which means Wide & Steady (Durable and reliable)
Aibou, which means Buddy (Perfect car for work and play)
Key design ideas to mention:
Aerodynamic design
Katana lines
COMFORT & CONVENIENCE
COMFORT & CONVENIENCE
EXCEPTION DURABLE PERFORMANCE
The ISUZU D-MAX comes from a lineage of the world’s toughest, most reliable trucks. Almost a century of truck-manufacturing DNA has gone into the all-new ISUZU D-MAX to deliver a pick-up truck that truly redefines the category.

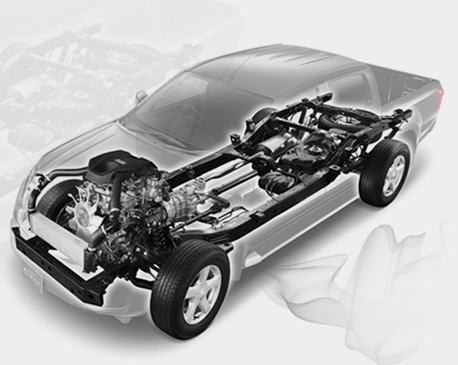

A brand new truck-tough chassis means even better balance and performance whether loaded or not, delivering superior stability and road-holding in all conditions.
And it doesn’t stop there. Under every bonnet you’ll find an ISUZU diesel engine that offers continuous power for all types of work and the fuel economy to help you save.
Designed with superior know-how that has seen over 23 million ISUZU diesel engines sold worldwide, and combined with state-of-the-art Japanese technology, you don’t just get a pick-up, you get true truck DNA with every ISUZU D-MAX.
VGS Turbocharger*
Isuzu’s all-new Variable Geometry System (VGS) Turbocharger delivers high output, lower emmisions and uses less fuel.
All-New 5-Speed Auto Transmission
All-New 5-speed automatic transmission with sequential shift.
Common-Rail Hyper-Pressure Fuel Injection*
Improved high pressure common-rail fuel system |

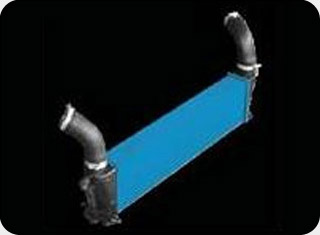

Larger intercooler
Has a greater thermo-cooling capacity, beneficial in adverse high engine temperature conditions |
Stronger Chassis
A stronger, durable yet lighter ladder chassis design for increased rigidity, safety and load carrying capacity. |
Timing Gear & Chain*
Steel timing chain assures reliability. |
Melt-In Liner*
Advanced anti-friction melt-in liner technology ensures durability |
Rocker Arms*
Sophisticated engine head saves fuel and service costs. |
Rear Suspension*
Over slung rear springs for improved off-road operation while maintaining stability. |
Front Suspension
Independent Double Wishbones with Coil Spring and stabilizer for more comfort while maintaining off-road capability |
Up For Any Challenge
Up for any challenge. The all-new ISUZU D-Max has further improved ground clearance, an excellent side-slip angle plus approach and departure angles. |
At ISUZU, safety is our priority...
The D-Max is equipped with a host of added safety benefits, including dual SRS airbags, energy absorbing front section and side impact anti-intrusion bars on all doors.
A brand new cabin structure, pre-tensioning seatbelts and speed sensing automatic door locking provide even greater protection.
The all-new D-Max also offers extra assurance from the Electronic Stability Control (ESC), Traction Control System (TCS), Electronic Brake-force Distribution (EBD) and Anti-Lock Braking System (ABS) with Brake Assist (BA) which ensure full-braking during an emergency.
Additionally, the all-new Anti-Whiplash front head restraints reduce impact and injury in the event of a rear-end collisions
Anti-Locking System (ABS), Electronic Brake-Force Distribution (EBD) and Brake Assist (BA)*
Optimum steering control while brakes are applied with Anti-Lock Braking System (ABS), Electronic Brake-Force Distribution (EBD) and Brake-Assist (BA
|
Electronic Stability Control (ESC)*
Electronic Stability Control (ESC) detects and controls vehicle stability while on the move.
|
Traction Control System (TCS)*
Traction Control System (TCS) prevents loss of vehicle control by monitoring wheel speed of moving vehicle.
|

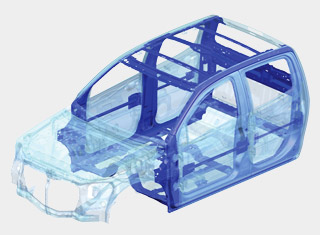

High Tensile Steel Cabin
This cabin comprises high tensile steel and tailor blank welding for an unyielding strength and rigidity of the passenger safety cell.

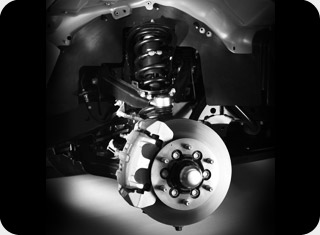

Larger Brakes
Improved braking efficiency with larger front brakes with ventilated discs.

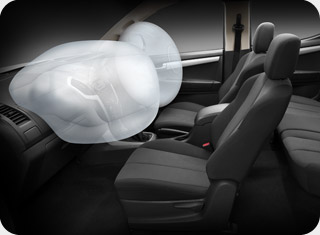

SRS Airbags **
Dual airbags protecting the driver and the front passenger in the event of a collision.

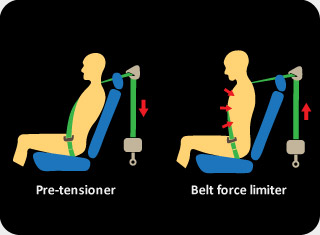

Pre-Tensioner Seatbelt With Belt Force Limiter
The front seats are equipped with pre-tensioner seatbelts, incorporated with belt-force limiters to further protect occupants and reduce level of injury during a severe collision.
*Available in 4x4, 4x2 HI-RIDE.
**Available in 4x4 AT & MT

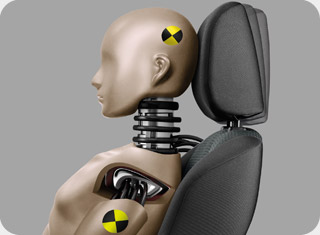

Anti Whiplash
To reduce the impact in a collision.
Stylish Exterior
The aerodynamics of modern vehicles is an important feature as it has a high impact on fuel economy and performance, as well as cabin comfort.
The design of the new D-MAX was tested for aerodynamic efficiency in various wind tunnel test facilities around the world, including the Japan Railway Research Institute, where the Bullet Train was tested. ISUZU also used the wind tunnel facilities in Europe, which tests the aerodynamic abilities of the world’s “super cars”.
New Design Cabin Roof, Side Panel and Doors
The new D-Max features a flatter roof to reduce wind noise in the cabin when travelling at a highway speed, and increases occupant comfort.

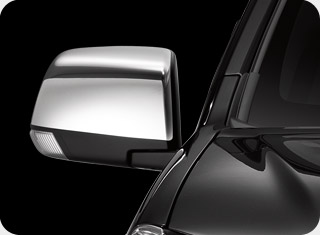

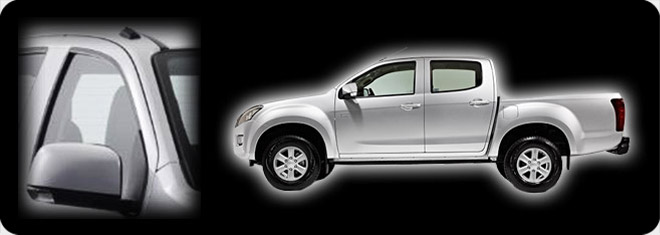

Power Foldable Side Mirror With Signal Indicators*
The side mirrors is adjustable to ideal viewing angle and can be folded when parked. Signal indicator provides safety to other road users.
New Rear Step Design*
The new rear step design incorporates a flat, wide non-slip upper surface to improve convenience and safety.
*Available in 4x4, 4x2 HI-RIDE.
**Available in 4x4 AT & MT

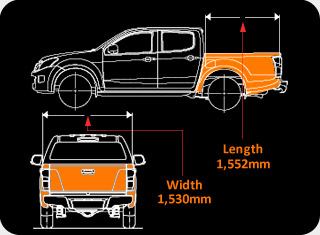

Bigger Rear Cargo
Longer & Wider cargo space provides improved cargo loading capacity area
Refined Side Steps
Non-slippery surface side steps for safe, easy entry and exit
Class-Leading Aerodynamic Design
State-of-the-art aerodynamics exterior design and testing for minimal drag.

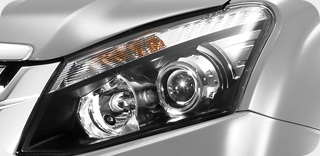

Projector Headlamp*
Utilising the Projector Ellipsoid System which gives 14% better illumination than the ordinary multi-reflector, the light beams are focused and shine further, so approaching objects can be spotted earlier.
LED Brake and Tail Lamps**
The new D-MAX features the largest in class rear lamp clusters. The combination of LED tail lamp and brake lamp provides brighter illumination especially during daytime.
| SPECIAFICATION |
 |
 |
 |
| |
ISUZU D-MAX
2.5L 4x2 MT |
ISUZU D-MAX
2.5L 4x2 MT HI-RIDE |
ISUZU D-MAX
2.5L 4x4 MT-L |
ISUZU D-MAX
2.5L 4x4 MT |
ISUZU D-MAX
2.5L 4x4 AT |
| ENGINE |
|
| Model |
4JA1-L |
4JK1-TCX |
| Type |
In-Line 4-Cylinder Turbo Diesel |
In-Line 4-Cylinder VGS Turbo Intercooler Diesel DOHC 16V |
| Displacement (cc) |
2,499 |
| Bore x Stroke (mm) |
93.0 x 92.0 |
95.4 x 87.4 |
| Compression Ratio |
18.5:1 |
18.1:1 |
| Maximum Output (kW (PS) @ rpm) [ISO NET] |
58 (79) @ 3,900 |
100 (136) @ 3,600 |
| Maximum Torque (Nm (kgm) @ rpm) [ ISO NET] |
176 (18.0) @ 1,800 |
320 (32.6) @ 1,800 - 2,800 |
| Fuel System |
Direct Injection Mechanical High Pressure Injection Pump |
Direct Injection Electronic Commonrail |
| TRANSMISSION |
|
| Type |
|
5-Speed Manual |
5-Speed Manual |
5-Speed Manual |
5-Speed Manual |
5-Speed Automatic |
| Gear Ratio |
1st |
4.008 |
4.008 |
4.008 |
4.008 |
3.520 |
| |
2nd |
2.301 |
2.301 |
2.301 |
2.301 |
2.042 |
| |
3rd |
1.427 |
1.427 |
1.427 |
1.427 |
1.400 |
| |
4th |
1.000 |
1.000 |
1.000 |
1.000 |
1.000 |
| |
5th |
0.828 |
0.745 |
0.745 |
0.745 |
0.716 |
| |
Reverse |
3.651 |
3.651 |
3.651 |
3.651 |
3.224 |
| |
Final |
4.300 |
4.100 |
4.100 |
4.100 |
3.909 |
| SUSPENSION & BRAKES |
|
| Suspension |
Front |
Independent Double Wishbones with Coil Springs & Stabilizer |
| |
Rear |
Semi-Elliptical Leaf Springs |
| Shock Absorber |
All Wheels Hydraulic Double Action Telescopic |
| Brakes |
Front |
Ventilated Disc with 2-Pot Calipers |
| |
Rear |
Leading & Trailing Drums |
| STEERING |
|
| Steering System |
Rack & Pinion Power Steering System |
| Min. Turning Radius (m) |
6.1 |
6.3 |
| Tyres |
195R15 |
245/70R16 |
255/65R17 |
| Wheels |
15” Steel |
16” Alloy |
17” Alloy |
| CAPACITIES |
|
| Seating Capacity |
5-Person |
| Fuel Tank Capacity (L) |
76 |
| EXTERIOR |
|
| Headlamps |
Multi-Reflector Halogen |
PROJECTOR Ellipsoid System |
| Front Fog Lamps |
- |
Built-In |
| Engine Hood Garnish |
Grey |
Chrome |
| Door Outer Mirror |
Black Colour Finished with Manual Mirror Control |
Chrome Finished Electric Folding & Control with LED Intergrated Turn Signal |
| Door & Tailgate Handles |
Black Colour |
Chrome |
| Roof Rail |
- |
Equipped |
| Rear Combination Lamp |
Standard |
LED |
| Rear Bumper |
One Step Type with Black Colour Finished |
One Step Type with Chrome Plating Finished |
| INTERIOR FEATURES |
|
| Meter Panel |
Standard with Information Display |
e-LUMAX with Advance Multi-Information Display |
| Steering |
3-Spoke Urethane |
3-Spoke Leather Wrapped |
3-Spoke Urethane |
3-Spoke Leather Wrapped with Audio & Hands-Free Switches |

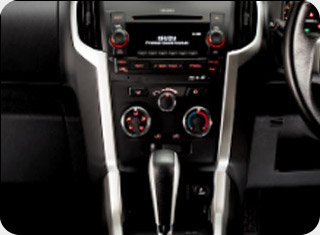

| Audio System |
1-Din AM/FM USB with 2-Speakers |
ISUZU 1-Din AM/FM MP3 WMA Player with 4-Speakers & 2-Tweeters |
[ISUZU Premium Audio System]
Built-In 2-Din AM/FM MP3 WMA Player
USB & Bluetooth with Exciter, Speakers & Tweeters |
| Assist Grip |
- |
Fixed Assist Grips for Driver & Front Passenger |
| Power Door Lock |
Electric Control |
Electric Control with Speed Sensing Automatic Door Lock |
| Seats |
Tricot Fabric |
Jacquard Flat Woven with Tricot Trim Bolster |

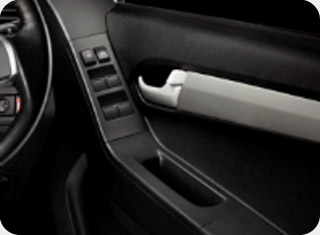

| Door Windows |
Electric Control |
Electric Control with Auto-Up & Down and Jam Protection for Driver |
| Middle Console Box |
Arm Rest Compartment |
Arm Rest Compartment with Rear Cups Holder |
| Map Lamp |
Dual for Driver & Front Passenger with Cards Clipper |
Dual for Driver & Front Passenger with Overhead Console |
| Cabin Lamp |
Equipped |
| Ash Tray |
Cup Type |
| Power Outlet |
- |
Inside Top Tier Glove Box |
| Cigarette Lighter |
Equipped |
| SAFETY FEATURES |
|
| SRS Airbags (DUAL) |
- |
Driver & Front Passenger |
| ABS with EBD |
- |
Equipped |
| Brake Assist (BA) |
- |
Equipped |
| Electronic Stability Control (ESC) |
- |
Equipped |
| Traction Control System (TCS) |
- |
Equipped |
| Load Sensing Proportional Valve (LSPV) |
Equipped |
- |
| Limited Slip Differential (LSD) |
- |
Equipped |
- |
| Body Construction |
Cabin Construction with Tailor Blank Welded High Tensile Steel |
| Side Door Impact Beams |
Equipped |
| Collapsible Steering Column |
Equipped |
| Windscreen |
Front Laminated with Rear Defogger |
| Wiper |
with Speed Intermittent |
with Variable Intermittent |
| Seat Belts |
3-Point ELR for All Occupants |
3-Point ELR for All Occupants plus Pre-Tensioner with Load Limiter for Front Seats |
| Child Seat Anchorage |
ISO FIX with Top Tether for Rear Seats |
| Vehicle Security System |
Anti-Theft Alarm System with Immobilize |
Anti-Theft Alarm System with Key-Coded Immobilizer |
| Child Protector Safety Lock |
Equipped |
| High Mount Stop Lamp |
Equipped |
| ACCESSORIES |
|
| Roll Bar |
- |
Optional |
| Bed Liner/ Bed Rubber Mat |
Optional |
Equipped |
| Side Step |
Optional |
Equipped
|

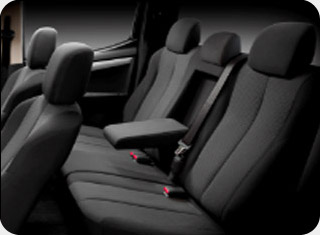

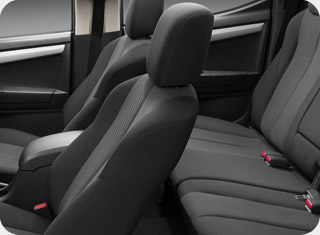

Wrap-Around Bolsters
