| 价格 | RM9999.00 |
| 发货 | AsiaChina预售，付款后25天内 |
| 品牌 | GUIKUANG |
| Final Powder size | 80~600 mesh or 23~180 micron |
| Technical Force | engineers can handle installation and maintenance independently |
| Application | Hard material,stone,ore |
| 该产品库存不足 |
GK9920,GK990 Series superfine pulverizer is mainly used in metallurgy, chemical industry, construction, pharmaceuticals, ceramics, electronics, military and other industries. For deep processing non-flammable, non-explosive mineral materials whose Mohs hardness and humidity is under 9 and 6% respectively, such as Talc, feldspar, zeolite, Calcite, barite, pyrophyllite, dolomite, Phosphate rock, wollastonite, coal, kaolin, bentonite, bauxite, titanium dioxide, ferrosilicon, gypsum, mica, quartz, corundum, zircon sand, emery and so on.

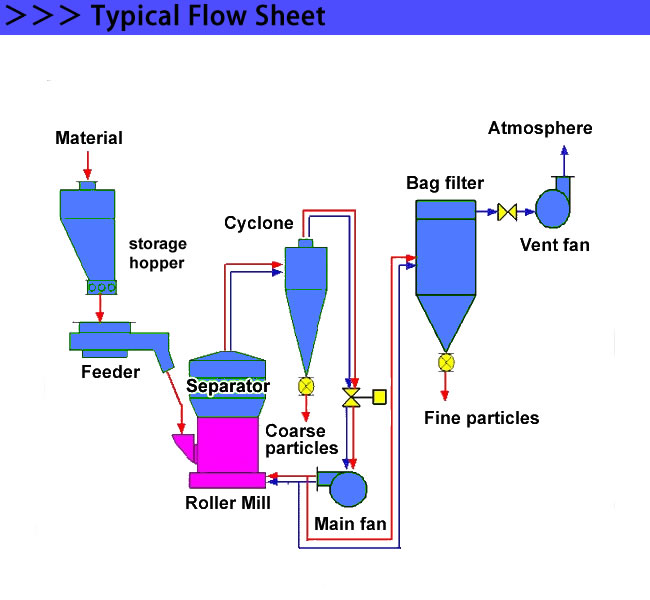

Working Process:
Accessory equipment |
|
|
Rotary feeder |
Used to feed materials. |
|
Whizzer separator |
Used to classify coarse particles. |
|
Cyclone collector |
Used to collect products. |
|
Main fan |
Used to transport products and circulate air. |
|
Vent fan |
Used to exhaust surplus air. |
|
Bag filter |
Used to support collection of products. |
|
Ducts |
Used to transport products and circulate air. |
Model Optional:
| Model | Roller Size(OD*Height) | Ring Inner Diameter | Max Feed Size | Product Size | Central Shaft Rotate Speed | Capacity | Total Motor Power | Total Weight | Moisture of Feeding Size | Moh's Hardness | Overall Dimension(L*W*H) |
| GK1720 | Φ510*300 mm | Φ1720 mm | 30 mm | 80~600 mesh | 88 r/min | 5500~25000kg/h | 375 kw | 46 t | ≤7% | ≤7 | 12500*12250*10400 mm |
| GK1500 | Φ450*300 mm | Φ1500 mm | 30 mm | 80~600 mesh | 108 r/min | 2500~24000 kg/h | 282 kw | 32 t | ≤7% | ≤7 | ************ |
| GK1280 | Φ370*240 mm | Φ1280 mm | 20 mm |
80~600 mesh |
150 r/min | 2000~15000 kg/h | 133.5 kw | 18 t | ≤7% | ≤7 | 8500*7500*8200 mm |
| 5R4128 | Φ410*280 mm | Φ 1270 mm | 30 mm | 80~600 mesh | 112 r/min | 2200~20000 kg/h | 220.5 kw | 29.6 t | ≤7% | ≤7 | 10100*9300*8330 mm |
| 5R4119 | Φ410*190 mm | Φ 1270 mm | 30 mm | 80~325 mehs | 105 r/min | 2000~6500 kg/h | 156 kw | 28 t | ≤7% | ≤7 | 9575*7652*15510 mm |
| 4R3220 | Φ320*200 mm | Φ 970 mm | 20 mm | 80~600 mesh | 150 r/min | 1000~7000 kg/h | 97.5 kw | 14.7 t | ≤7% | ≤7 | 7860*5990*11880 mm |
| 4R3216 |
Φ320*160 mm |
Φ 970 mm | 20 mm | 80~325 mesh | 145 r/min | 1000~3000 kg/h | 81.2 kw | 14 t | ≤7% | ≤7 | 7860*5990*11880 mm |
| 2R2613 | Φ 260*130 mm | Φ 760 mm | 15 mm | 60~325 mesh | 180 r/min |
300~3000 kg/h |
31.7 kw | 4.3 t | ≤7% | ≤7 | 4990*3575*6440 mm |
| GK9920 | Φ 365*240 mm | Φ1250 mm | 10 mm | 600~1500 mesh | 116 r/min | 1200~2500 kg/h | 140.5 kw | 28.5 t | ≤7% | ≤7 | 5730*7070*9270 mm |
