Masterwall Acoustic Partition Panel
Operable walls are the standard products to use when dividing classrooms, training rooms, ball rooms, and gymnasiums. Masterwall offers several model including steel framed panels, individual panel, curve and diverted.
Masterwall operable walls are tested to high quality standard with cycle, stree and service ability of the panels for our distributor and customers
- High quality decorative finish. ( Xstex Panel )
- Compliments any design concept.
- Excellent acoustic and thermal insulation.
- Flexible design characteristics
- Easy to handle, install and clean
- Cost effective sound control
- Fire rated
APPLICATIONS
Masterwall Xstex interior panel provided an effective means of controlling reverberation time and reflected sound in rooms. They are applied in studio’s conference Centre’s, cinemas, auditoria and offices where high acoustic absorption, combined with aesthetically pleasing appearance in required. Wall panel for industrial application such as engine enclosures, test cells and workshops are also available.
DEscriptION
Masterwall Xstex panels are acoustically absorbent, fabric covered panel of a composite construction. The standard covering is an acoustically transparent woven textile fabric. Bespoke panels, of specific size, fabric can be manufactured upon request. For industrial applications, facing of 200gsm/m2 glass cloth or white PU where a wipe down procedure is specified can be supplied.
PHYSICAL INFORMATION
Thickness : 25mm
50mm
Other thicknesses are available upon request.
Maximum panel size : 3000 x 1200mm
Weight : 3.25kg/m2 for 25mm panel
5.00kg/m2 for 50mm panel
The above sizes and weight are nominal figures.
FIRE PERFORMANCE
Masterwall Xstex acoustic panel conform to the following specifications:
- The Xstex panel core is non-combustible
- Master standard fabric covering complies with BS 479:1987 to class 1.
When faces with the Masterwall standard fabric, Xstex panels comply with fire test BS 476: Parts 6&7 to give UK Building Regulations Class ‘O’ performance.
ACOUSTIC PERFORMANCE
Masterwall Xstex panel work in two distinct ways to reduce noise, by impeding the transmission of sound. The noise absorption co-efficient is expressed as a factor between 0 and 1.0. The more sound that a material absorbs, the higher the noise absorption co-efficient.

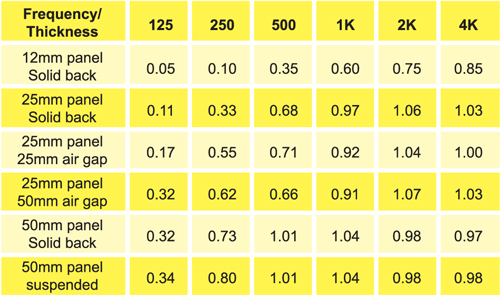

The noise absorption co-efficient for Xstex panel, as tested to BS 3638:987:
