(Mark 6) Multi Operator Mark VIĶ¼1

(Mark 6) Multi Operator Mark VI

2015-07-02 11:161540 Inquiries
Price Negotiable
Delivery MalaysiaPerakWithin 3 days after payment
Insufficient stock for this product
Product Details
Multi Operator Mark VI
Model: Mark VI
Input Voltage: 415V 3P 50Hz
Rated Current: 500AMP @35%
Input Power: 106 KVA
Input AMP: 144 AMP
AMP. Range: 20-420 (lock)
Output Voltage: 36V
O.C.V: 72V
Efficiency: IP23
Duty Cycle: 60% @420AMP
Weight: 467kg
Dimension (L x W x H): 1100mm x 1102mm x 1362mm

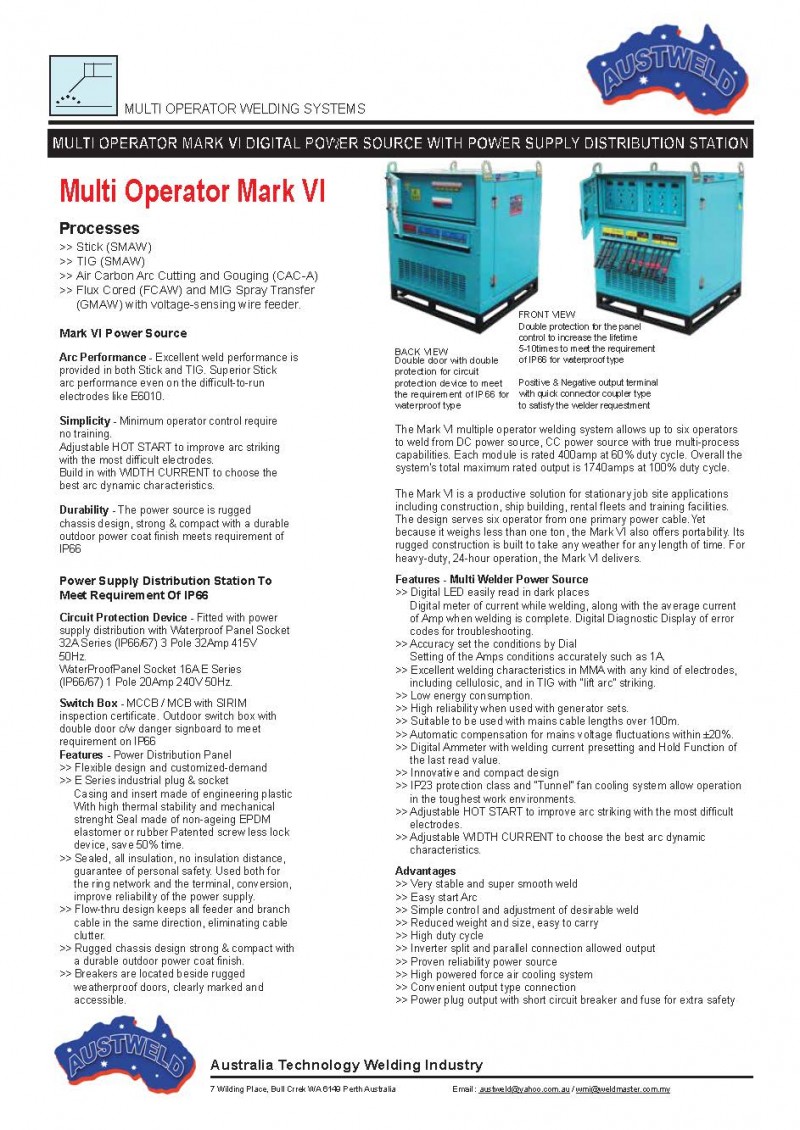

Mark VI_Page 1

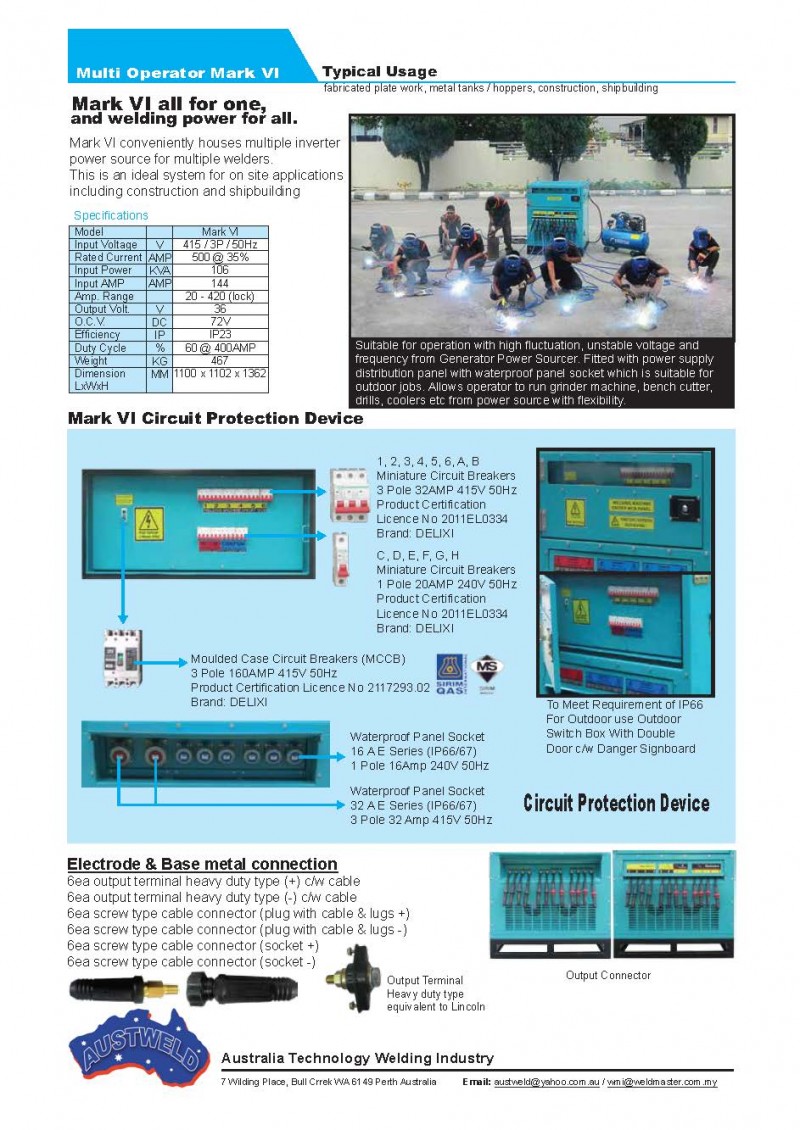

Mark VI_Page 2
