TQC Series Automatic Flow-Controlled Pump

 Automatic Flow-Controlled Pump
This TQC series most suitable to Install it below the water tower, to downward pressurization, When using the water; the pump will automatically start increase the pressure to supply water, when stop using the pump will automatically stop supply power and water。

Feature

1. Compact design and quiet operation make the TQC series suitable for many applications。

2. The TQC is constructed from the top quality corrosion resistant materials。

3. The motor has built-in thermal overload to protect against high operating temperatures and over current

Operating Condition

1. Ambient temperature: Max. +40°C
2. Liquid temperature: + 4°C ~ + 40°C
3. Pressure Range : Max. 6kg/cm²
4. Suction Pipes: Must run in positive pressure only a negative pressure unable to work the pump
5. Discharge Pipes: Must lower than water tower over 0.5-meter.

Specification 50Hz

Model	Power kW	Voltage  V	Amp's A	Inlet in.	Outlet in.	Maximum Pressure kg/cm²	Maximum Capacity L/min
TQC200	0.18	200~240	1.5	1"	1"	2.2	45
TQC400	0.37	200~240	3	1"	1"	3.0	75
TQC800	0.75	200~240	4.4	1"	1"	3.5	95

Specification 60Hz

Model	Power kW	Voltage  V	Amp's A	Inlet in.	Outlet in.	Maximum Pressure kg/cm²	Maximum Capacity L/min
TQC200	0.18	110/220	4.0/2.0	1"	1"	2.2	60
TQC400	0.37	110/220	6.0/3.0	1"	1"	2.8	70
TQC800	0.75	110/220	11/5.5	1"	1"	4.4	90

Dimension

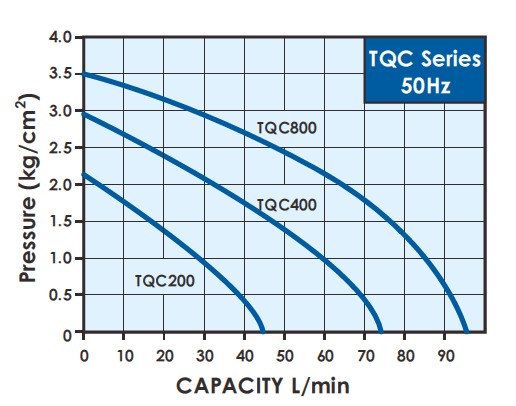

50Hz

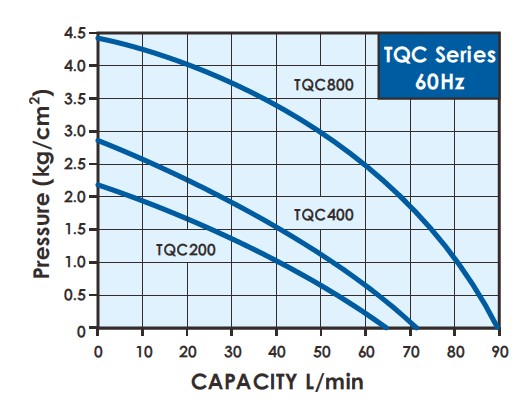

60Hz
