TQCN Series Hot Water Pump

Hot Water Pump
This TQCN series are designed for hot water supply (up to +90C) and pressure boosting in residential and commercial applications. They are suitable for solar energy hot water system or other types f hot water systems

Feature

1. The TQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.


2. Compact design and quiet operation make the TQCN series suitable for many applications.


3. The TQCN is constructed from the top quality corrosion resistant materials.


4. The motor has built-in thermal overload to protect against high operating temperatures and over current.


5. The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

6. Relief value will automatically release the pressure when the TQCN full system pressure exceeds 5kg/cm².

Operating Condition

1. Ambient temperature：Max. +40°C
2. Liquid temperature：+4°C~+90°C
3. Relief pressure value automatically：Max. 5 kg/cm²
4. Relative Humidity：Max. 85%(RH)
5. Before using the pump, be sure the inlet pressure setting is lower than factory pressure setting

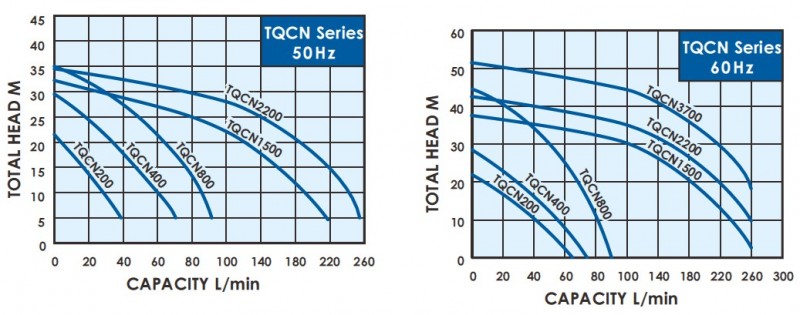

Specification, 50Hz

Type	Power kW	Phrase Ø	Volt  V	Amp's A	Preset Activation kg/cm²	Inlet in.	Outlet in.	Maximum Head M	Maximum Capacity L/min	N.W. kg
TQCN200	0.18	1	200~240	1.5	1.2	1"	1"	22	45	7.4
TQCN400	0.37	1	200~240	3	1.8	1"	1"	30	75	9.4
TQCN800	0.75	1	200~240	4.4	2.0	1"	1"	35	95	11
TQCN1500	1.5	1	200~240	7.2	2.5	2"	2"	32	230	28
		3	200~240	5.8
TQCN2200	2.2	1	200~240	11.1	2.5	2"	2"	34	250	31
		3	200~240	5.8



Specification, 60Hz

Type	Output kW	Phrase Ø	Volt  V	Amp's A	Preset Activation kg/cm²	Inlet in.	Outlet in.	Maximum Head M	Maximum Capacity L/min	N.W. kg
TQCN200	0.18	1	110/220	4.0/2.0	1.4	1"	1"	22	60	7.4
TQCN400	0.37	1	110/220	6.0/3.0	2.0	1"	1"	28	70	9.4
TQCN800	0.75	1	110/220	11/5.5	2.5	1"	1"	44	90	11.6
TQCN1500	1.5	1	220	9.5	3.0	2"	2"	37	270	28
		3	220	6.5
TQCN2200	2.2	3	220	9.5	3.0	2"	2"	42	270	31
TQCN3700	3.7	3	220	13.5	3.0	2"	2"	52	270	31.5



Dimensions
