TPH Series Multistage Centrifugal Pump

Application:
The WALRUS TPH Series is horizontal multistage centrifugal pump, suitable for clean water/liquid without abrasive matters. The applications are versatile, such as pressure boosting, transfer, circulation, and machinery. - Industrial circulation system - Washing/cleaning system - Pressure booster system - Water/liquid transfer - Agricultural irrigation

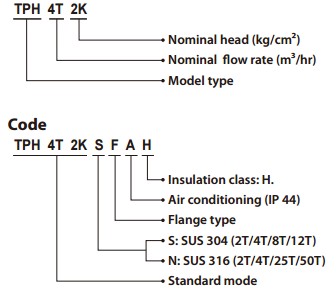

Standard Mode:

Operations Conditions:
1. Ambient temperature :Max. +40°C
2. Liquid temperature range:+0°C ~ +90°C
3. Operating pressure:Max. 10 kg/cm²
4. Inlet pressure:Max. 6 kg/cm²

Pump Contruction:
Horizontal multistage centrifugal pump, non self-priming, co-axial pump/motor design, impellers mounted on extended motor shaft. Main working parts made by stainless steel.

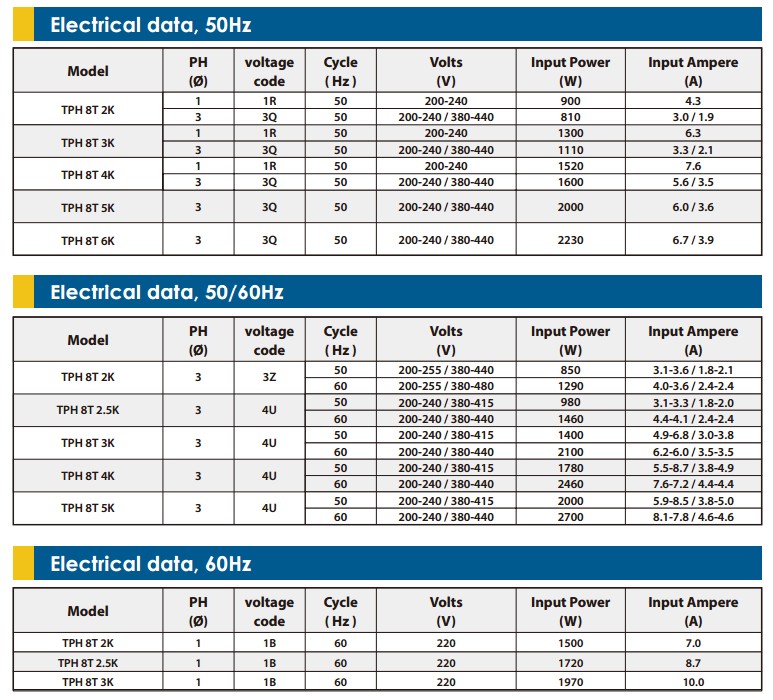

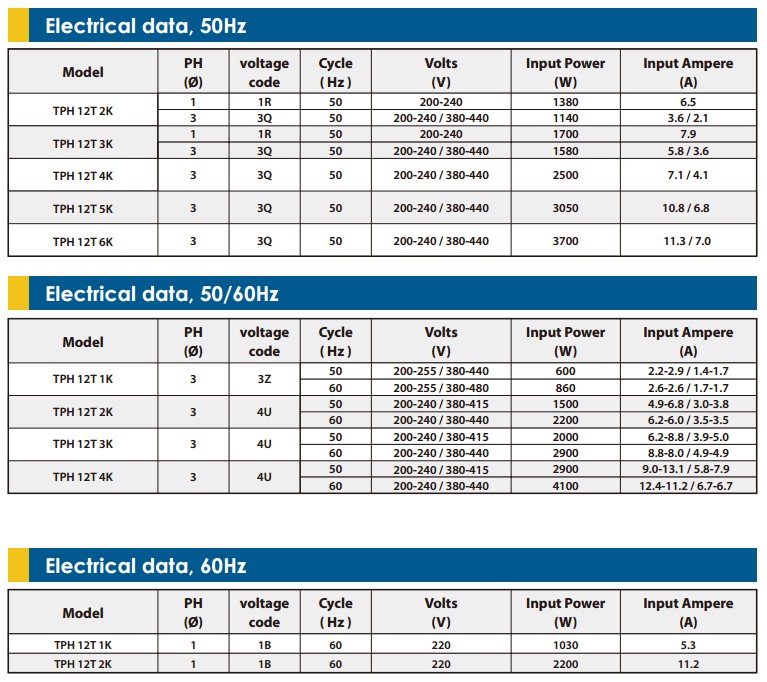

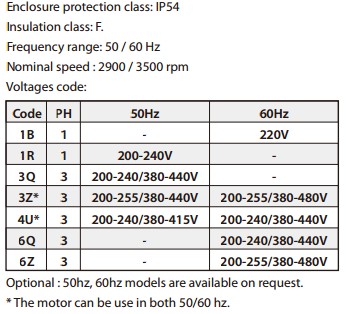

Motor:
