Application
The WALRUS TPK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry uids such as water, coolant, light oil and other clean, non aggressive matters.
- Industrial circulation system
- Washing/cleaning system
- Filtration system

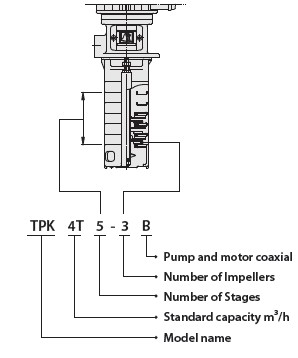

Model Code
Operating Condition
1. Ambient temperature :Max. +40°C
2. Liquid temperature range:+0°C ~ +90°C
3. Operating pressure:Max. 10 kg/cm²
4. Submerged depth :Min. 65mm

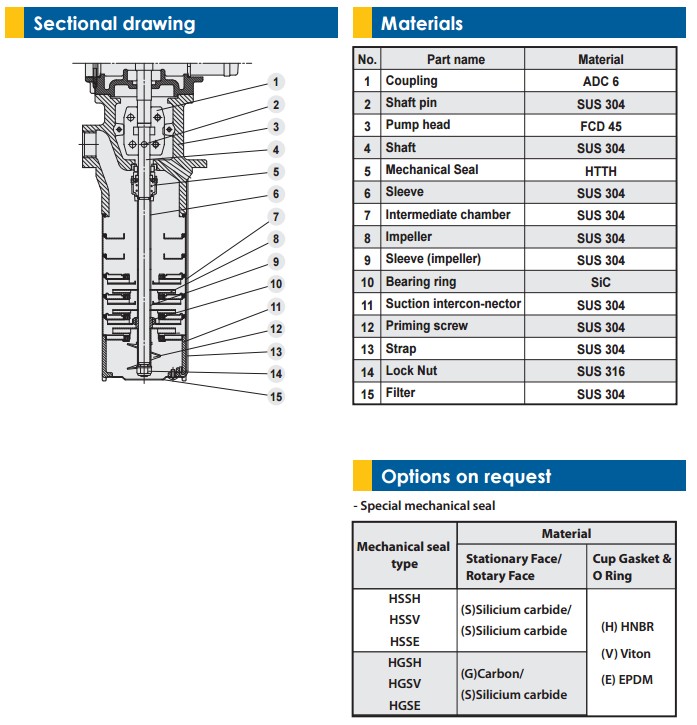

Pump Contruction
Submersible vertical multistage centrifugal pump, self-priming, stub pump shaft per coupling connect with motor. Main working parts made by stainless steel.
Mode
