TPHK Series Immersible Pump

 Application
The TPHK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools. It is suitable to carry uids such as water, coolant, light oil and other clean, non aggressive matters: - Industrial circulation system - Washing/cleaning system - Filtration system

Model code

Operating Conditions
1. Ambient temperature : Max. +40°C
2. Liquid temperature range : +0°C ~ +90°C
3. Operating pressure : Max. 10 kg/cm²
4. Submerged depth : Min. 65mm

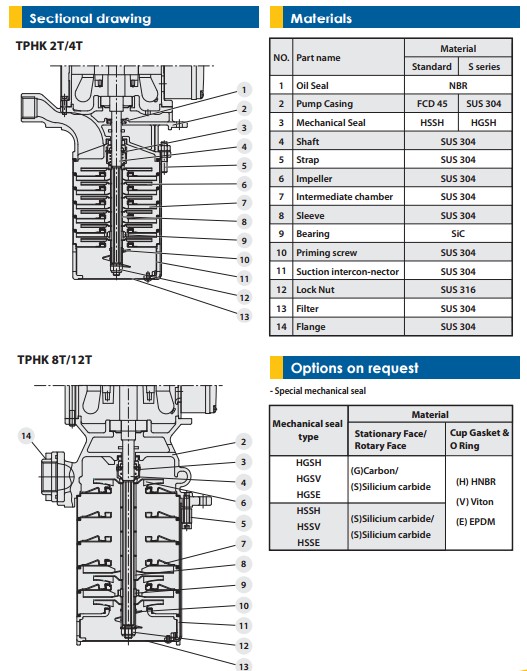

Pump Construction
Submersible vertical multistage centrifugal pump, self-priming, co-axial pump/motor design, impellers mounted on extended motor shaft. Main working parts made by stainless steel.

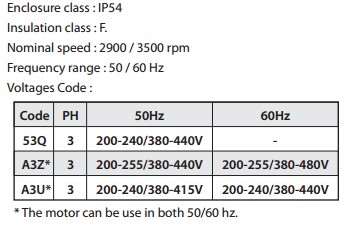

Motor
