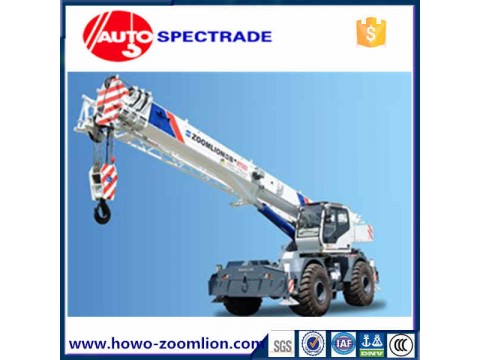

Truck Crane Offer of Zoomlion China low price in stockͼ1Truck Crane Offer of Zoomlion China low price in stockͼ2Truck Crane Offer of Zoomlion China low price in stockͼ3

Truck Crane Offer of Zoomlion China low price in stock

2015-06-30 19:571060 Inquiries
Price Negotiable
Delivery AsiaChinaWithin 3 days after payment
Brand Zoomlion
Insufficient stock for this product
Product Details
 QY220

A truck crane featuring full circle swinging, telescopic luffing jib and electro-hydraulic proportional control;
• The truck crane uses the special 6-axle chassis. Its key components are highly accurate, its weight is lighter than that of other 6-axle all-terrain cranes, its suspension is both simple and reliable, and its steering mode is effective, thus its operation and maintenance costs are reduced;
• Upgraded action control, ideal balance between operating speed, smoothness, and inching performance;
• Upgraded active and passive safety system ensures the safety of personnel, crane during construction.
• The revolutionary innovation of single-cylinder pinning mechanism of boom and telescopic control system, and the technological upgrading of chassis drive, suspension, and steering systems effectively ensures the high reliability and attendance rate of the crane and reduces its maintenance cost.
• Substantially meet the ergonomics requirements imposed by customer;

Type

Ser. No.

Item

Unit

Value

Working performance

1

Max. rated lifting weight × working radius

kg.m

220000×3.0

2

Max. lifting torque of basic boom

kN.m

7350

3

Max. lifting torque of longest main boom

kN.m

3567

4

Max. lifting height of longest main boom

m

67.5

5

Max. lifting height of jib

m

95.8/(104)

Dimensions

6

Outline dimensions (L×W×H)

mm

16830×3000×4000

7

Distance between outriggers (longitudinal × transversal)

mm

8250×8500

8

Main boom length (completely retracted – completely extended)

m

14.5~67

9

Jib length

m

12,20, 28,(36)

10

Main boom angle of elevation

°

-0.5~82

11

Swing range



360°continuously

Working speed

12

Max.speed of single rope on the drum of main winch

m/min

120

13

Boom extension time

s

840

14

Boom derricking up time

s

90

15

Swing speed

r/min

0~1.5

Mass

16

Complete vehicle kerb mass

kg

65805

17

Front axle load

kg

30000

18

Rear axle load

kg

36000

Traveling

19

Max. traveling speed

km/h

75
