PM Series

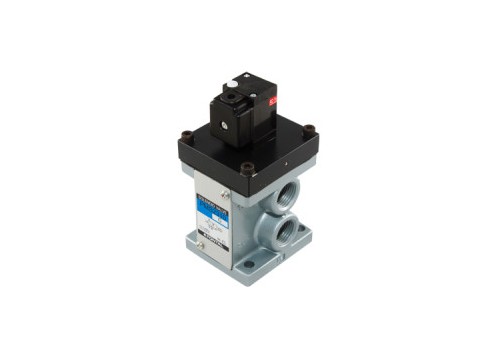

3/5 Port Solenoid Valve PM Series Features:
Main valve is of sleeve spool type with metal seal. Interface between sub-base and body is common to direct acting type solenoid valve A series
3/5 Port Pilot Operated Solenoid Valve PM6 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS246 |
5 |
Single |
2 |
Rc1/8 |
6.5 |
0.15~1
(1.5~10) |
|
PMD246 |
Double |
|
PMD346 |
3•Closed center |
|
PME346 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM6 Catalog
PM6 2D CAD
PM6 3D CAD
3/5 Port Pilot Operated Solenoid Valve PM06 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2306 |
3 |
Single |
2 |
Rc1/8,1/4 |
11 |
0.2~0.7 (2~7) |
|
PMS2406 |
5 |
12.5 |
0.2~0.8 (2~8) |
|
PMD2406 |
Double |
|
PMD3406 |
3•Closed center |
12 |
|
PME3406 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM06 Catalog
PM06 2D CAD
PM06 3D CAD
3/5 Port Pilot Operated Solenoid Valve PM08 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2308 |
3 |
Single |
2 |
Rc1/4,3/8 |
22 |
0.2~0.7 (2~7) |
|
PMS2408 |
5 |
30 |
0.2~0.8 (2~8) |
|
PMD2408 |
Double |
|
PMD3408 |
3•Closed center |
25 |
|
PME3408 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM08 Catalog
PM08 2D CAD
PM08 3D CAD
3/5 Port Pilot Operated Solenoid Valve PM10 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2310 |
3 |
Single |
2 |
Rc3/8,1/2 |
38 |
0.2~0.7 (2~7) |
|
PMS2410 |
5 |
50 |
0.2~0.8 (2~8) |
|
PMD2410 |
Double |
|
PMD3410 |
3•Closed center |
|
PME3410 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM10 Catalog
PM10 2D CAD
PM10 3D CAD
3/5 Port Pilot Operated Solenoid Valve PM15 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2315 |
3 |
Single |
2 |
Rc1/2,3/4 |
80 |
0.2~0.7 (2~7) |
|
PMS2415 |
5 |
75 |
0.2~0.8 (2~8) |
|
PMD2415 |
Double |
|
PMD3415 |
3•Closed center |
|
PME3415 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM15 Catalog
PM15 2D CAD
PM15 3D CAD
3/5 Port Pilot Operated Solenoid Valve PM25 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2325 |
3 |
Single |
2 |
Rc1 |
190 |
0.2~0.7 (2~7) |
|
PMS2425 |
5 |
Rc3/4,1,1¼ |
210 |
0.2~0.8 (2~8) |
|
PMD2425 |
Double |
|
PMD3425 |
3•Closed center |
195 |
|
PME3425 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
PM25 Catalog
PM25 2D CAD
PM25 3D CAD

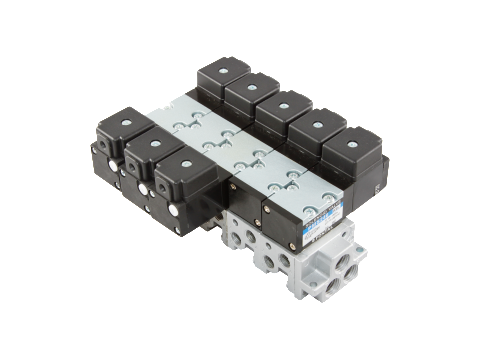

Individual Wiring Type Manifold MF☐-C
.
| Type of Manifold | MF☐-CC6 | MF☐-CS6 | MF☐-CC06 | MF☐-CC08 | MF☐-CC10 | MF☐-CC15 | MF☐-CC25 |
| common SUP, common EXH | common SUP, captured EXH | common SUP, common EXH | common SUP, common EXH | common SUP, common EXH | common SUP, common EXH | common SUP, common EXH |
| Port size | Port 1 |
Rc⅛, ¼ |
Rc⅛, ¼ |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 3, 5 |
Rc⅛ |
Rc¼(1 place) |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 2, 4 |
Rc⅛ |
Rc⅛ |
Rc⅛, ¼ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc¾, 1 |
| Number of stations | 2~20 |
| Mountable Solenoid Valve | PMS246-NB
PMD246-NB
PMD346-NB
PME346-NB | PMS2406-NB
PMD2406-NB
PMD3406-NB
PME3406-NB | PMS2408-NB
PMD2408-NB
PMD3408-NB
PME3408-NB | PMS2410-NB
PMD2410-NB
PMD3410-NB
PME3410-NB | PMS2415-NB
PMD2415-NB
PMD3415-NB
PME3415-NB | PMS2425-NB
PMD2425-NB
PMD3425-NB
PME3425-NB |
| Blank plate | CC6~BP | CC06~BP | CC08~BP | CC10~BP | CC15~BP | CC25~BP |
| Type of Manifold | MF☐-CI6 | MF☐-CI06 | MF☐-CI08 | MF☐-CI10 | MF☐-CI15 | MF☐-CI25 |
| common SUP, individual EXH | common SUP, individual EXH | common SUP, individual EXH | common SUP, individual EXH | common SUP, individual EXH | common SUP, individual EXH |
| Port size | Port 1 |
Rc⅛, ¼ |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 3, 5 |
Rc⅛ |
Rc⅛ |
Rc¼, ⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 2, 4 |
Rc⅛ |
Rc⅛, ¼ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc¾, 1 |
| Number of stations | 2~20 |
| Mountable Solenoid Valve | PMS246-NB
PMD246-NB
PMD346-NB
PME346-NB | PMS2406-NB
PMD2406-NB
PMD3406-NB
PME3406-NB | PMS2408-NB
PMD2408-NB
PMD3408-NB
PME3408-NB | PMS2410-NB
PMD2410-NB
PMD3410-NB
PME3410-NB | PMS2415-NB
PMD2415-NB
PMD3415-NB
PME3415-NB | PMS2425-NB
PMD2425-NB
PMD3425-NB
PME3425-NB |
| Blank plate | CC6~BP | CC06~BP | CC08~BP | CC10~BP | CC15~BP | CC25~BP |
MF☐-C Catalog
MF☐-C 2D CAD
MF☐-C 3D CAD
