・Increase in an air flow capacity due to lower pressure dro contributing to energy saving Flow capacity: 14.5 m3/min (ANR) Increased by up to 20% compared with the current model Pressure drop: 5 kPa or less ・Lightweight: Max. 52% lighter (10.5kg→5.0kg) Light body weight to thinner stainless steel bowl. ・Space-saving design, Labor-saving in piping! Water droplets and solid particles can be removed with just one AFF. A separate filter for removing water droplets (water separator, AMG series) is not necessary any more. Space and piping work are reduced. ・Easier replacement of the element Stopper function prevents the bowl from falling.

Main Line Filter AFF

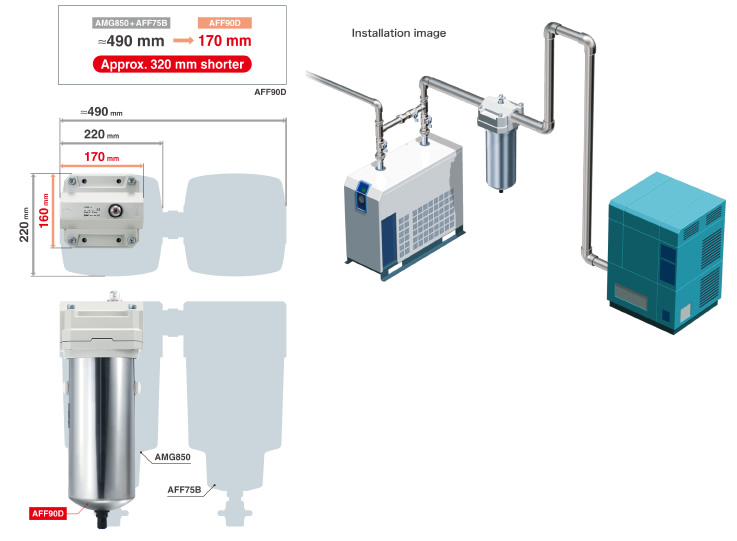

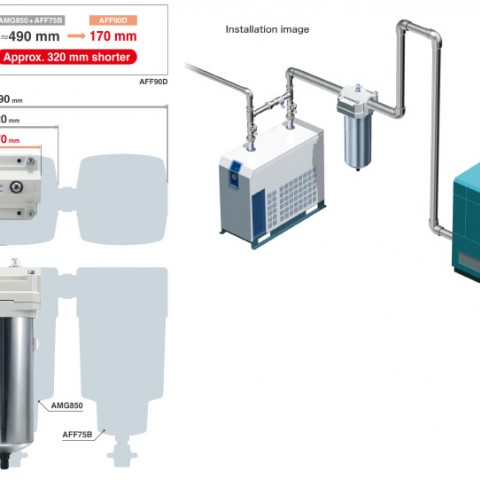

■Space-saving design, Labor-saving in piping!

Water droplets and solid particles can be removed with just one AFF. A separate filter for removing water droplets (water separator, AMG series) is not necessary any more. Space and piping work are reduced.

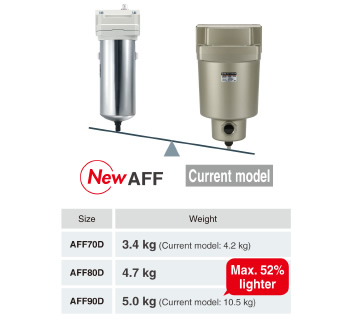

■Lightweight

Light body weight to thinner stainless steel bowl.
Easier installation.

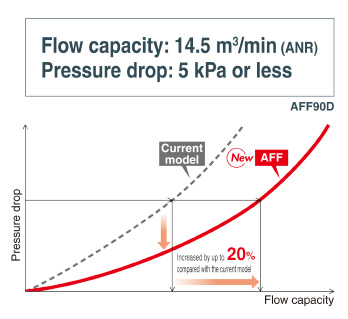

■Increase in an air flow capacity due to lower pressure drop contributing to energy saving

Flow capacity: 14.5 m³/min (ANR)
Pressure drop: 5 kPa or less

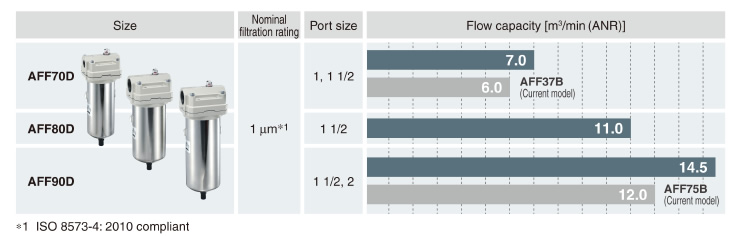

■3 sizes are available.

Model with 11.0 m³/min flow capacity added. More choices available depending on the flow rate of customer.

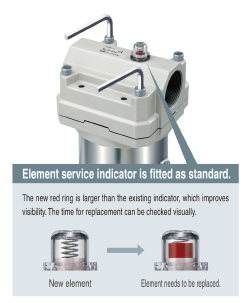

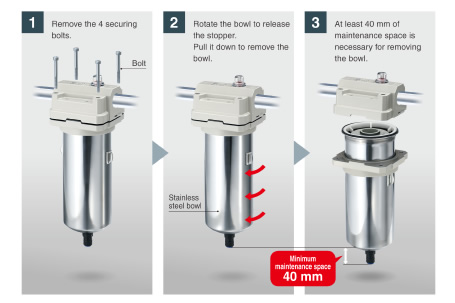

■Easier replacement of the element

The bowl does not fall even if the bolts are removed.

It is not necessary to hold the bowl for removing the bolts. Safe and secure mounting and removing of the bowl with both hands is possible.
The lightweight stainless bowl with reduced thickness means easier element replacement.

Possible to remove the bolts from the same direction (front)

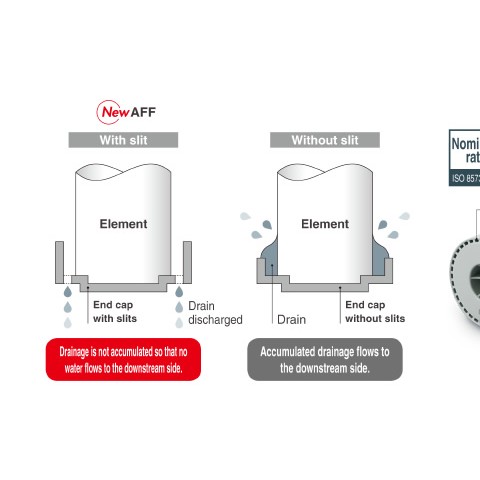

■An end cap with slits is used for the element.

The end cap with slits eliminates the accumulation of drain water.
Even high velocity fluid is not spattered. Results in compact bowl design.
