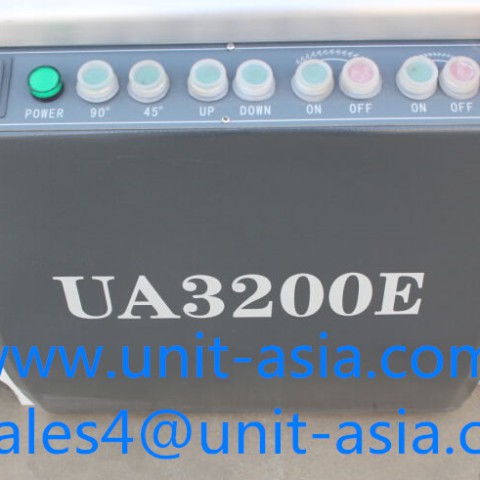

UA3200E Panel Saw With Electric Tilting

TECHNICAL DATA

Dimension of sliding table	3200x415mm
Gross cutting capacity	3200mm
Width of cutting between saw blade and rip fence	1300mm
Main Saw blade diameter	250-350mm
Height of Main saw cutting	70mm
Speed of main saw spindle	6000rpm
Spindle diameter	30mm
Degree of cutting	45°
Main motor	5.5kw
Diameter of scoring saw blade	120mm
Speed of scoring saw spindle	8000rpm
Diameter of Scoring saw spindle	20mm
Scoring motor	1.1KW
Installation Overall size	30503500900mm
Net weight	850kg

Price	RMB2895.00
Delivery	AsiaChinaPre-sale, Within 15 days after payment
Brand	UNITED ASIA
Color	Customized
Package	standard seaworthy package
Deliverly	Within 10 working days after deposit payment
Stock	2000setMin order 1set

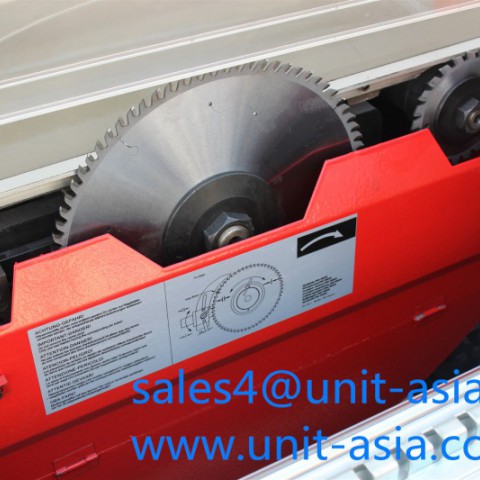

Panel Saw Electric Tilting
