Electronic Pressure Switches/Sensors (Self-contained Type)
Add to My List

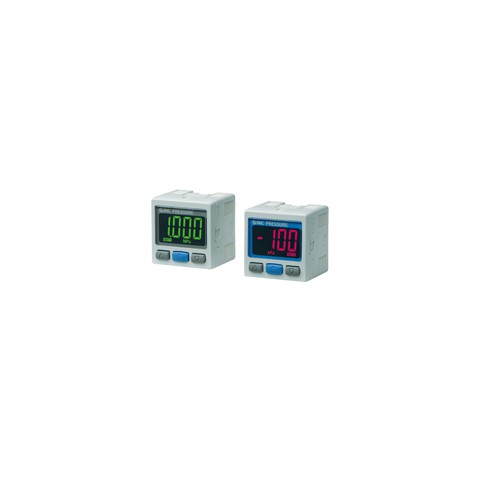

3-Screen Display High-Precision Digital Pressure
Switch ZSE20□(F)/ISE20□
 | ・Visualization of Settings
・Simple 3-Step Setting
・Easy Screen Switching
Setting is possible while checking the measured value.
・Delay Time :1.5 ms or less
・Current Consumption : 25 mA or less
・IO-link correspondence |
|
|
| Series | Output type | Type | Rated pressure range | Enclosure | Applicable fluid |
|---|
ZSE20（F）
ISE20 | 1 output | Compound pressure
Vacuum pressure
Positive pressure | −100.0～100.0kPa
0.0～−101.0kPa
−0.100～1.000MPa | IP40 | Air |
ZSE20A（F）
ISE20A | 2 outputs
Analog output
(Voltage/Current) | Compound pressure
Vacuum pressure
Positive pressure | −100.0～100.0kPa
0.0～−101.0kPa
−0.100～1.000MPa | IP40 | Air |
ZSE20B（F）
ISE20B-（L） | 2 outputs
Analog output
(Voltage/Current)
IO-link/Switch: 1 output | Compound pressure
Vacuum pressure
Positive pressure | −100.0～100.0kPa
0.0～−101.0kPa
−0.100～1.000MPa | IP65 | Air |
ZSE20C（F）
ISE20C（H） | 2 outputs
Analog output
(Voltage/Current) | Compound pressure
Vacuum pressure
Positive pressure | −100.0～100.0kPa
0.0～−101.0kPa
−0.100～1.000MPa
−0.100～2.000MPa | IP65 | General fluids |

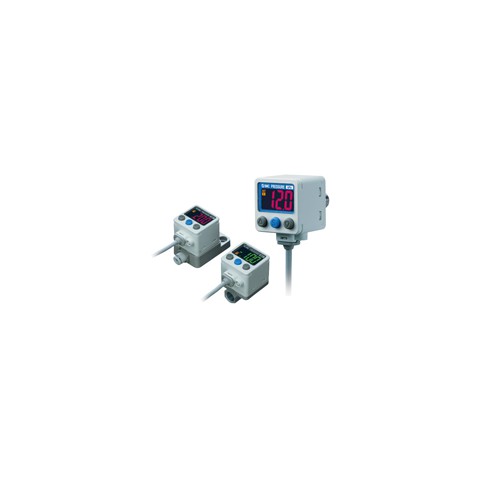

2-Color Display High-Precision Digital Pressure Switch ZSE30A（F）/ISE30A
 | ・With one-touch fitting (Straight, Elbow)
・Space-saving, capable of vertical and horizontal contact mounting
・With display calibration function
・Simultaneous copying is possible for maximum 10 units. |
|
|
| Series | Type | Rated pressure range |
|---|
| ZSE30AF | Compound pressure | －100.0 to 100.0kPa |
| ZSE30A | Vacuum pressure | 0.0 to －101.0kPa |
| ISE30A | Positive pressure | －0.100 to 1.000MPa |
2-Color Display High-Precision Digital Pressure Switch (for Low Pressure) ZSE30AF-X576～X580
 | ・Able to detect and display pressures of 10 kPa or less
・Can copy to up to 10 switches simultaneously
Reduced setting time, Minimized risk of setting mistakes
・3-step setting
・With display low-cut function (zero-cut function)
“0” is displayed within the effective range. |
|
|
| Series | Type | Rated pressure range |
|---|
| ZSE30AF-X576 | Compound pressure | –500 to 500Pa |
| ZSE30AF-X577 | Compound pressure | –1.00 to 1.000kPa |
| ZSE30AF-X578 | Compound pressure | –2.00 to 2.00kPa |
| ZSE30AF-X579 | Compound pressure | –5.00 to 5.00kPa |
| ZSE30AF-X580 | Compound pressure | –10.00 to 10.00kPa |
2-Color Display High-Precision Digital Pressure Switch ZSE40A（F）/ISE40A
 | ・IP65
・Applicable fluid: Air, Non-corrosive gas, Non-flammable gas
・Simultaneous copying is possible for maximum 10 units.
・3-step setting
・With One-touch fitting |
|
|
| Series | Type | Rated pressure range |
|---|
| ZSE40AF | Compound pressure | －100.0 to 100.0kPa |
| ZSE40A | Vacuum pressure | 0.0 to －101.3kPa |
| ISE40A | Positive pressure | －0.100 to 1.000MPa |
Compact Digital Pressure Switch ZSE10（F）/ISE10
 | ・Low profile 9.8 mm
・Vertical mounting space reduced to approx. 1/2
(Compared to ZSE/ISE30A series)
・Simultaneous copying is possible for maximum 10 units.
・3-step setting |
|
|
| Series | Type | Rated pressure range |
|---|
| ZSE10F | Compound pressure | －100.0 to 100kPa |
| ZSE10 | Vacuum pressure | 0.0 to －101.0kPa |
| ISE10 | Positive pressure | －0.100 to 1.000MPa |
3-Screen Display High-Precision Digital Pressure Switch ISE7□/7□G
| ・It is possible to change the settings while checking the measured value.
・IO-link
・Angled display
Good visibility from various mounting positions
・Rotating display
Display can rotate 336 degrees after installation
・Applicable fluid：Air, Non-corrosive gas, Non-flammable gas (ISE70/71)
：Liquid or gas that will not corrode materials of parts
in contact with fluid (ISE7□G) |
|
|
| Series | Type | Rated pressure range |
|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE71 | Positive pressure (For air) | 0 to 1.6MPa |
| ISE70G | Positive pressure (For general fluids) | 0 to 1MPa |
| ISE75G | Positive pressure (For general fluids) | 0 to 2MPa |
| ISE76G | Positive pressure (For general fluids) | 0 to 5MPa |
| ISE77G | Positive pressure (For general fluids) | 0 to 10MPa |
2-Color Display Digital Pressure Switch ISE70/75（H）
| ・metal body type (Aluminum die-casted)
・IP67
・With M12 connector
∗ The ISE70 series was remodeled in April 2018.
Please select the ISE70-□-L2 series.
∗ The ISE75 series was remodeled in July 2018.
Please select the ISE77G series.
∗ The sale of the ISE75H series is continued. |
|
|
| Series | Type | Rated pressure range |
|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE75 | Positive pressure (For general purpose fluids) | 0 to 10MPa |
| ISE75H | Positive pressure (For general purpose fluids) | 0 to 15MPa |
2-Color Display Digital Pressure Switch ZSE80（F）/ISE80（H）
 | ・Suitable for a wide variety of fluids with stainless diaphragm
・IP65
・RoHS compatible
・Low leakage. Face seal, Compression fittings can be selected.
・Back piping, underside piping |
|
|
| Series | Type | Rated pressure range |
|---|
| ZSE80F | Compound pressure | －100.0 to 100.0kPa |
| ZSE80 | Vacuum pressure | 0.0 to －101.0kPa |
| ISE80 | Positive pressure | －0.100 to 1.000MPa |
| ISE80H | Positive pressure | －0.100 to 2.000MPa |
Air Checker: Electronic Pressure Switch PS1000/1100/1200
 | ・Plug-in port for One-touch fittings.
・With LED light. |
|
|
| Series | Type | Set pressure range |
|---|
| PS1000 | Positive pressure | －0.1 to 0.45MPa |
| PS1100 | For vacuum/residual pressure | －0.1 to 0.4MPa |
| PS1200 | For vacuum | －100 to 0kPa |
LCD Readout Digital Pressure Switch ZSE3/ISE3
 | ・Built-in failure prediction output function.
・Can be integrated with a vacuum unit, Series ZX.
・Suction filter comes as standard.
∗ The ZSE3/ISE3 series has been remodeled in June 2019.
Please select the ZSE/ISE10 series, ZSE/ISE20A series. |
|
|
| Series | Type | Set pressure range |
|---|
| ZSE3 | Vacuum pressure | 0 to －101kPa |
| ISE3L | Positive pressure | 0 to 98kPa |
| ISE3 | Positive pressure | 0 to 0.98MPa |
Compact Pressure Switch ZSE1/ISE1
| ・Can be integrated with ZM ejector system. |
|
|
| Series | Type | Set pressure range |
|---|
| ZSE1 | Vacuum pressure | 0 to －101kPa |
| ISE1L | Positive pressure | 0 to 100kPa |
| ISE1 | Positive pressure | 0 to 1MPa |
Compact Pressure Switch ZSE2/ISE2
 | ・Can be integrated with ZX or ZR ejector system.
・Suction filter comes as standard. |
|
|
| Series | Type | Set pressure range |
|---|
| ZSE2 | Vacuum pressure | 0 to －101kPa |
| ISE2L | Positive pressure | 0 to 100kPa |
| ISE2 | Positive pressure | 0 to 1MPa |
3-Color Display Digital Gap Checker ISA3
| ・Check at a glance if the workpiece is placed or not
・The clearance distance between the detection surface and the workpiece can be
found intuitively.
・Simple Setting: Setting is possible while checking the displayed value
・Energy Saving: Air consumption 60% reduction
・Improved drainage resistance: 10 times or more |
|
|
| Series | Rated distance range | Piping specification Supply side | Piping specification Detection side |
|---|
| ISA3-F | 0.01 to 0.03 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-G | 0.02 to 0.15 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-H | 0.05 to 0.30 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
IO-link Compatible 3-Screen Display Digital Gap Checker ISA3-L
 | ・Monitoring the p lac ement condition of the workpiece
Indic ate s failure / abnormality
・Double sensor providing improved preventive and
predictive maintenance (IoT) based on IO-link
Process data provides Displayed value,
Outlet pressure and Supply pressure value .
・NPN/PNP Switch Function
・3-Screen Display (Setting)
・Window Comparator Type
・Zero cut-off range can be changed. |
|
|
| Series | Rated distance range | Piping specification Supply side | Piping specification Detection side |
|---|
| ISA3-F□L | 0.01 to 0.03 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-G□L | 0.02 to 0.15 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
| ISA3-H□L | 0.05 to 0.30 mm | Rc, G 1/8 | φ4, φ6 One-touch fitting, G 1/8 |
Digital Pressure Switch (Built-in Regulator Type) ISE35
 | ・Modular type mountable
・Series ARM10/11 mountable
・Selectable pressure unit
・With anti-chattering function
・Power-saving mode |
|
|
| Series | Type | Recommended nozzle dia. |
|---|
| ISE35 | Positive pressure | －0.1 to 1MPa |
Digital Pressure Sensor GS40
| ・A pressure switch function has been added to the gauge with a
digital display. |
|
|
| Series | Set pressure (MPa) |
|---|
| GS40 | 0 to 0.98 |
