Rotary Actuator with Auto Switch Rack & Pinion Style

1) Size 30 -Basic Style

-Foot Style

2) Size 50, 63, 80, 100 - Basic Style

- Foot Style

- Flange Style

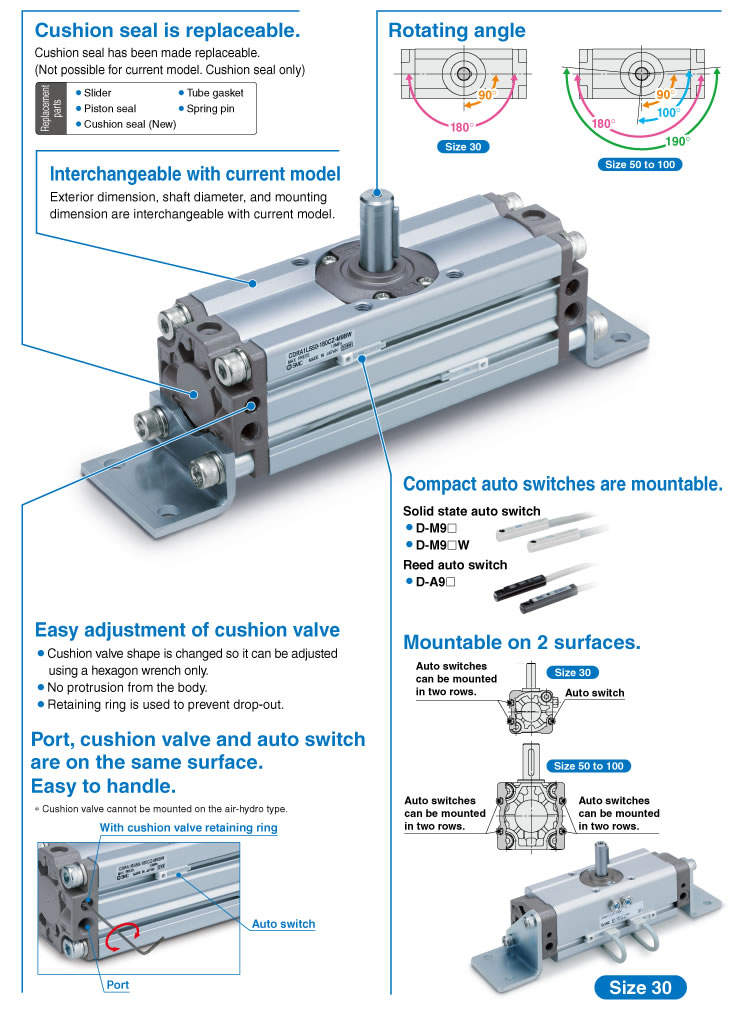

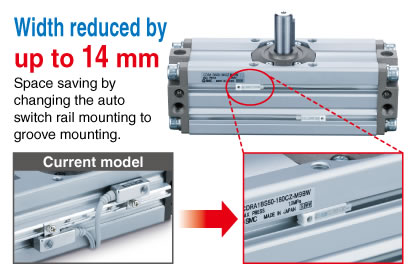

■Compact auto switches are mountable.

Compact auto switches are mountable.(D-M9□)

Compact auto switches are mountable
on 2 surfaces.

Auto switch can be mounted from the front.

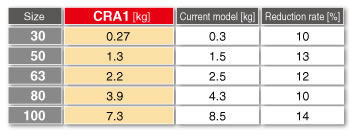

■Weight is reduced by up to 14%, Mounting interchangeable with the current model.

Lightweight body by changing the body and the cover shape.

■Cushion, Rotating angle

Rotating angle 90°, 100°, 180°, 190°

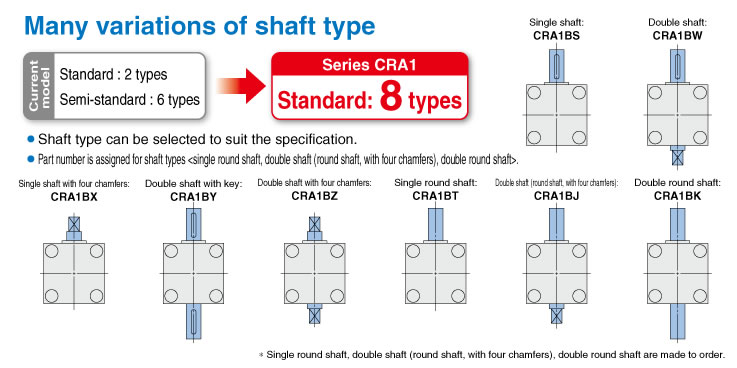

■Many variations of shaft type

Standard: 8 types (Current model/Standard : 2 types, Semi-standard : 6 types)

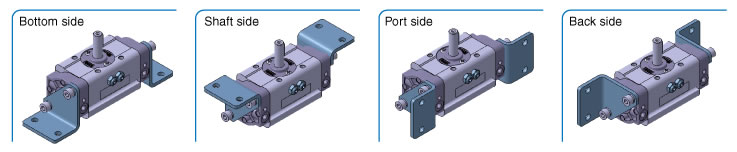

■Mounting suitable for operating conditions is possible.

Foot bracket can be mounted at a desired position.
(Foot bracket is included in the rotary actuator at shipment.)

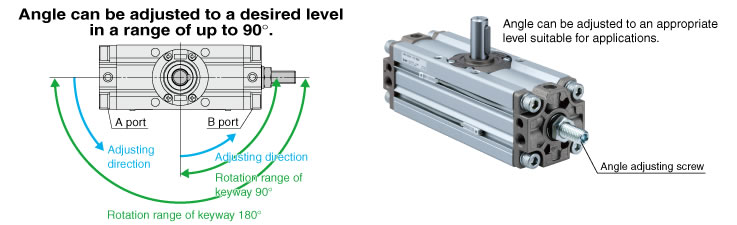

■Angle adjustable type

Angle can be adjusted to a desired level in a range of up to 90°.

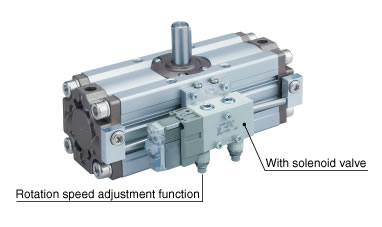

■With solenoid valve

・Solenoid valve and rotation speed adjustment function are integrated.
・Part number is set for the angle adjustable type.

Price	Negotiable
Delivery	MalaysiaSelangorSubang JayaWithin 3 days after payment
Brand	SMC,CKD,GENTLE,JUFAN,CHANTO,UNIMECH,NCD,MINDMAN,KOGANEI,PARKER
	Insufficient stock for this product

Rotary Actuator CRA1/CDRA1
