■Allowable moment of inertia 3 times higher

Allowable moment of inertia is the same as the heavy-duty MK2 series.

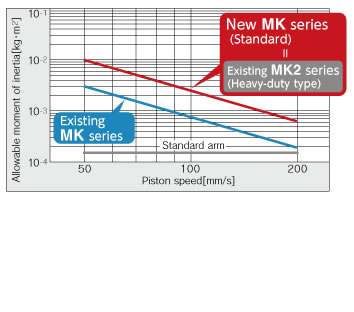

Allowable Moment of Inertia (32 mm, 40 mm)

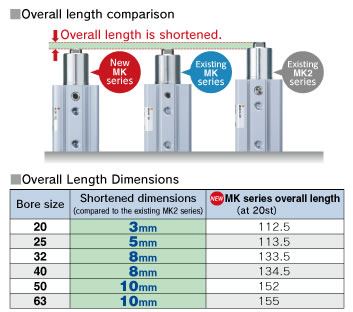

■Overall length is shortened.(equivalent to the MK series)

3 to 10 mm shorter than the MK2 series,
making the product more compact.

■Consolidated to the New MK series and renewed!

Overall length is the same as the existing products!
Mounting dimensions are interchangeable with the MK series.

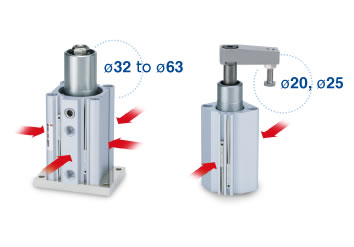

■Possible to mount small auto switches on 4 surfaces

・Auto switches can be mounted on any of the 4 surfaces to suit the installation conditions
(2 surfaces for 20 mm、 and 25 mm).
・No projection of auto switch

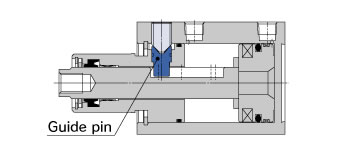

■Maintenance can be performed for all sizes.

Seal kit and guide pin are replaceable.

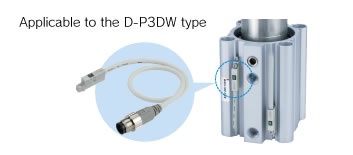

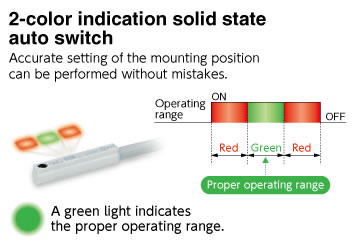

■Magnetic field resistant auto switch can be used.

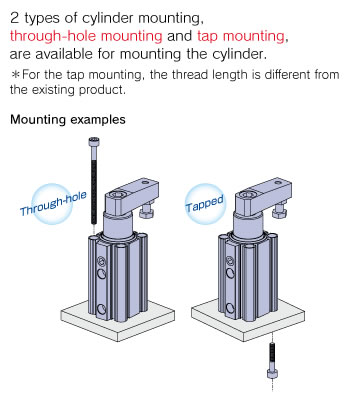

■Mounting method

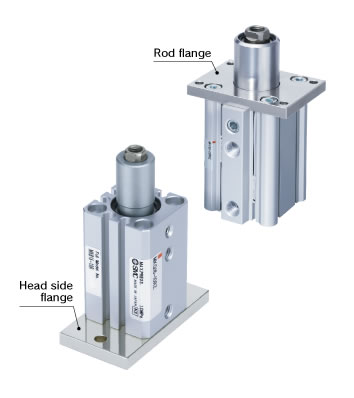

Flange mounting

Direct mounting

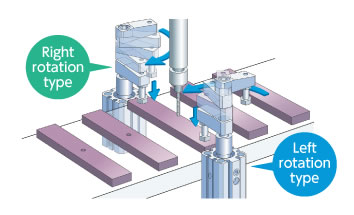

■Clamping rotary direction can be selected from 2 types.

Clamping rotary direction can be selected to suit the setting conditions.

Price	Negotiable
Delivery	MalaysiaSelangorSubang JayaWithin 3 days after payment
Brand	SMC,CKD,GENTLE,JUFAN,CHANTO,UNIMECH,NCD,MINDMAN,KOGANEI,PARKER
	Insufficient stock for this product

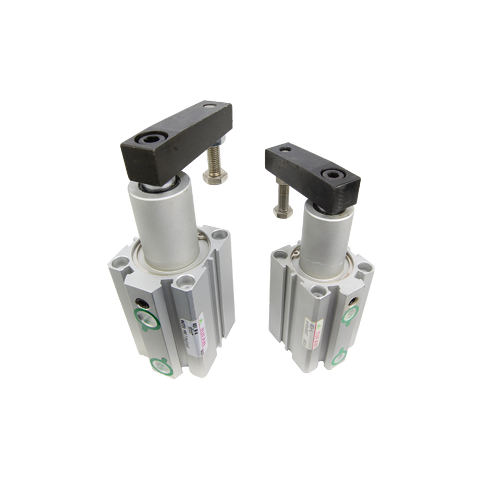

Rotary Clamp Cylinder MK
