Control Cable

Voltage: 0.45/0.75KV

Model: KVV KVVR...

Product name:

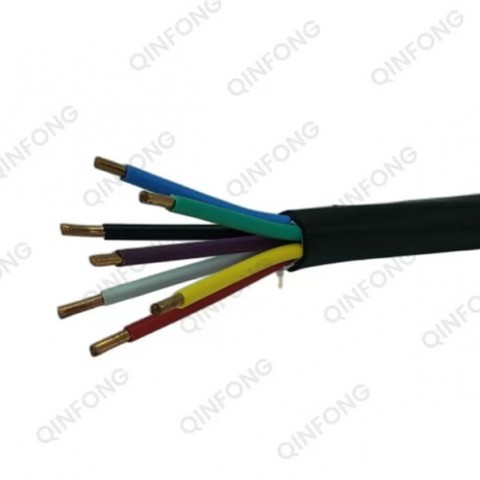

Copper Core PVC Insulated PVC Sheathed Control Cable

Conductor allowable operating temperature:90℃ (crosslinked polyethylene insulation), 70℃ (polyvinyl chloride insulation)

Cable laying temperature: Not lower than 0℃.

Conductor material:Oxygen-free copper/multi-strand soft core copper wire

Insulation material: PVC

Applications:

Control cables are usually used as connection lines for control systems, signal transmission systems, protection and measurement systems.

Allowable bending radius of cable installation:

(1) Unarmored cable, should be less than 6 times the outer diameter of the cable

(2) The cable with armored or copper tape shielding structure should not be less than 12 times the outer diameter of the cable

(3) The flexible cable with a shielded layer structure should not be less than 6 times the outer diameter of the cable

As a premier Control Cable Manufacturer, Qinfeng emphasizes understanding these differences to ensure the safety and efficiency of your power systems and engineering projects. Trust our expertise to help you make the right choice for your application.
