Material

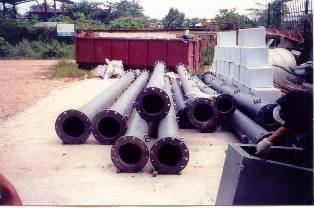

The COTEO NP GRE Pipe and Fittings are made of high strength fiberglass and epoxy resin.
These materials provide optimal strength and excellent quality to cater for aggressive working environment, for example, transfer of corrosive media, fluid in high temperature and etc.
Production
Auto-controlled machine manufactures the product on a mandrel in a cross section filament winding process. Continuous glass fibers are wound at a specific helical angle with application of rich epoxy resin.
Comparing to the conventional hand lay piping systems; this process ensures a consistent production of the highest quality.
Benefits
COTEO NP GRE Piping System combines many advantages in one product. It is a corrosion free material. Coating, chemical inhibitor, cathodic protection and corrosion allowances are not required.
It ensures low energy losses due to low thermal conductivity; and low friction with smooth inner surface.
With absence of rust particles or corroded substances, service life of the equipment connected to such piping is extended.
Industries
PetroChemical/ Power Generation/ Refinery
Marine & Aviation
Agriculture & Fertilizing
Food & Water Processing
Public Utilities
Semi-Con & Wafer Fabrication
metal Finishing
Application
Water and Wastewater System
Utility Networking
Exhaust System
Secondary Containment
Electrical Conduit Line
Material Handling System
Pipe Size: 80mm - 2000mm
Maximum Working Temperature: 110°C
Standard Length: 3M, 5M and 6M
Manufacturing Standard: PTS, DEP, BS, ASTM, NBS, etc
Joining System: Laminated and Flange
Fitting: Elbow, Tee, Cross, Reducer and Specials
|
