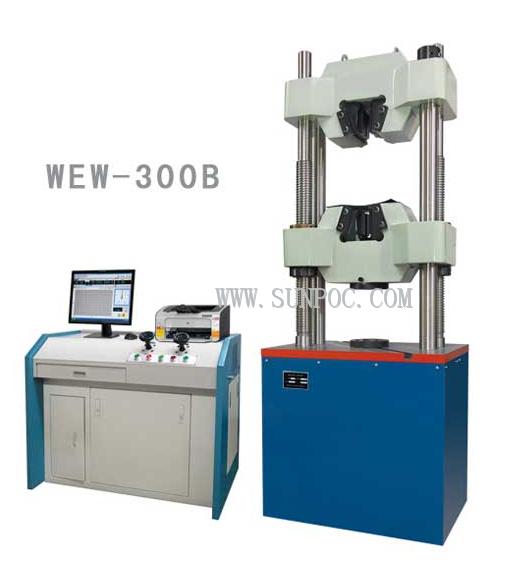

The series universal testing machine is economy and practical. The machine can be used for the stretching,compressing,bending and shearing tests for
The principal machine is compact, economical and practical;
With underneath oil cylinder , fixing gap guilding, simple and reliable；
Protective rubber sheet, prevent foreign body fall into the slide, and protect the jaw clamp and reduce the friction；
A bending bearing directly connect with the worktable, increase the testing space
Motor driver sprockets, chain drives, adjust the space；
Microcomputers table in the source server and electric control cabinet, functional integration of beauty；
A specialized card, full digital and controlling system can draw force- distortion, force-time curves.
The height of the principle is low, which is in favor of transportation and installation of the machine.
|
Technical indexes |
WEW-100B |
WEW-300B |
WEW-600B |
WEW-1000B |
|
Maximum test force(kN) |
100 |
300 |
600 |
1000 |
|
Valid measurement range of test force |
2%~100%FS |
|||
|
Test force accuracy |
±1% |
|||
|
Deformation measuring devices |
Extensometer |
|||
|
Valid measurement range of deformation |
2%~100%FS |
|||
|
Deformation measurement accuracy |
±0.5% |
|||
|
Moving measuring |
Optical encode, resolution:0.01mm |
|||
|
Piston stroke（mm） |
150 |
150 |
150 |
150 |
|
Tensile Testing space（mm） (including Piston stroke) |
520 |
520 |
520 |
620 |
|
solidity Testing space（mm） |
420 |
420 |
420 |
520 |
|
Testing space move system |
General Motors, sprocket chain drive |
|||
|
The distance between columns(mm) |
460 |
460 |
450 |
510 |
|
Overload protection |
2%-5% |
|||
|
Holding diameter of round specimen (mm) |
Ф4~Ф20 |
Ф10~Ф32 |
Ф13~Ф40 |
Ф13~Ф60 (St Ф13~Ф40) |
|
Holding thickness of flat specimen (mm) |
0~15mm |
0~15mm |
0~30mm (St 0~15) |
0~40mm (St 0~20) |
|
Holding wide of flat specimen（mm） |
75 |
75 |
80 |
125 |
|
Press plate size （mm） |
Ф100 |
Ф120 |
Ф160 |
204x204 |
|
distance of bending support（mm） |
30-400 |
30-400 |
30-500 |
40-500 |
|
The width of Bending Roll support（mm） |
140 |
|||
|
Bending curvature（mm） |
100 |
100 |
100 |
130 |
|
Clipping sample diameter（optional）（mm） |
Ф10 |
Ф10 |
Ф10 |
|
|
Pump motor power (kw) |
2.2 |
|||
|
Beam motor power (kw) |
0.37 |
0.37 |
0.37 |
0.55 |
|
External dimension（mm） |
730*570*1845 |
730*570*1845 |
730*570*1900 |
850*665*2340 |
|
Control box size（mm） |
|
1020*620*810 |
||
|
Weight (kg) |
2000 |
2000 |
2000 |
3000 |
|
Power supply |
|
380V 50 Hz |
||
