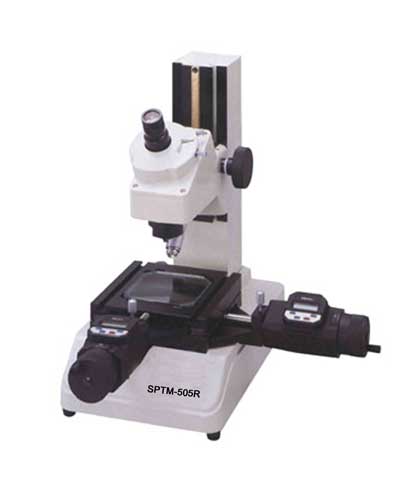

These SPTM-505R Tool Maker’s Microscope is an excellent measuring instrument for non-contact inspection and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line, and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor to be a 2D vision system.
Model: SPTM-505R
X-Y Axis Travel: 50 x 50 mm
Max. Working Height: 115mm
Max. Loading Weight: 5KG
Measuring Head: Origin Mitutoyo Electronic Measuring Head
Resolution of Measuring Head: 0.001mm
Machine Head: Monocular (Aimer is adjustable)
Angle Dial: Rotary Angle: 360°; Minimum Angle Reading: 6′
Eyepiece (176-116): 15X view diameter: 13mm
Objectives(176-138): 2X working diameter: 67mm
Total Magnification: 30X
