Multithead multihole drilling machine

Air suction motor power	P2=4kw	Motor power	P=1.5x16kw=24kw
Drilling length	L=2440mm	Hydraulic station power	3Kw
Drilling depth	H=35mm	Processing width	B=1220mm
Drill row wheelbase	A=32mm	Drill row by row distance	P=64mm
Air pressure	P=0.6-0.8Mpa	Drillng shaft number	N=20x8=160pcs
Weight of machine	G=3800 kgs	Exterior dimensions	4000x2400x1800mm

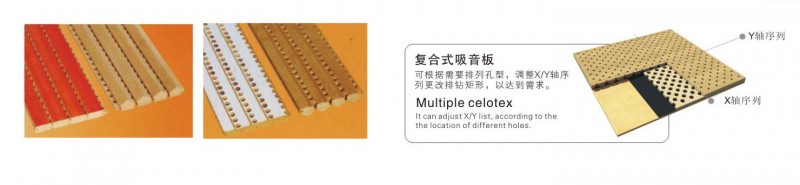

►It used advanced numerical controlling system, so the operation is very simple and the drilling position is very accurate.And it can design the drilling list by numberical controlling program . Becuse of its strong working ability , it is sued mostly for celotex drillling,especially for professional celotex.
►It uses PLC industrial controlling system which ahs numberical controlling screen.So, it makes the operation more convenient , and it makes the cability more reliabel.
►The machine is dealed with heating , so it is not easy to be anamorphic in long time's running.Its configuration design is reasonalbe and its function is complete.From machine body to controller ,it is designed by production program strictly.It has self-contained pressure inspection instrument which can offer feedback from different parts in time,so it can make sure that the production is safe and efficient.
►Simple operation and efficient producton makes it more suit in woodworking factories.
