Auto Six Rows Multi-head Boring Machineͼ1

Auto Six Rows Multi-head Boring Machine

2012-05-11 16:362250 Inquiries
Price Negotiable
Delivery AsiaChina
Brand Minghao
型号 MZB73216L
Insufficient stock for this product

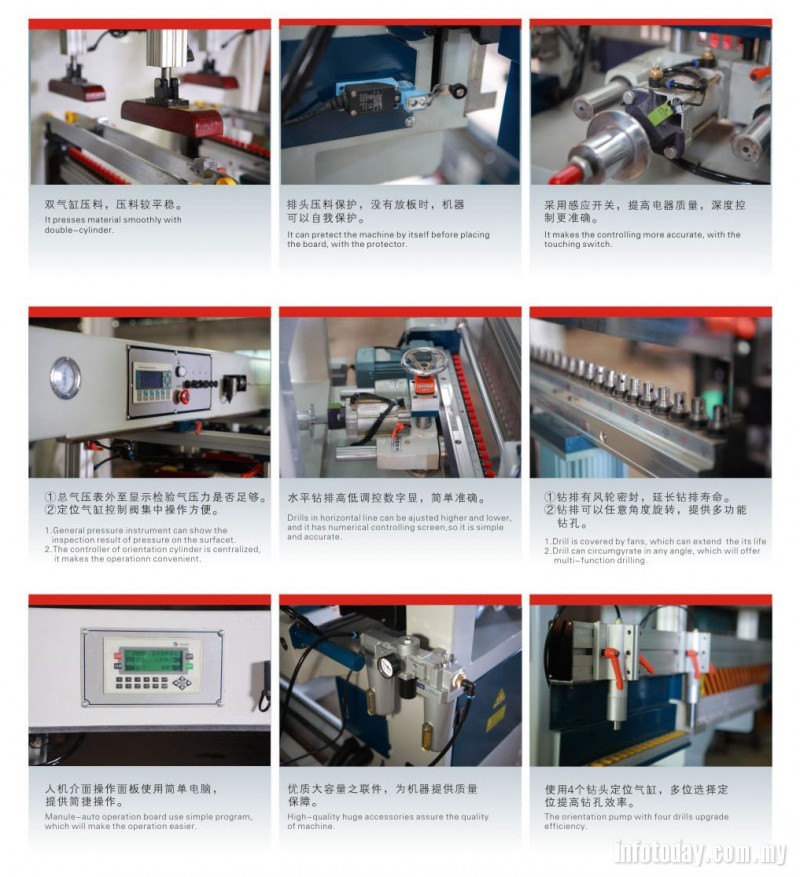

Product Details
We are a professional manufacturer specialized in woodworking machine for several years such as boring machine,edge banding machine,sliding table saw with good quality and competitive price.

Max. drilling diameter  Ømax=35mm (single drill)                              Ød=13mm (multi drill) Distance between spindle 2400mm
Max. drilling depth  H max=60mm Working pressure 0.5~0.6Mpa
Max. processing pitch 2500x672mm Total power of motor 10.5kw
Min.processing pitch 130x32mm Spindle speed 2840rpm
Total number of drilling shafts 126pcs Exterior of machine 4400x2500x1650mm
Total number of drilling rows 21x6 rows Weight of machine 2200 kgs
Installing dia to the drill Ø10mm 　 　
