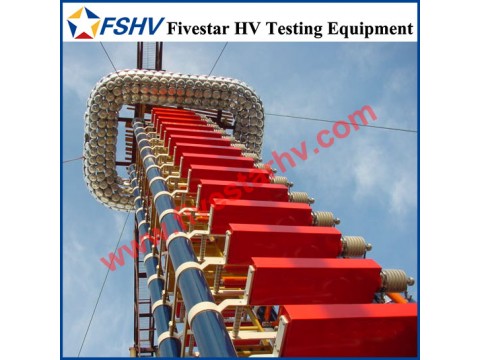

HV Impulse Voltage Generator

Lightning impulse voltage: up to 7200kV

Switching impulse voltage: up to 5000kV

Stage voltage: 100kV / 150 kV / 200kV per stage

Stage energy: 5kJ / 10kJ / 15kJ / 20kJ / 30kJ per stage

Our advanced impulse test systems are used for carrying out impulse voltage tests on HV apparatus like power transformers, instrument transformers, switchgears, breakers, HV cables etc.

The tests are conducted with lightning (LI), full or chopped waves, switching impulses (SI) as prescribed in the relevant international standards.

We can supply different structure of impulse voltage generator, such as S type, D type, V type, G type and etc.
