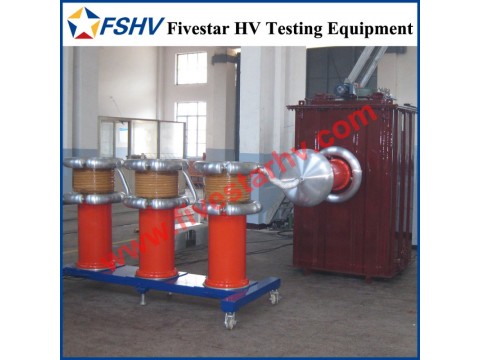

High Capacity AC Series Resonant Test System

Voltage: 10kV – 600kV

Current: 5A – 80A

Tank type AC series resonant test system is special designed for the high capacitance load, such as power cable. The huge system is suitable for testing in the factory or on-site. There are two different designs: variable frequency or adjustable inductance.

It’s widely used for MV capacitor testing, power cable aging test, motor/generator testing and other high power products testing.

Its on-site testing system is moveable and special suitable for long distance paved power cable field testing. The whole system is fixed on the truck (8 meters – 14 meters length, 2.5 meters width), the truck can be series connected or parallel connected when necessary.
