Flow Control Valve
Additional Equipment — Flow Control Valve Features:
Dexterous design and precise flow rate control of flow control valve play an important role in many industrial applications.
・Stable Rectifier
・Wide range of sizes
・Long life
・Large flow rate
Flow Control Valve Z, H Series">Flow Control Valve Z, H Series
Outstanding controllability attainable in low flow rate region
|
Model No |
Type |
Port size |
Effective area
(mm2) |
Pressure range
MPa(kgf/cm²) |
|
SP-Z-M3 |
Straight |
M3 |
0.4 |
0~0.8
(0~8) |
|
SPE-Z-M3 |
Elbow |
|
SPF-Z-M3 |
Flat |
|
SPER-Z-M3 |
Universal elbow |
|
SPSR-Z-M3 |
Universal |
|
SPR-Z-M3 |
|
SP-H-M5 |
Straight |
M5 |
1.0 |
|
SPE-H-M5 |
Elbow |
|
SPF-H-M5 |
Flat |
|
SPER-H-M5 |
Universal elbow |
|
SPSR-H-M5 |
Universal |
|
SPR-H-M5 |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5287">Z, H Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5285">Z, H 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5286">Z, H 3D CAD

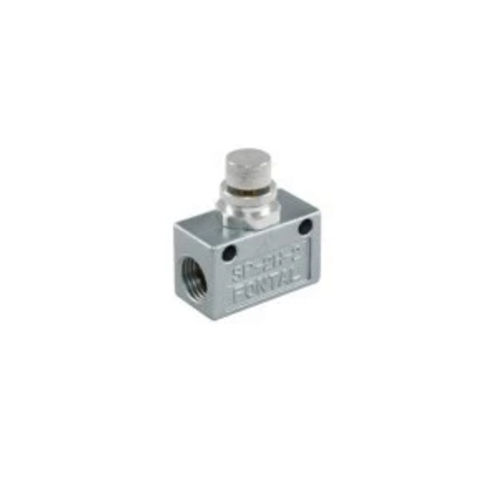

Flow Control Valve 2H Series">Flow Control Valve 2H Series
Outstanding controllability attainable in low flow rate region
|
Model No |
Type |
Port size |
Effective area
(mm2) |
Pressure range
MPa(kgf/cm²) |
|
SP-2H-1,2 |
Straight |
Rc1/8,1/4 |
2.7 |
0~1
(0~10) |
|
SPE-2H-1,2 |
Elbow |
R,Rc1/8,1/4 |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5293">2H Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5291">2H 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5292">2H 3D CAD

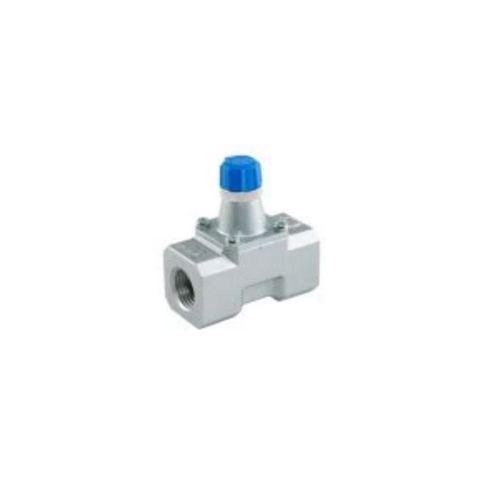

Flow Control Valve SP06, 10, 15, 20">Flow Control Valve SP 06, 10, 15, 20
Outstanding controllability attainable in low flow rate region
|
Model No |
Type |
Port size |
Effective area
(mm2) |
Pressure range
MPa(kgf/cm²) |
|
SP-06-1,2 |
Straight |
Rc1/8,1/4 |
17 |
0~1
(0~10) |
|
SPE-06-1,2 |
Elbow |
R,Rc1/8,1/4 |
12 |
|
SPE-10-3 |
Elbow |
R,Rc3/8 |
39 |
|
SPE-10-3,4 |
External R1/2,
Internal Rc3/8 |
45 |
|
SP-15-3,4,6 |
Straight |
Rc3/8,1/2,3/4 |
70 |
|
SP-20-6,8 |
Straight |
Rc3/4,1 |
174 |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5297">Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5299">2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5298">3D CAD
