A Series
Fontal/ Kuroda/ Gentle Solenoid Valve A Series

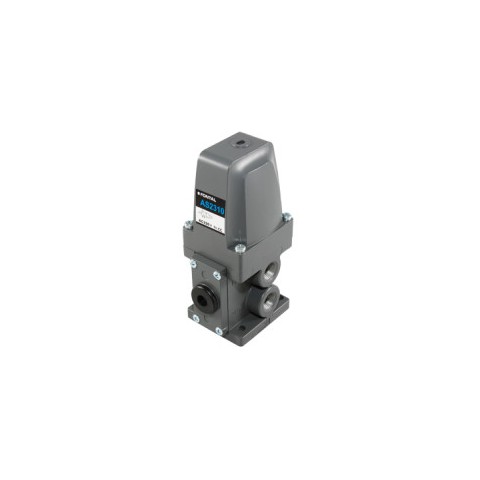

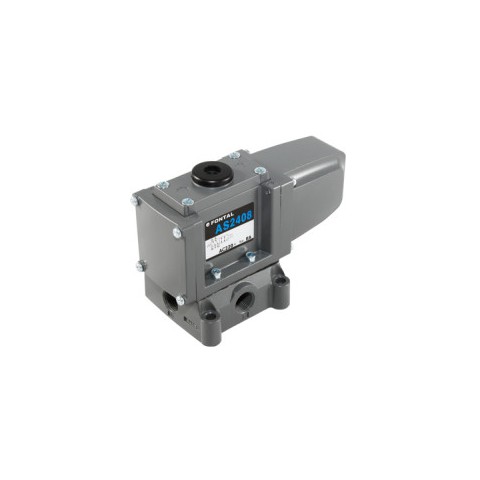

3/5 Port Solenoid Valve A Series Features:
Main valve is of sleeve spool type with metal seal.
Heavy duty type solenoid valve made of aluminum alloy.
Usable in low vacuum application
3/5 Port Direct Operated Solenoid Valve A06 Series
Direct operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
AS2306 |
3 |
Single |
2 |
Rc1/8,1/4 |
9 |
0~1
(0~10) |
|
AS2406 |
5 |
10 |
|
AD2406 |
Double |
|
AD3406 |
3•Closed center |
9 |
|
ADE3406 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz)
● Wiring/Lead wire conduit (06 type only)
1255101431967.pdf ( A06 Series )
3/5 Port Direct Operated Solenoid Valve A08 Series
Direct operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
AS2308 |
3 |
Single |
2 |
Rc1/4,3/8 |
22 |
0~1
(0~10) |
|
AS2408 |
5 |
30 |
|
AD2408 |
Double |
|
AD3408 |
3•Closed center |
25 |
|
ADE3408 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz)
● Terminal Conduit
1257147531967.pdf ( A08 Series )
3/5 Port Direct Operated Solenoid Valve A10 Series
Direct operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
AS2310 |
3 |
Single |
2 |
Rc3/8,
1/2 |
38 |
0~1
(0~10) |
|
AS2410 |
5 |
50 |
|
AD2410 |
Double |
|
AD3410 |
3•Closed center |
|
ADE3410 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz)
● Terminal Conduit
1257549731967.pdf ( A10 Series )
3/5 Port Direct Operated Solenoid Valve A15 Series
Direct operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
AS2315 |
3 |
Single |
2 |
Rc1/2,3/4 |
80 |
0~1
(0~10) |
|
AS2415 |
5 |
75 |
|
AD2415 |
Double |
|
AD3415 |
3•Closed center |
|
ADE3415 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz)
● Terminal Conduit
1258344431967.pdf (A15 Series )
3/5 Port Direct Operated Solenoid Valve A25 Series
Direct operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
AS2325 |
3 |
Single |
2 |
Rc1 |
190 |
0~1
(0~10) |
|
AS2425 |
5 |
Rc3/4,1,1¼ |
180 |
|
AD2425 |
Double |
|
AD3425 |
3•Closed center |
|
ADE3425 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz)
● Terminal Conduit
1259118331967.pdf ( A25 Series )
Individual Wiring Type Manifold MF☐-C
.
|
Type of Manifold |
MF☐-CC06 |
MF☐-CC08 |
MF☐-CC10 |
MF☐-CC15 |
MF☐-CC25 |
|
common SUP, common EXH |
common SUP, common EXH |
common SUP, common EXH |
common SUP, common EXH |
common SUP, common EXH |
|
Port size |
Port 1 |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
|
Port 3, 5 |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
|
Port 2, 4 |
Rc⅛ |
Rc⅜ |
Rc½ |
Rc½ |
Rc1 |
|
Number of stations |
2~20 |
|
Mountable Solenoid Valve |
AS2406-NB
AD2406-NB
AD3406-NB
ADE3406-NB |
AS2408-NB
AD2408-NB
AD3408-NB
ADE3408-NB |
AS2410-NB
AD2410-NB
AD3410-NB
ADE3410-NB |
AS2415-NB
AD2415-NB
AD3415-NB
ADE3415-NB |
AS2425-NB
AD2425-NB
AD3425-NB
ADE3425-NB |
|
Blank plate |
CC06~BP |
CC08~BP |
CC10~BP |
CC15~BP |
CC25~BP |
|
Type of Manifold |
MF☐-CI06 |
MF☐-CI08 |
MF☐-CI10 |
MF☐-CI15 |
MF☐-CI25 |
|
common SUP, individual EXH |
common SUP, individual EXH |
common SUP, individual EXH |
common SUP, individual EXH |
common SUP, individual EXH |
|
Port size |
Port 1 |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
|
Port 3, 5 |
Rc⅛ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc1 |
|
Port 2, 4 |
Rc⅛, ¼ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc1 |
|
Number of stations |
2~20 |
|
Mountable Solenoid Valve |
AS2406-NB
AD2406-NB
AD3406-NB
ADE3406-NB |
AS2408-NB
AD2408-NB
AD3408-NB
ADE3408-NB |
AS2410-NB
AD2410-NB
AD3410-NB
ADE3410-NB |
AS2415-NB
AD2415-NB
AD3415-NB
ADE3415-NB |
AS2425-NB
AD2425-NB
AD3425-NB
ADE3425-NB |
|
Blank plate |
CC06~BP |
CC08~BP |
CC10~BP |
CC15~BP |
CC25~BP |
1259496531967.pdf ( MF☐-C )
