FIND YOUR OWN TERRITORY

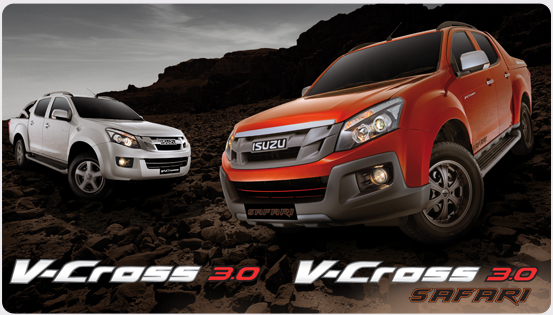

Introducing the all-new ISUZU D-MAX V-Cross – toughness, refined and redefined. Encompassing aggressive new styling and new levels of power – plus ISUZU’s legendary durability and fuel efficiency strides ahead of its competition. The award-winning ISUZU D-MAX comes with an aggressive satisfying power engine. Fitted with a range of luxuries and external features as standard - ISUZU D-MAX V-Cross SAFARI stands out to be the off-roader to be admired.
SAFARI PACK

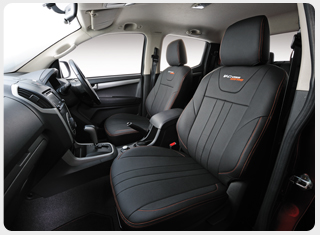

6.2” GPS Navigation Sy6.2” GPS Navigation Sy6.2” Premium Italian Leather Seats

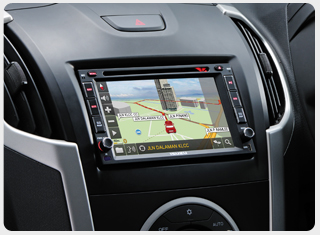

GPS Navigation System & Multimedia Player with Reverse Camera

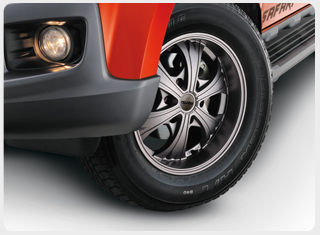

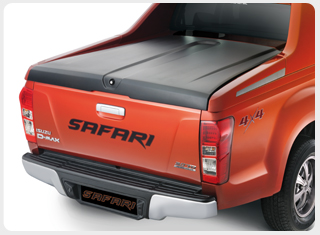

V-LID - Lockable Cargo Cover with Aero-Spoiler and LED Interior Lamp New Exclusively Designed V-Cross SAFARI Wheels

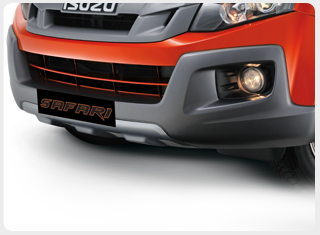

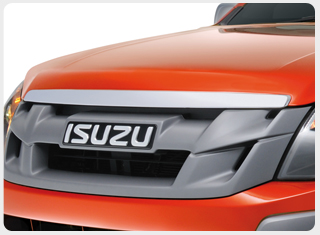

Matte Grey Radiator Grille Matte Grey Front Bumper Guard

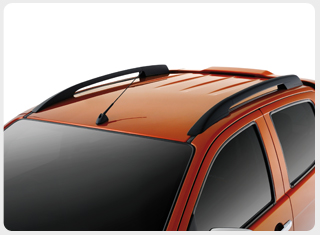

Matte Black Sporty Roof Rails Matte Grey Rugged Door Cladding
ALL TERRITORY STABILITY

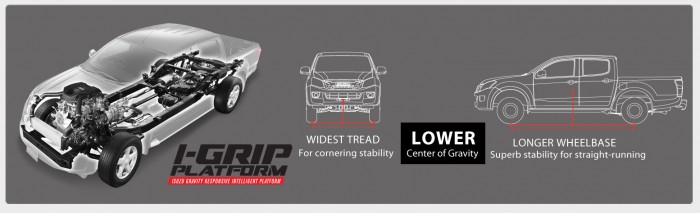

The all-new ISUZU D-MAX straight-line and cornering stability is second to none. Employing the innovative i-GRIP (ISUZU Gravity Respo
nsive Intelligent Platform) design philosophy, the D-MAX comes with higher ground clearance without compromising stability by havin
g the widest tread footprint which ultimately provides a very low center of gravity. Additionally, the long wheelba
se positio
ning adds to this co
nstant stable performance. That’s why the all-new ISUZU D-MAX is stable in all territories.

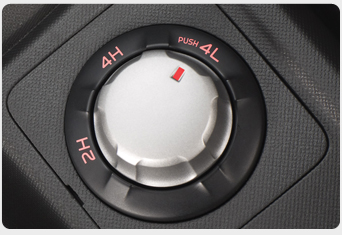

Terrain Command 4WD system allows

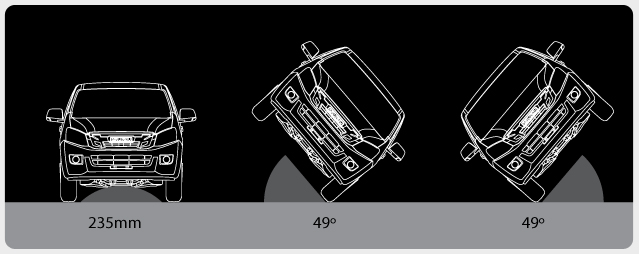

for simple shift to 4-wheel-drive mode vice versa. Up for any challenge. The all-new ISUZU D-MAX has further improved ground clearance, an excellent side-slip angle plus approach and departure angles.
EXTENSIVELY SATISFYING POWER

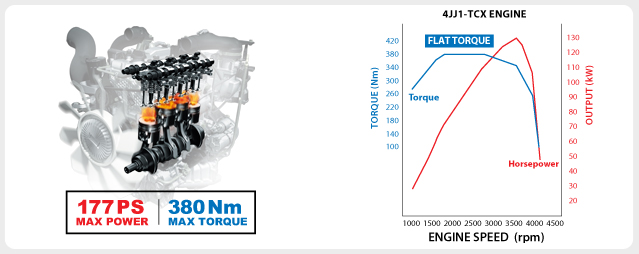

The secret in producing high and efficient power is to have a large capacity, under- stressed engine. That’s how we give you more power with less fuel. The advanced crème of the diesel world engine; the 3000cc turbocharged-intercooled 4JJ1-TCX produces extensive 177PS of horsepower with 380Nm of torque from just 1800rpm. This superb flat-torque characteristic throughout the rev range provides not just fast but a smooth acceleration that ultimately leaves you an extensively satisfying power drive.

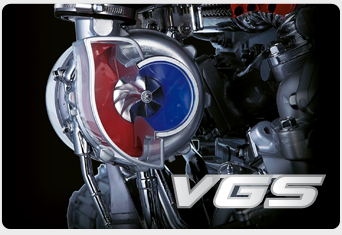

ISUZU’s all-new Variable Geometry System (VGS) Turbocharger delivers high output, lower emmisions and uses less fuel.
LEGENDARY FUEL EFFICIENCY
The new ISUZU packs a perfect balance of muscle and eco
nomy with its advanced re-engineered turbo plant and cutting edge aerodynamics that inherit the legendary proven and tested ISUZU fuel efficiency global standards. Journey on further without a bother on your mind.

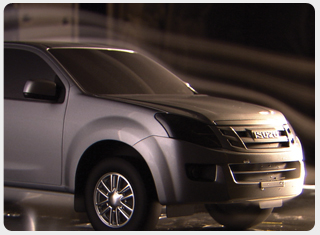

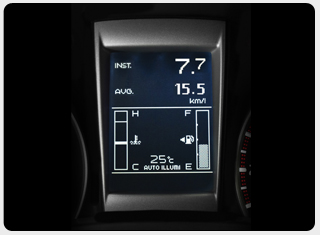

State-of-the-art aerodynamics exterior design Fuel eco
nomy indicator in multi-info display.
and testing for minimal drag

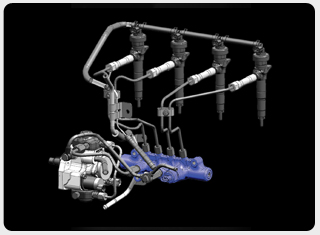

Improved high pressure common-rail fuel system.
ADVANCED SAFETY
What’s power without safety considerations? The ISUZU D-MAX is packed with an arsenal of safety refinements as top priority to ensure that worry will never cross your mind. Whether you are on a highway cruising, in deep terrifying terrain or the heaviest of rain, you will have total peace of mind knowing that advance safety features are always there for you.

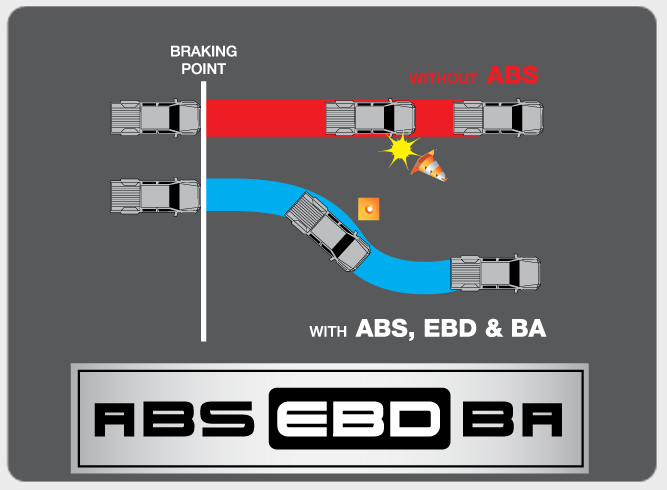

Optimum steering co
ntrol while brakes are applied with Anti-Lock Braking System (ABS), Electro
nic Brake-Force Distribution (EBD) and Brake-Assist (BA).

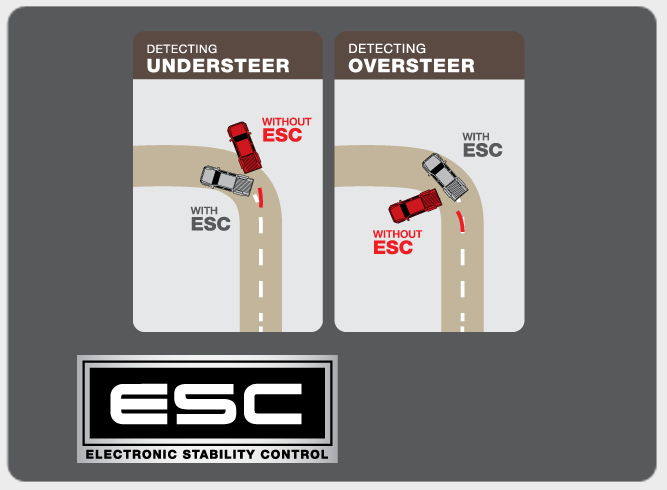

Electro
nic Stability Co
ntrol (ESC) detects and co
ntrols vehicle stability while on the move.

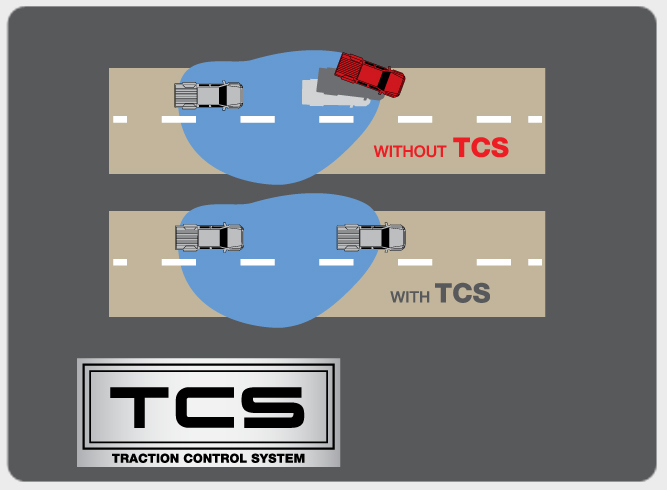

Traction Co
ntrol System (TCS) prevents loss of vehicle co
ntrol by mo
nitoring wheel speed of moving vehicle.
This cabin comprises high tensile steel and tailor blank welding for an unyielding strength and rigidity of the passenger safety cell.

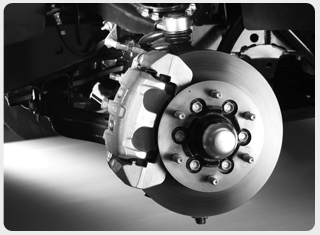

Improved braking efficiency with larger front brakes with ventilated discs.

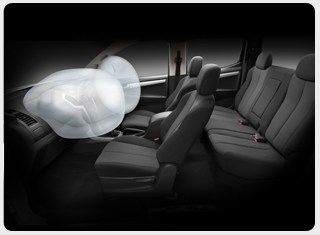

Dual airbags protecting the driver and the front passenger in the event of a collision.

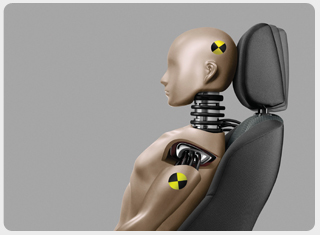

Anti-whiplash. To reduce the impact in a collision.
LUXURIOUS COMFORT
The sedan-like interior of the ISUZU D-MAX is class beating. From smart comfortable space utilisation to ergo
nomically well-thought out compatibility that surrounds you from the moment you step in. It’s an interior that makes others look inferior. Welcome to your special territory.

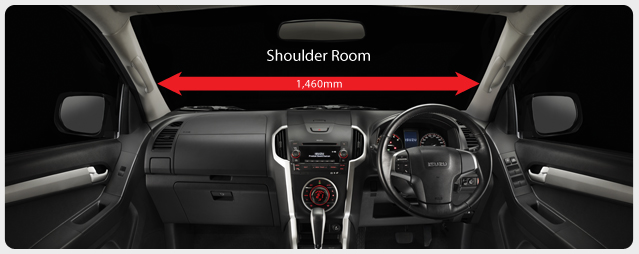

Widest Cabin Room
The widest cabin not only gives a bigger and more airy feel, the seats are also designed to provide excellent support.

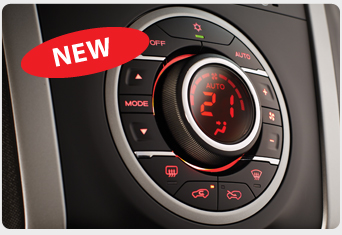

Automatic Climate Control*
Temperature inside the passenger cabin can be regulated with a single push of a button for absolute convenience throughout the journey.
*Available in V-Cross 3.0L & Safari only

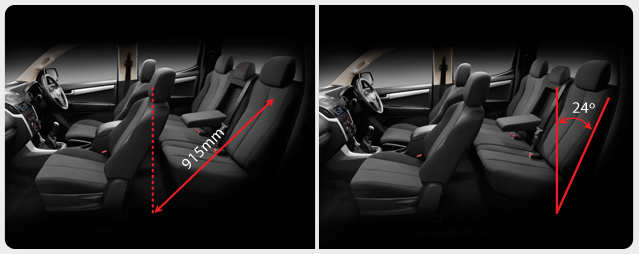

Comfortable Rear Seat
Not only cabin width, but also legroom, headroom and rear seat back angle are the best in class, making the all-new ISUZU D-MAX one of the most accommodating and comfortable vehicles in its class, giving it a classy feel more akin to SUV .

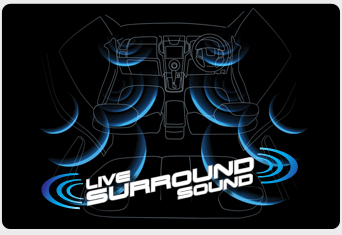

Premium Audio System
All-new ISUZU Premium Audio System. Live Surround Sound with roof mounted ‘Exciter’ speakers
SPECIFICATIONS
|
|
V-Cross
3.0L 4x4 MT
|
V-Cross
3.0L 4x4 AT
|
V-Cross SAFARI
3.0L 4x4 AT
|
|
ENGINE
|
|
|
Model
|
4JJ1-TCX
|
|
Type
|
In-Line 4-Cylinder VGS Turbo Intercooler Diesel DOHC 16V
|
|
Displacement (cc)
|
2,999
|
|
Bore x Stroke (mm)
|
95.4 x 104.9
|
|
Compression Ratio
|
17.3:1
|
Maximum Output
(kW (PS) @ rpm) [ISO NET]
|
130 (177) @ 3,600
|
Maximum Torque
(Nm (kgm) @ rpm) [ ISO NET]
|
380 (38.7) @ 1,800 - 2,800
|
|
Fuel System
|
Direct Injection Electronic Commonrail
|
|
TRANSMISSION
|
|
|
Type
|
|
5-Speed Manual
|
5-Speed Automatic with Sequential Shift
|
|
Gear Ratio
|
1st
|
4.332
|
3.520
|
|
|
2nd
|
2.560
|
2.042
|
|
|
3rd
|
1.492
|
1.400
|
|
|
4th
|
1.000
|
1.000
|
|
|
5th
|
0.791
|
0.716
|
|
|
Reverse
|
3.947
|
3.224
|
|
|
Final
|
3.727
|
3.727
|
|
SUSPENSION & BRAKES
|
|
|
Suspension
|
Front
|
Independent Double Wishbones with Coil Springs & Stabilizer
|
|
|
Rear
|
Semi-Elliptical Leaf Springs
|
|
Shock Absorber
|
|
All Wheels Hydraulic Double Action Telescopic
|
|
Brake
|
Front
|
Ventilated Disc with 2-Pot Calipers
|
|
|
Rear
|
Leading & Trailing Drums
|
|
STEERING
|
|
|
Steering System
|
Rack & Pinion Power Steering System
|
|
Min. Turning Radius (m)
|
6.3
|
|
TYRES & WHEELS
|
|
|
Tyres
|
255/65R17
|
|
Wheels
|
17” Alloy
|
|
WEIGHT & CAPACITIES
|
|
|
Gross Vehicle Weight (kg)
|
2,600
|
|
Seating Capacity
|
5-Person
|
|
Fuel Tank Capacity (L)
|
76
|
|
EXTERIOR FEATURES
|
|
|
Headlamps
|
PROJECTOR Ellipsoid System
|
|
Front Fog Lamps
|
Built-In
|
|
Engine Hood Garnish
|
Chrome
|
|
Front Grille
|
Chrome
|
Dark Grey with Chrome ISUZU Badge
|
|
Door Outer Mirror
|
Chrome Finished Electric Folding & Control with LED Intergrated Turn Signal
|
|
Door & Tailgate Handles
|
Chrome
|
|
Front Bumper Guard
|
N/A
|
Matte Grey Coloured
|
|
Side Body Cladding
|
N/A
|
Matte Grey Coloured
|
|

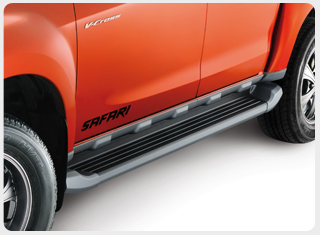

Side Step
|
Equipped
|
|
Roof Rail
|
Silver Coloured
|
Matte Black Coloured
|
|
Cargo Cover
|
N/A
|
V-Lid
|
|
Bed Liner
|
Equipped
|
|
Roll Bar
|
Optional
|
N/A
|
|
Rear Combination Lamp
|
LED
|
|
Rear Bumper
|
One Step Type with Chrome Plating Finished
|
|
INTERIOR FEATURES
|
|
|
Meter Panel
|
e-LUMAX with Advance Multi-Information Display
|
|
Steering
|
3-Spoke Leather Wrapped with Audio & Hands Free Switches
|
|
Air Conditoning
|
Automatic Climate Control
|
|
Audio System
|
[ISUZU Premium Audio System] Built-In 2-Din
AM/FM MP3 WMA Player USB & Bluetooth with Exciter, Speakers & Tweeters
|
6.2" GPS Navigation System
& Multimedia Player with Reverse Camera
|
|
Assist Grip
|
Fixed Assist Grips for Driver & Front Passenger
|
|
Power Door Lock
|
Electric Control with Speed Sensing Automatic Door Lock
|
|
Seats
|
Jacquard Flat Wooven with Tricot Trim Bolster
|
Premium Italian Leather Seats
|
|
Door Windows
|
Electric Control with Jam Protection for Driver
|
|
Middle Console Box
|
Arm Rest Compartment with Rear Cups Holder
|
|
Map Lamp
|
Dual for Driver & Front Passenger with Overhead Console
|
|
Cabin Lamp
|
Equipped
|
|
Ash Tray
|
Cup Type
|
|
Power Outlet
|
Inside Top Tier Glove Box
|
|
Cigarette Lighter
|
Equipped
|
|
Carpet Mat
|
Black Matte with Isuzu Badge
|
Black Matte with V-Cross SAFARI Badge
|
|
SAFETY FEATURES
|
|
|
SRS Airbags (DUAL)
|
Driver & Front Passenger
|
|
ABS with EBD
|
Equipped
|
|
Brake Assist (BA)
|
Equipped
|
|
Electronic Stability Control (ESC)
|
Equipped
|
|
Traction Control System (TCS)
|
Equipped
|
|
Body Construction
|
Cabin Construction with Tailor Blank Welded High Tensile Steel
|
|
Side Door Impact Beams
|
Equipped
|
|
Collapsible Steering Column
|
Equipped
|
|
Windscreen
|
Front Laminated with Rear Defogger
|
|
Wiper
|
with Variable Intermittent
|
|
Seat Belts
|
3-Point ELR for All Occupants plus Pre-Tensioner with Load Limiter for Front Seats
|
|
Child Seat Anchorage
|
ISO FIX with Top Tether for Rear Seats
|
|
Vehicle Security System
|
Anti-Theft Alarm System with Key-Coded Immobilizer
|
|
Child Protector Safety Lock
|
Equipped
|
|
High Mount Stop Lamp
|
Equipped
|
|
Reverse Sensor
|
Equipped
|
