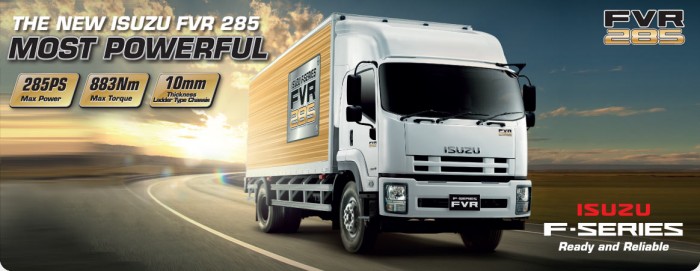

The New Isuzu F-Series FVR 285 Truck
The New Generation of Hauling Power
Isuzu F-Series FVR meets the challenges of tough jobs and cost-effective operations.
Its unbeatable combination of versatility and reliability makes
Isuzu F-Series the world leader in medium-duty trucks.
Specification
|
|
|
|
|
MODEL CODE
|
ISUZU FVR 34 SU-MD (4X2)
|
ISUZU FVR 34 SU-SD (4X2)
|
ISUZU FVR 34 UU-ST (4X2)
|
|
ENGINE
|
|
|
Model
|
6HK1 - TCN
|
6HK1 - TCS
|
|
Type
|
6-Cylinder In-line, 4-Cycle, Water-cooled, OHC, Turbo with Intercooler
|
|
Displacement
|
cc
|
7,790
|
|
Bore x Stroke
|
mm
|
115 x125
|
|
Compression Ratio
|
17.5:1
|
|
Maximum Output
|
kW (PS) @ rpm
|
177 (240) @ 2,400
|
213 (285) @ 2,400
|
|
Maximum Torque
|
Nm (kgm) @ rpm
|
706 (72) @ 1,450
|
883 (90) @ 1,450
|
|
Emission Level
|
Euro 2
|
|
Fuel System
|
Common Rail Direct Injection
|
|
WEIGHT & CAPACITIES
|
|
|
Gross Vehicle Weight
|
kg
|
18,000
|
|
Curb Weight
|
kg
|
4,855
|
5,135
|
5,600
|
|
Front
|
kg
|
3,030
|
3,170
|
3,430
|
|
Rear
|
kg
|
1,825
|
1,965
|
2,170
|
|
Fuel Tank Capacity
|
l
|
200
|
|
AXLE
|
|
|
Front
|
Type
|
Reverse Elliot, I-Beam
|
|
Front Axle Capacity
|
kg
|
6,300
|
|
Rear
|
Type
|
Single Reduction Banjo Design Full Floating
|
|
Rear Axle Capacity
|
kg
|
13,000
|
|
CLUTCH
|
|
|
Type
|
Dry Single Plate with Diaphragm Spring
|
|
Size
|
mm
|
380
|
|
PERFORMANCE
|
|
|
Max. Speed
|
km/h
|
115
|
110
|
|
Max. Gradeability
|
%
|
30.7
|
58
|
|
SUSPENSION SYSTEM
|
|
|
Type
|
Front
|
Semi Elliptical Alloy Steel Leaf Springs, Hydraulic Double Acting Telescopic Shock Absorber
|
|
Type
|
Rear
|
Semi Elliptical Alloy Steel Leaf Springs
|
|
TYRES & WHEELS
|
|
|
Tyres
|
11R22.5-16PR
|
|
Wheels
|
22.5 x 8.25 (ISO 10 Studs)
|
|
BRAKES
|
|
|
Service
|
Air Over Hydraulic (AOH), Dual Circuit, Front & Rear Leading Trailing
|
Full Air with Auto Adjuster, Dual Circuit
|
|
Parking Brake Type
|
Mechanical Expansion Type, Located at the Rear End of Transmission
|
Spring Acting, Rear Wheel Parking
|
|
Auxiliary
|
Exhaust Brake
|
|
STEERING
|
|
|
Steering System
|
Power Assist, Recirculating Ball Type
|
|
Min. Turning Radius
|
m
|
7.7
|
9.8
|
|
ELECTRICAL
|
|
|
Battery
|
24V
|
|
Alternator
|
24V-50A
|
