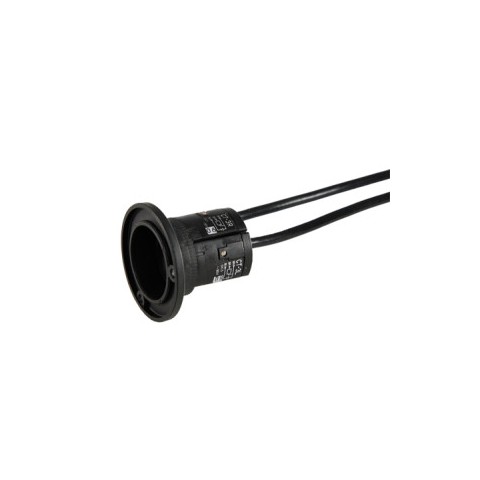

Sensor Switch / Reed Switch / Solid State Switch / Magnetic Switch / Pneumatic Magnetic Switch

Additional Equipment — Sensor Switch Features:
Fontal offers various sensor switch and pressure switch for air cylinder, HI-ROTOR, solenoid valve, air preparation equipment, etc. in order to achieve full automation.
•Stable
•Fast response

Switch Unit For Miniature HI-ROTOR CT Series
Proximity type

Model No	Load Voltage (V)	Load current (mA)	Wiring	Indicator light	Applicable unit
CT-3□	DC5~30	5~200	Lead wire	Provided	PRN1~30 PRO3~30
CT-3□U
CTP-3□

Switch Unit For Miniature HI-ROTOR SR Series
Proximity type

Model No	Load Voltage (V)	Load current (mA)	Wiring	Indicator light	Applicable unit
SR-□	DC5~30	5~200	Lead wire	Provided	PRN3~30

M Type REED Switch

Model No	Rated voltage (V)	Rated current range (mA)	Wiring	Indicator light	Applicable actuator
MA-1	AC110	5~45	Lead wire	Provided	HI-ROTOR, Z, J, X, K and A series cylinder
MA-1	DC24	5~45
MD-1	DC24	25~65
MD-3	DC5~DC6	0~50
MR	AC,DC5~110	0~50		Not provided
MA-2L	AC110	5~150		Provided
MA-2H	AC220	5~150		Provided

M Type Proximity Switch

Model No	Rated voltage (V)	Rated current range (mA)	Wiring	Indicator light	Applicable actuator
MT-3	DC5~30	5~200	3-Lead wire	Provided	Z, J, X, K and A series cylinder
MT-3U
MT-2	DC24 (DC10~30)		2-Lead wire
MT-2U

Pressure Switch PS

Model No	Pressure setting range MPa(kgf/cm²)	Hysteresis MPa(kgf/cm²)	Rated current (A)	Screw size
PS-6-1	0.15~1(1.5~10)	0.05(0.5)	3(AC125V), 2(DC30V)	R1/8

Price	Negotiable
Delivery	MalaysiaSelangorSubang JayaWithin 3 days after payment
Brand	FONTAL / GENTLE MALAYSIA
