Additional Equipment — Speed Control Joint Features:
・The universal type is designed to rotate the fitting and elbow knob freely, so that the direction of the tube can be freely set.
・Polyurethane and nylon tubes can be used.
・The screw is coated with a sealant, making it unnecessary to use a seal tape.
・Durable performance
・No leak, no coming off, easy detachment
・Superior flow characteristics
・Various tube materials applicable
・Swivel mechanism
・Drive the speed of the machine directly
・In-line mounting, time-saving and cost-saving
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Model No | Screw size |
Applicable tube No |
Pressure range MPa(kgf/cm²) |

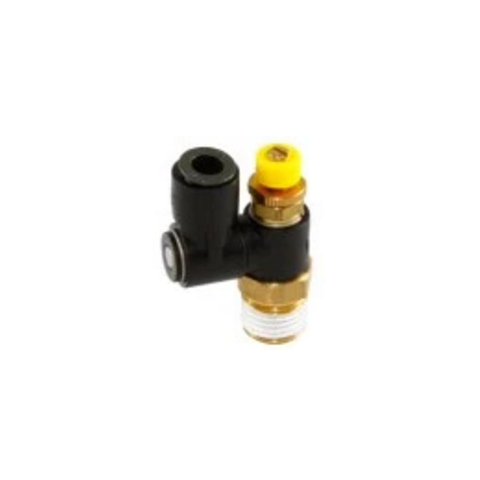

| Universal type | |||
| MB4R-M3 | M3 |
100U04 100P04 |
0.7 (7) |
| MB4R-M5 | M5 | ||
| MB4R-01 | R1/8 | ||
| MB6R-M5 | M5 |
100U06 100P06 |
|
| MB6R-01 | R1/8 |
● Meter-out type and meter-in type available
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Model No | Screw size |
Applicable tube No |
Pressure range MPa(kgf/cm²) |
| Universal type | |||
| B6R-M5SC | M5 |
100U06 100P06 |
0.7 (7) |
| B6R-01SC | R1/8 | ||
| B6R-02SC | R1/4 | ||
| B8R-01SC | R1/8 |
100U08 100P08 |
|
| B8R-02SC | R1/4 | ||
| B8R-03SC | R3/8 | ||
| B10R-02SC | R1/4 |
100U10 100P10 |
|
| B10R-03SC | R3/8 | ||
| B10R-04SC | R1/2 | ||
| B12R-03SC | R3/8 |
100U12 100P12 |
|
| B12R-04SC | R1/2 |
● Meter-out type and meter-in type available
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Model No | Screw size |
Applicable tube No |
Pressure range MPa(kgf/cm²) |

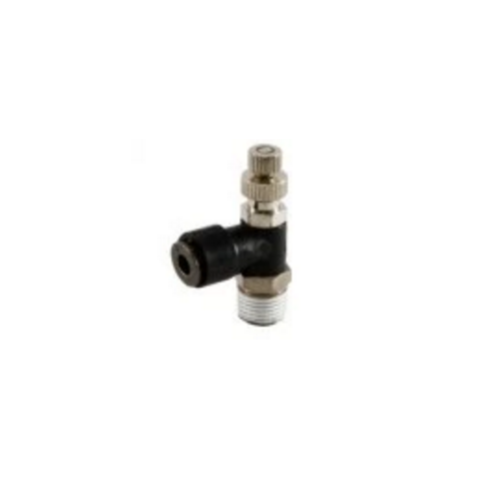

| Elbow type | |||
| M4R-M3 | M3 |
100U04 100P04 |
0.7 (7) |
| M4R-M5 | M5 | ||
| M4R-01 | R1/8 | ||
| M6R-M5 | M5 |
100U06 100P06 |
|
| M6R-01 | R1/8 |
● Meter-out type and meter-in type available
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Model No | Screw size |
Applicable tube No |
Pressure range MPa(kgf/cm²) |
| Elbow type | |||
| 6R-M5SC | M5 |
100U06 100P06 |
0.7 (7) |
| 6R-01SC | R1/8 | ||
| 6R-02SC | R1/4 | ||
| 8R-01SC | R1/8 |
100U08 100P08 |
|
| 8R-02SC | R1/4 | ||
| 8R-03SC | R3/8 | ||
| 10R-02SC | R1/4 |
100U10 100P10 |
|
| 10R-03SC | R3/8 | ||
| 10R-04SC | R1/2 | ||
| 12R-03SC | R3/8 |
100U12 100P12 |
|
| 12R-04SC | R1/2 |
● Meter-out type and meter-in type available
