PM Series

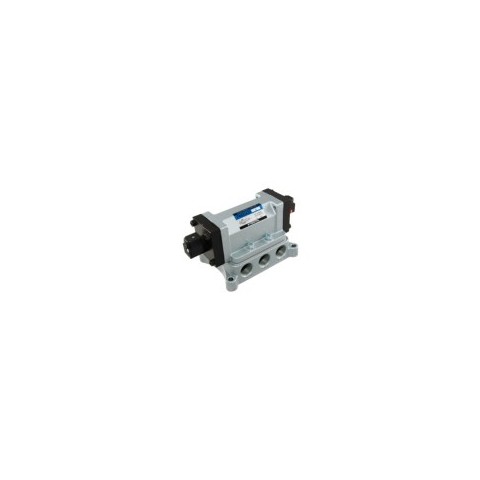

3/5 Port Solenoid Valve PM Series Features:
Main valve is of sleeve spool type with metal seal. Interface between sub-base and body is common to direct acting type solenoid valve A series
3/5 Port Pilot Operated Solenoid Valve PM6 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS246 |
5 |
Single |
2 |
Rc1/8 |
6.5 |
0.15~1
(1.5~10) |
|
PMD246 |
Double |
|
PMD346 |
3•Closed center |
|
PME346 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
1529511531967.pdf
3/5 Port Pilot Operated Solenoid Valve PM06 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2306 |
3 |
Single |
2 |
Rc1/8,1/4 |
11 |
0.2~0.7 (2~7) |
|
PMS2406 |
5 |
12.5 |
0.2~0.8 (2~8) |
|
PMD2406 |
Double |
|
PMD3406 |
3•Closed center |
12 |
|
PME3406 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
3/5 Port Pilot Operated Solenoid Valve PM08 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2308 |
3 |
Single |
2 |
Rc1/4,3/8 |
22 |
0.2~0.7 (2~7) |
|
PMS2408 |
5 |
30 |
0.2~0.8 (2~8) |
|
PMD2408 |
Double |
|
PMD3408 |
3•Closed center |
25 |
|
PME3408 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
3/5 Port Pilot Operated Solenoid Valve PM10 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2310 |
3 |
Single |
2 |
Rc3/8,1/2 |
38 |
0.2~0.7 (2~7) |
|
PMS2410 |
5 |
50 |
0.2~0.8 (2~8) |
|
PMD2410 |
Double |
|
PMD3410 |
3•Closed center |
|
PME3410 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
3/5 Port Pilot Operated Solenoid Valve PM15 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2315 |
3 |
Single |
2 |
Rc1/2,3/4 |
80 |
0.2~0.7 (2~7) |
|
PMS2415 |
5 |
75 |
0.2~0.8 (2~8) |
|
PMD2415 |
Double |
|
PMD3415 |
3•Closed center |
|
PME3415 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
3/5 Port Pilot Operated Solenoid Valve PM25 Series
Pilot operate/metal Seal/Sub-base Mounting
|
Model No |
Port |
Solenoid |
Position |
Port size |
Effective
area
(mm2) |
Pressure
range
MPa
(kgf/cm2) |
|
PMS2325 |
3 |
Single |
2 |
Rc1 |
190 |
0.2~0.7 (2~7) |
|
PMS2425 |
5 |
Rc3/4,1,1¼ |
210 |
0.2~0.8 (2~8) |
|
PMD2425 |
Double |
|
PMD3425 |
3•Closed center |
195 |
|
PME3425 |
3•Exhaust center |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, Terminal grommet, Terminal conduit, DIN connector
Individual Wiring Type Manifold MF☐-C
.
| Type of Manifold
| MF☐-CC6
| MF☐-CS6
| MF☐-CC06
| MF☐-CC08
| MF☐-CC10
| MF☐-CC15
| MF☐-CC25
|
| common SUP, common EXH
| common SUP, captured EXH
| common SUP, common EXH
| common SUP, common EXH
| common SUP, common EXH
| common SUP, common EXH
| common SUP, common EXH
|
| Port size
| Port 1
|
Rc⅛, ¼ |
Rc⅛, ¼ |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 3, 5
|
Rc⅛ |
Rc¼(1 place) |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 2, 4
|
Rc⅛ |
Rc⅛ |
Rc⅛, ¼ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc¾, 1 |
| Number of stations
| 2~20
|
| Mountable Solenoid Valve
| PMS246-NB
PMD246-NB
PMD346-NB
PME346-NB
| PMS2406-NB
PMD2406-NB
PMD3406-NB
PME3406-NB
| PMS2408-NB
PMD2408-NB
PMD3408-NB
PME3408-NB
| PMS2410-NB
PMD2410-NB
PMD3410-NB
PME3410-NB
| PMS2415-NB
PMD2415-NB
PMD3415-NB
PME3415-NB
| PMS2425-NB
PMD2425-NB
PMD3425-NB
PME3425-NB
|
| Blank plate
| CC6~BP
| CC06~BP
| CC08~BP
| CC10~BP
| CC15~BP
| CC25~BP
|
| Type of Manifold
| MF☐-CI6
| MF☐-CI06
| MF☐-CI08
| MF☐-CI10
| MF☐-CI15
| MF☐-CI25
|
| common SUP, individual EXH
| common SUP, individual EXH
| common SUP, individual EXH
| common SUP, individual EXH
| common SUP, individual EXH
| common SUP, individual EXH
|
| Port size
| Port 1
|
Rc⅛, ¼ |
Rc¼ |
Rc⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 3, 5
|
Rc⅛ |
Rc⅛ |
Rc¼, ⅜ |
Rc½ |
Rc¾ |
Rc1 |
| Port 2, 4
|
Rc⅛ |
Rc⅛, ¼ |
Rc¼, ⅜ |
Rc⅜, ½ |
Rc½ |
Rc¾, 1 |
| Number of stations
| 2~20
|
| Mountable Solenoid Valve
| PMS246-NB
PMD246-NB
PMD346-NB
PME346-NB
| PMS2406-NB
PMD2406-NB
PMD3406-NB
PME3406-NB
| PMS2408-NB
PMD2408-NB
PMD3408-NB
PME3408-NB
| PMS2410-NB
PMD2410-NB
PMD3410-NB
PME3410-NB
| PMS2415-NB
PMD2415-NB
PMD3415-NB
PME3415-NB
| PMS2425-NB
PMD2425-NB
PMD3425-NB
PME3425-NB
|
| Blank plate
| CC6~BP
| CC06~BP
| CC08~BP
| CC10~BP
| CC15~BP
| CC25~BP
|
