2 Port Solenoid Valve AS Series
2 Port Pilot Operated Solenoid Valve AS22 Series
Diaphragm
| Model No | Type | Port | Position | Port size |
Effective area (mm2) |
Pressure range MPa (kgf/cm2) |
| AS2200 | Pilot | 2 | 2 | Rc1/4 | 17 |
0.05~0.7 (0.5~7) |
| AS2201A | Rc3/8 | 48 | ||||
| AS2202 | Rc1/2 | 100 |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4625">AS22 Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4623">AS22 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4624">AS22 3D CAD
3 Port Solenoid Valve AS307
Compact size with high flow rate and long life
3 Port Direct Operated Solenoid Valve AS307
Direct operate/Poppet
Direct operate/Poppet
| Model No | Type | Port | Position | Port size |
Effective area (mm2) |
Pressure range MPa (kgf/cm2) |
| AS307 | Direct | 3 | 2 | Rc1/8 | 4 | 0~0.9(0~9) |
| Rc1/4 |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire, DIN connector
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4631">AS307 Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4629">AS307 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4630">AS307 3D CAD
2/3 Port Solenoid Valve SS Series
2/3 Port Direct Operated Solenoid Valve SS22/23 Series
Poppet
Poppet
| Model No | Type | Port | Position | Port size |
Effective area (mm2) |
Pressure range MPa (kgf/cm2) |
| SS2200 | Direct | 2 | 2 | Rc1/4 | 2.1 |
0~0.7 (0~7) |
| SS2300 | 3 |
● Voltage/ AC110, 220V (50/60Hz), DC24V
● Wiring/Lead wire
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4637">SS22/23 Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4635">SS22/23 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4636">SS22/23 2D CAD
3 Port Solenoid Valve SS Series
3 Port Direct Operated Solenoid Valve SS231
Poppet
Poppet
| Model No | Type | Port | Position | Port size |
Effective area (mm2) |
Pressure range MPa (kgf/cm2) |
| SS23F | Direct | 3 | 2 | M3 | 0.1 | 0~0.7(0~7) |
| SS23J | M5 | 0.35 | 0~0.8(0~8) | |||
| SS231 | M5,Rc1/8 | 0.6 | 0~1(0~10) |
● Voltage/ DC24V – SS23F
AC110, 220V (50/60Hz), DC24V – SS231
● Wiring/Lead wire, Connector with lead wire – SS23F, SS23J
Lead wire, Terminal grommet, Terminal conduit – SS231
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4643">SS231 Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4641">SS231 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4642">SS231 3D CAD

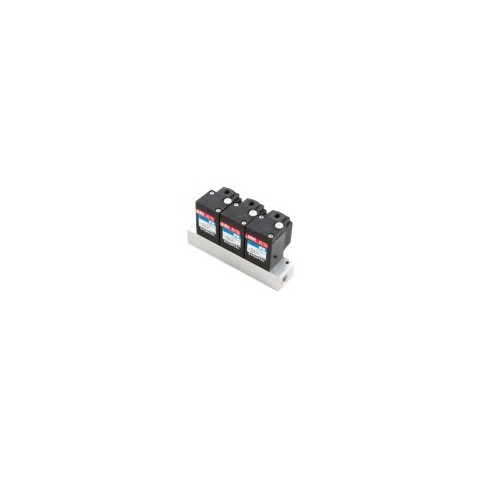

Individual Wiring Type Manifold MF☐-TI/TC
.
.
| Type of Manifold | MF☐-TI1-01 | MF☐-TCI-01 | |
| common SUP, individual EXH | common SUP, common EXH | ||
| Port size | Port 1 | Rc⅛ | Rc⅛ |
| Port 3, 5 | — | Rc⅛ | |
| Port 2, 4 | Rc⅛ | Rc⅛ | |
| Number of stations | 2~10 | ||
| Mountable Solenoid Valve | SS231-NB | SS231-MF | |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4649">MF☐ Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4647">MF☐ 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=4648">MF☐ 3D CAD
