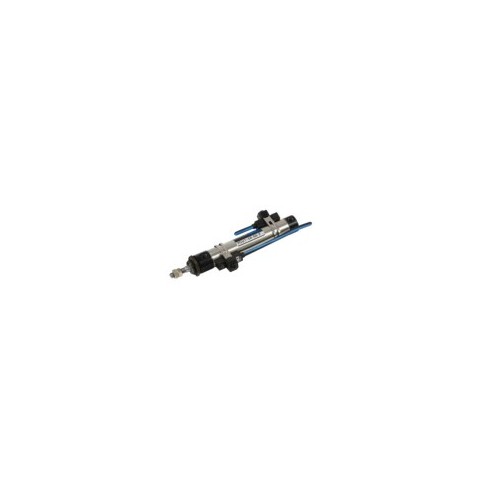

Air Cylinder — Round Type — Z Series Features:
Bore Ø10, Ø16 built-in magnet is a standard equipment. Non-lubricated air applicable


Miniature Cylinder Z Series
Stainless steel tube design to prolong duration

Series Acting Bore size
(mm)
Standard
stroke (mm)
Pressure range
MPa(kgf/cm²)
ZC1 Single acting (Extended) φ 2.5 5,10 0.35~0.7
(3.5~7)
φ 4
φ 6 15,30,45,60 0.3~0.7
(3~7)
φ 10 0.15~0.7
(1.5~7)
φ 16
ZC0 Single acting (Retracted) φ 6 15,30,45,60 0.3~0.7
(3~7)
φ 10 0.15~0.7
(1.5~7)
φ 16
ZG2 Double acting φ 6 15,30,45,60 0.12~0.7
(1.2~7)
φ 10 0.1~0.7
(1~7)

● Mounting/Bore Ø2.5~ Ø4: Nose mounting only
Bore Ø6, Ø10, Ø16: Nose, Foot, Flange and Female clevis mounting
● Switch/ Bore Ø6, Ø10, Ø16: M type switch (reed type, proximity type) mountable.
● Cushion/Bore Ø2.5, Ø4: Non-cushion
Bore Ø6, Ø10, Ø16: Rubber cushion


Z Catalog
Z 2D CAD
Z 3D CAD


Non-Rotating Piston Rod Cylinder Z☐U Series
Stainless steel tube design to prolong duration

Series Acting Bore size
(mm)
Standard
stroke (mm)
Pressure range
MPa(kgf/cm²)
ZCU1 Single acting (Extended) φ 10 15,30,45,60 0.15~0.7
(1.5~7)
φ 16
ZCU0 Single acting (Retracted) φ 10 15,30,45,60 0.15~0.7
(1.5~7)
φ 16
ZGU2 Double acting φ 10 15,30,45,60 0.1~0.7
(1~7)
φ 16

● Bore Ø6, Ø10, Ø16: Nose, Foot, Flange and Female clevis mounting
● Switch/ Bore Ø6, Ø10, Ø16: M type switch (reed type, proximity type) mountable.
● Cushion/Bore Ø2.5, Ø4: Non-cushion
Bore Ø6, Ø10, Ø16: Rubber cushion


Z☐U Catalog
Z☐U 2D CAD
Z☐U 3D CAD
