Air Cylinder-Round Type J Series
2018-09-22 01:53 219 0 Inquiries
Price
Negotiable
Delivery
MalaysiaSelangorSubang JayaWithin 3 days after payment
Brand
Fontal Malaysia
Insufficient stock for this product
Product Details
J Series

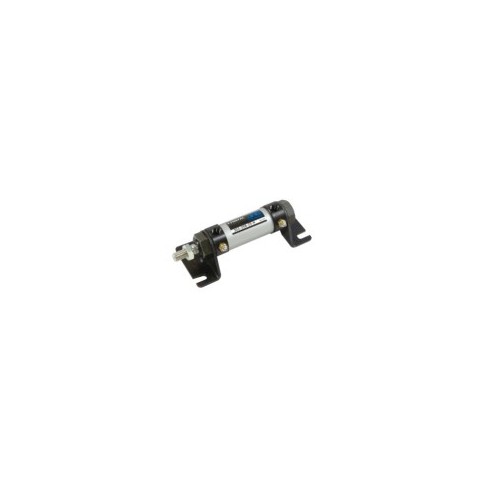

Air Cylinder — Round Type — J Series Features:
Air Cylinder J Series Built-in magnet is a standard equipment. Non-lubricated air applicable
Series
Acting
Bore size
Standard
Pressure range
JC1
Single acting (Extended)
φ 20
15,25,50
0.2~0.7
φ 25
25,50
JC0
Single acting (Retracted)
φ 20
15,25,50
φ 25
25,50
JG2
Double acting
φ 20
15,25,50,75,100
0.1~0.7
φ 25
25,50,75,100
φ 32
25,50,75,100 125,150
φ 40
50,75,100 125,150
● Mounting / Nose, Foot, Flange and Male clevis mounting

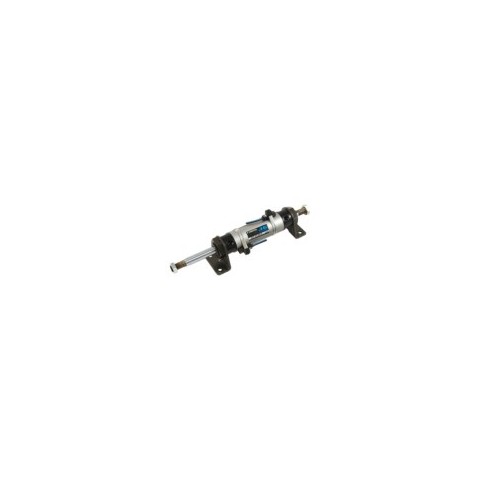

Air Cylinder Double Rod Type J☐7 Series
Series
Acting
Bore size
Standard
Pressure range
J☐7
Double acting
φ 20
15,25,50,75,100
0.1~0.7
φ 25
25,50,75,100
φ 32
25,50,75,100
φ 40
50,75,100
● Mounting / Nose, Foot, Flange and Male clevis mounting
Air Cylinder with Air Cushion J Series
Series
Acting
Bore size
Standard
Pressure range
JG2-※B
Double acting
φ 20
15,25,50,75,100
0.1~0.7
φ 25
25,50,75,100
φ 32
25,50,75,100
φ 40
50,75,100
● Mounting / Nose, Foot, Flange and Male clevis mounting
Direct Mount Cylinder J☐E Series The rectangular rod cover of the cylinder is directly mountable on the unit to be mated. Using this cylinder will result not o
Series
Acting
Bore size
Standard stroke
Pressure range
J☐ES2 (Bottom)
Double acting
φ 20
15,25,50,75,100
0.1~0.7
φ 25
25,50,75,100
φ 32
25,50,75,100
φ 40
50,75,100
● Mounting / Bottom surface, Front surface
Cylinder with Lock Mechanism J☐L Series Built-in drop prevention and designed to lock at stroke end
Series
Acting
Bore size
Standard stroke
Lock
Pressure range
J☐L2
Double acting
φ 20
25,50,75,100
Rod or head side
0.1~0.7
φ 25
25,50,75,100
φ 32
25,50,75,100
φ 40
50,75,100
● Mounting / Nose, Foot, Flange, and Center trunio
Single Rod Dual Stroke Cylinder JGD2 Series This cylinder co
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
Double Rod Dual Stroke Cylinder JGD7 Series This cylinder co
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
Adjustable Stroke Cylinder JGA7 Series On the end wher
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
Adjustable Stroke Cylinder JGA2 Series On the rod retracted end, the stroke is adjustable with an adjustable bolt within a range of 0 to 50mm
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
Low-Speed Cylinder JGJ2 Series None stick operation at 10mm/s
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
High-Temperature Cylinder JCX Series Made of heat-resistant materials which can operate at high temperatures up to 150 0 C
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.1~0.7MPa(1~7kgf/cm²)
Air-Hydro Cylinder JGO Series Cylinder of this series are for air-hydro systems and are suitable for use at low speeds of 50mm/s or less
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.12~0.7MPa(1.2~7kgf/cm²)
Short Length Cylinder JGND Series Cylinder short in overall length: The nose screw portion on the head cover has been cut off
Acting
Double acting
Bore size(mm)
φ 20,φ 25,φ 32,φ 40
Pressure range
0.12~0.7MPa(1.2~7kgf/cm²)
