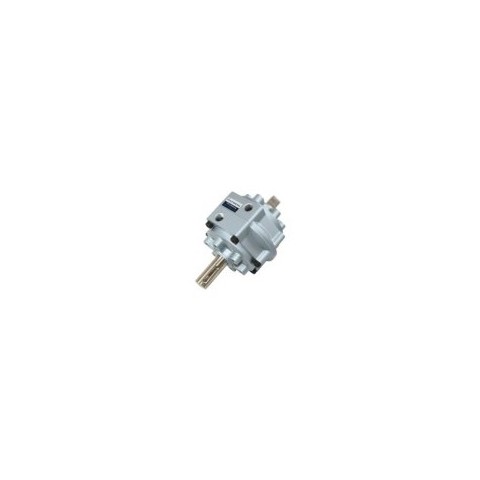

Air-Hydro HI-ROTOR PRF Series
PRF series are exclusively used for air-hydro systems and are suitable for operation at low speed
PRF series are exclusively used for air-hydro systems and are suitable for operation at low speed
| Model No. | Vane Type | Oscillation angle | Oscillation starting point | Output torque N.cm (kgf.cm) | Switch | Accessories |
| PRF50S | Single vane | 90° | 45° |
470 (48) |
FM50 |
Flange Plate, Foot Plate, Hydro-cushion |
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRF150S | 90° | 45° |
1470 (150) |
FM150 | ||
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRF300S | 90° | 45° |
2794 (285) |
FM300 |
Foot Plate, Hydro-cushion |
|
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRF800S | 90° | 45° |
10032 (1023) |
FM800 | ||
| 180° | 45° | |||||
| 270° | 45° | |||||
| 280° | 40° | |||||
| PRF50D | Double Vane | 90° | 45° |
1019 (104) |
FM50 |
Flange Plate, Foot Plate, Hydro-cushion |
| 100° | 40° | |||||
| PRF150D | 90° | 45° | 3432 (350) | FM150 | ||
| 100° | 40° | |||||
| PRF300D | 90° | 45° |
6668 (680) |
FM300 |
Foot Plate, Hydro-cushion |
|
| 100° | 40° | |||||
| PRF800D | 90° | 45° |
20152 (2055) |
FM800 | ||
| 100° | 40° |
●The above data were measured on the Pressure at 0.49MPa(5kgf/cm²)
