Air Preparation Equipment — F.R.L. Unit — Standard Type
B.L. Unit U658, U668 Series
.
.
| Model No |
Port size |
Components |
Filter element (μm) |
Reduced pressure range MPa(kgf/cm²) |
Option | |
|
Integral filter regulator |
Air lubricator | |||||
| U658-02,03 | Rc1/4,3/8 | B011-02,03 | L606-02,03 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drainmaster, Spring drain |
| U658-04 | Rc1/2 | B011-04 | L606-04 | |||
| U658W- 02,03 | Rc1/4,3/8 | B011-02,03 | L606W-02,03 | |||
| U658W-04 | Rc1/2 | B011-04 | L606W-04 | |||
| U668-02,03 | Rc1/4,3/8 | B012-02,03 | L606-02,03 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drainmaster, Spring drain |
| U668-04 | Rc1/2 | B012-04 | L606-04 | |||
| U668W- 02,03 | Rc1/4,3/8 | B012-02,03 | L606W-02,03 | |||
| U668W-04 | Rc1/2 | B012-04 | L606W-04 | |||
● W：metal bowl encircled with sight glass

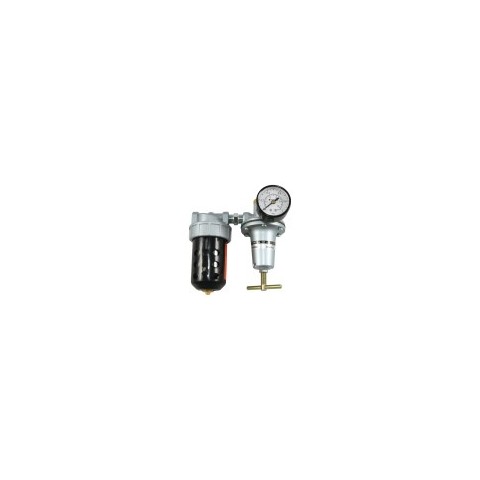

F.R. Unit U628 Series
Consisting of air filter and air regulator
Consisting of air filter and air regulator
| Model No | Port size | Components |
Filter element (μm) |
Reduced pressure range MPa (kgf/cm²) |
Option | |
| Air filter | Air regulator | |||||
| U628-02,03 | Rc1/4,3/8 | F602-02,03 | R119-02,03 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drainmaster, Spring drain |
| U628-04 | Rc1/2 | F602-04 | R119-04 | |||
| U628W-02,03 | Rc1/4,3/8 | F602-02,03 | R119-02,03 | |||
| U628W-04 | Rc1/2 | F602-04 | R119-04 | |||
| U628W-06, 08 | Rc3/4,1 | F602-06,08 | R119-06,08 | |||
● W：metal bowl encircled with sight glass

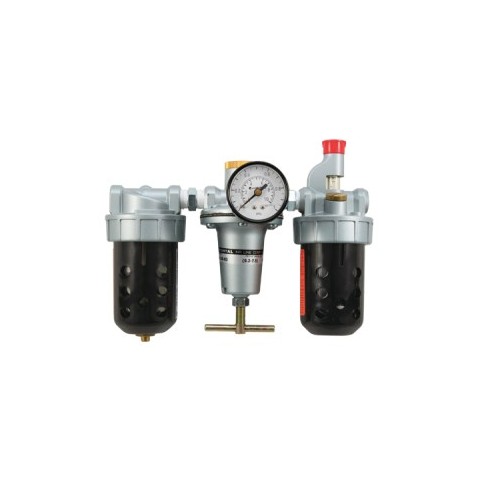

F.R.L. Unit C628, C668 Series
FRL unit consisting to integral filter-regulator and air lubricator
FRL unit consisting to integral filter-regulator and air lubricator
| Model No | Port size | Components |
Filter element (μm) |
Reduced pressure range MPa (kgf/cm²) |
Option | ||
| Air filter |
Air regulator |
Air lubricator |
|||||
| C628- 02,03,04 | Rc1/4,3/8, 1/2 | F602- 02,03,04 | R119- 02,03,04 | L606- 02,03,04 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Spring drain |
| C628W- 02,03,04 | Rc1/4,3/8, 1/2 | F602W- 02,03,04 | R119- 02,03,04 | L606W- 02,03,04 | |||
| C628(W)- 06,08 | Rc3/4,1 | F602(W)- 06,08 | R119- 06,08 | L606(W)- 06,08 | |||
| C668-04 | Rc1/2 | F602-04 | R011-04 | L606-04 | |||
| C668W-04 | Rc1/2 | F602W-04 | R011-04 | L606W-04 | |||
● W：metal bowl encircled with sight glass
F.S.R. Unit C728 Series / F.M.R. Unit C828 Series
C728 Series: Consisting of air filter, sludge filter and air regulator.
C728 Series: Consisting of air filter, sludge filter and air regulator.
| Model No | Port size | Components |
Reduced pressure range MPa (kgf/cm²) |
Option | ||
| Air filter |
Sludge filter |
Air regulator |
||||
| C728-02,03 | Rc1/4,3/8 | F602-02,03 | S604-02,03 | R119-02,03 |
0.02~0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drain master, Spring drain |
| C728-04 | Rc1/2 | F602-04 | S604-04 | R119-04 | ||
| C728W- 02,03 | Rc1/4,3/8 | F602W- 02,03 | S604D- 02,03 | R119-02,03 | ||
| C728W-04 | Rc1/2 | F602W-04 | S604D-04 | R119-04 | ||
| C728W- 06,08 | Rc3/4,1 | F602W- 06,08 | S604D- 06,08 | R119-06,08 | ||
● W：metal bowl encircled with sight glass
● D：metal bowl without sight glass
C828 Series: Consisting of air filter, mocro mist filter and air regulator
| Model No | Port size | Components |
Reduced pressure range MPa (kgf/cm²) |
Option | ||
| Air filter |
Mirco mist filter |
Air regulator |
||||
| C828-02,03 | Rc1/4,3/8 | F602-02,03 | M600-02,03 | R119-02,03 |
0.02~0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drainmaster, Spring drain |
| C828-04 | Rc1/2 | F602-04 | M600-04 | R119-04 | ||
| C828W- 02,03 | Rc1/4,3/8 | F602W- 02,03 | M600D- 02,03 | R119-02,03 | ||
| C828W-04 | Rc1/2 | F602W-04 | M600D-04 | R119-04 | ||
| C828W- 06,08 | Rc3/4,1 | F602W- 06,08 | M600D- 06,08 | R119-06,08 | ||
● W：metal bowl encircled with sight glass
● D：metal bowl without sight glass
F.S.R.L. Unit A728 Series / F.M.R.L. Unit A828 Series
A728 Series: Consisting of air filter, sludge filter, air regulator and air lubrication
A728 Series: Consisting of air filter, sludge filter, air regulator and air lubrication
| Model No | Port size | Components |
Reduced pressure range MPa (kgf/cm²) |
Option | |||
| Air filter |
Micro mist filter |
Air regulator |
Lubricator | ||||
| A728-02,03 | Rc1/4,3/8 | F602-02,03 | S604-02,03 | R119-02,03 | L606-02, 03 |
0.02~0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drain master, Spring drain |
| A728-04 | Rc1/2 | F602-04 | S604-04 | R119-04 | L606-04 | ||
| A728W- 02,03 | Rc1/4,3/8 | F602W- 02,03 | S604D- 02,03 | R119-02,03 | L606W-02, 03 | ||
| A728W-04 | Rc1/2 | F602W-04 | S604D-04 | R119-04 | L606W-04 | ||
| A728W- 06,08 | Rc3/4,1 | F602W- 06,08 | S604D- 06,08 | R119-06,08 | L606W-06, 08 | ||
● W：metal bowl encircled with sight glass
● D：metal bowl without sight glass
A828 Series: Consisting of air filter, micro mist filter, air regulator and air lubrication
| Model No | Port size | Components |
Reduced pressure range MPa (kgf/cm²) |
Option | |||
| Air filter |
Micro mist filter |
Air regulator |
Lubricator | ||||
| A828-02,03 | Rc1/4,3/8 | F602-02,03 | M600-02,03 | R119-02,03 | L606-02, 03 |
0.02~0.75 (0.2~7.5) |
Bracket, Pressure gauge, Automatic drain, Drainmaster, Spring drain |
| A828-04 | Rc1/2 | F602-04 | M600-04 | R119-04 | L606-04 | ||
| A828W- 02,03 | Rc1/4,3/8 | F602W- 02,03 | M600D- 02,03 | R119-02,03 | L606W-02, 03 | ||
| A828W- 04 | Rc1/2 | F602W- 04 | M600D- 04 | R119-04 | L606-04 | ||
| A828W- 06,08 | Rc3/4,1 | F602W- 06,08 | M600D- 06,08 | R119-06,08 | L606W-06, 08 | ||
● W：metal bowl encircled with sight glass
● D：metal bowl without sight glass
Sludge Filter Standard Type S604 Series
Separates and removes sludge and drain produced by compressor
Separates and removes sludge and drain produced by compressor
| Model No | Port size |
Recommended max. flow l /min(ANR) |
Filter element (μm) |
Option |
| S604(D)-02 | Rc1/4 | 750 | 0.3 |
Bracket, Automatic drain, Spring drain |
| S604(D)-03 | Rc3/8 | |||
| S604(D)-04 | Rc1/2 | |||
| S604DF-02 | Rc1/4 | 1500 | ||
| S604DF-03 | Rc3/8 | |||
| S604DF-04 | Rc1/2 | |||
| S604D-06 | Rc3/4 | 3500 | ||
| S604D-08 | Rc1 |
● D：metal bowl without sight glass
Pilot Regulator BR Series
Use pilot air pressure to operate regulator, also can use R364 series to control pilot regulator for long distance operating
Use pilot air pressure to operate regulator, also can use R364 series to control pilot regulator for long distance operating
| Model No |
Max. supply pressure MPa(kgf/cm²) |
Pilot pressure MPa(kgf/cm²) |
Port size | pilot port size |
| BR-N-2,3 | 2.1(21) | 1(10) | Rc1/4,3/8 | Rc1/8 |
| BR-N-4 | Rc1/2 | Rc1/4 | ||
| BR-N-6,8 | Rc3/4,1 | |||
| BR-N-10,12 | Rc1¼,1½ |
● Pressure Range:0.49MPa(5kgf/cm²)
Coalescing Filter Standard Type H604 Series
Air filter capable of removing aerosol consisting of water and oil of more than 1μm
Air filter capable of removing aerosol consisting of water and oil of more than 1μm
| Model No | Port size |
Recommended max. flow l /min(ANR) |
Filter element (μm) |
Option |
| H604-02,03 | Rc1/4,3/8 | 800 | 1 |
Bracket, Spring drain |
| H604-04 | Rc1/2 | |||
| H604D-02,03 | Rc1/4,3/8 | 800 |
Bracket, Automatic drain, Spring drain |
|
| H604D-04 | Rc1/2 | |||
| H604D-06,08 | Rc3/4,1 | 4000 |
Automatic drain, Spring drain |
● D：metal bowl without sight glass
Air Regulator Standard Type R010, R011 Series
.
.
| Model No | Port size |
Reduced pressure range MPa(kgf/cm²) |
Max. supply pressure MPa(kgf/cm²) |
Option | |
| T handle knob | Standard knob | Rc1/4,3/8,1/2 |
0.02~0.75 (0.2~7.5) |
1.4(14) |
Bracket, Pressure gauge, Ring for panel mounting |
| R011-02, 03,04 | R010-02, 03,04 | ||||
Air Regulator Standard Type R119 Series
.
.
| Model No | Port size |
Reduced pressure range MPa(kgf/cm²) |
Max. supply pressure MPa(kgf/cm²) |
Option | |
| Pressure relief |
Non-pressure relief |
||||
| R119-02,03 | R118-02,03 | Rc1/4,3/8 |
0.02~0.75 (0.2~7.5) |
2.1 (21) |
Bracket, Pressure gauge |
| R119-04 | R118-04 | Rc1/2 | |||
| R119-06,08 | R118-06,08 | Rc3/4,1 | |||
| R119-10,12 | R118-10,12 | Rc1¼,1½ | |||
| R119-16 | R118-16 | Rc2 |
0.03~0.75 (0.3~7.5) |
Pressure gauge |
|
| R119L-02,03 | R118L-02,03 | Rc1/4,3/8 |
0.01~0.4 (0.1~4) |
Bracket, Pressure gauge |
|
| R119L-04 | R118L-04 | Rc1/2 | |||
| R119H-02,03 | R118H-02,03 | Rc1/4,3/8 |
0.05~1.6 (0.5~16) |
||
| R119H-04 | R118H-04 | Rc1/2 | |||
| R119H-06,08 | R118H-06,08 | Rc3/4,1 | |||
| R119H-10,12 | R118H-10,12 | Rc1¼,1½ | |||
● R119 (L.H) 02, 03, 04: panel mounting available
Air Filter Standard Type F602 Series
Separates and removes water and dust in compressed air
Separates and removes water and dust in compressed air
| Model No | Port size |
Bowl capacity (cm3) |
Filter element (μm) |
Option |
| F602-02,03 | Rc1/4,3/8 | 148 | 5 |
Bracket, Automatic drain, Drainmaster, Spring drain |
| F602-04 | Rc1/2 | 237 | ||
| F602W-02,03 | Rc1/4,3/8 | 148 |
Bracket, Automatic drain, Spring drain |
|
| F602W-04 | Rc1/2 | 237 | ||
| F602W-06,08 | Rc3/4,1 | 474 |
Automatic drain, Spring drain |
● W：metal bowl encircled with sight glass
Micro Mist Filter Standard Type M600 Series
High-performance air filter capable of removing more than 99.99998% of aerosol consisting of water and oil of more than 0.01μm
High-performance air filter capable of removing more than 99.99998% of aerosol consisting of water and oil of more than 0.01μm
| Model No | Port size |
Recommended max. flow l /min(ANR) |
Filter element (μm) |
Oil mist removal (%) |
Option |
| M600-02,03 | Rc1/4,3/8 | 283 | 0.01 | 99.99998 | Automatic drain |
| M600(DF)- 02,03,04 | Rc1/4,3/8,1/2 | 566 | |||
| M600D-06,08 | Rc3/4,1 | 1415 |
● D：metal bowl without sight glass
Air Lubricator Standard Type L606 Series
.
.
| Model No | Port size |
Bowl capacity (cm3) |
Max. supply pressure MPa(kgf/cm²) |
| L606-02,03 | Rc1/4,3/8 | 148 | 1(10) |
| L606-04 | Rc1/2 | 237 | |
| L606W-02,03 | Rc1/4,3/8 | 474 | |
| L606W-04 | Rc1/2 | 237 | |
| L606W-06,08 | Rc3/4,1 | 474 |
● W：metal bowl encircled with sight glass
Integral Filter-regulator Standard Type B011, B012 Series
.
.
| Model No | Port size |
Filter element (μm) |
Bowl capacity (cm3) |
Reduced pressure range MPa(kgf/cm²) |
Option |
| B012W- 02,03,04 | Rc1/4,3/8,1/2 | 5 | 200 |
0.02~0.75 (0.2~7.5) |
Bracket, Pressure gauge |
| B011W- 02,03,04 |
● W：metal bowl encircled with sight glass
