Air Preparation Equipment — F.R.L. Unit — Miniature Series
B.L Unit Miniature Type U558 Series
FRL unit consisting to integral filter-regulator and air lubricator
FRL unit consisting to integral filter-regulator and air lubricator
| Model No |
Port size |
Components |
Filter element (μm) |
Reduced pressure range MPa(kgf/cm²) |
Option | |
|
Integral filter regulator |
Air lubricator | |||||
| U558-02 | Rc1/4 | B594-02 | L508-02 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Drainmaster, Spring drain |
F.R. Unit Miniature Type U528 Series
Consisting of air filter and air regulator
Consisting of air filter and air regulator
| Model No | Port size | Components |
Filter element (μm) |
Reduced pressure range MPa (kgf/cm²) |
Option | |
| Integral filter regulator | Air lubricator | |||||
| U528-02 | Rc1/4 | F504-02 | R364-02 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Drainmaster, Spring drain |
F.R.L. Unit Miniature Type C528 Series
FRL unit consisting to integral filter-regulator and air lubricator
FRL unit consisting to integral filter-regulator and air lubricator
| Model No | Port size | Components |
Filter element (μm) |
Reduced pressure range MPa (kgf/cm²) |
Option | ||
| Air filter |
Air regulator |
Air lubricator |
|||||
| C528-02 | Rc1/4 | F504-02 | R364-02 | L508-02 | 5 |
0.02~ 0.75 (0.2~7.5) |
Bracket, Pressure gauge, Spring drain |
Water Regulator Miniature Type W361 Series
.
.
| Model No | Port size |
Reduced pressure range MPa(kgf/cm²) |
Max. supply pressure MPa(kgf/cm²) |
| W361-02 | Rc1/4 |
0.02~0.75 (0.2~7.5) |
1.4(14) |
| W361L-02 |
0.01~0.3 (0.1~3) |

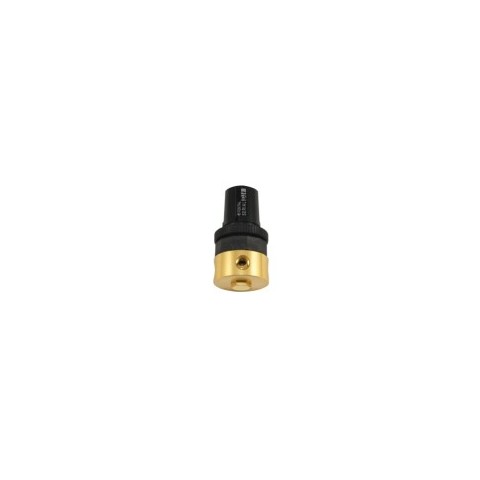

Air Regulator Miniature Type R364 Series
.
.
| Model No | Port size |
Reduced pressure range MPa(kgf/cm²) |
Max. supply pressure MPa(kgf/cm²) |
Option |
| R364-02 | Rc1/4 | 0.02~0.75(0.2~7.5) | 1.4(14) |
Bracket, Pressure gauge |
| R364L-02 | 0.01~0.3(0.1~3) |
・Pressure relief and non-pressure relief types are available
Air Filter Miniature Type F504 Series
Separates and removes water and dust in compressed air
Separates and removes water and dust in compressed air
| Model No | Port size |
Bowl capacity (cm3) |
Filter element (μm) |
Option |
| F504-02 | Rc1/4 | 10 | 5 |
Drainmaster, Spring drain |
Sludge Filter Miniature Type S504 Series
Separates and removes sludge and drain produced by compressor
Separates and removes sludge and drain produced by compressor
| Model No | Port size |
Recommended max. flow l/min(ANR) |
Filter element (μm) |
Option |
| S504-02 | Rc1/4 | 250 | 0.3 |
Drainmaster, Spring drain |
Micro Mist Filter Miniature Type M500 Series
High-performance air filter capable of removing more than 99.99998% of aerosol consisting of water and oil of more than 0.01μm
High-performance air filter capable of removing more than 99.99998% of aerosol consisting of water and oil of more than 0.01μm
| Model No | Port size |
Recommended pressure range l /min(ANR) |
Filter element (μm) |
Oil mist removal (%) |
Option |
| M500-02 | Rc1/4 | 250 | 0.01 | 99.99998 |
Drainmaster, Spring drain |
Air Lubricator Miniature Type L508 Series
.
.
| Model No | Port size |
Bowl capacity (cm3) |
Max. supply pressure MPa(kgf/cm²) |
| L508-02 | Rc1/4 | 30 | 1(10) |
| 1.2(12) |
Integral Filter-regulator Miniature Type B549 Series
.
.
| Model No | Port size |
Filter element (μm) |
Bowl capacity (cm3) |
Reduced pressure range MPa(kgf/cm²) |
Option |
| B549-02 | Rc1/4 | 5 | 10 |
0.02~0.75 (0.2~7.5) |
Bracket, Spring drain, Drainmaster |
