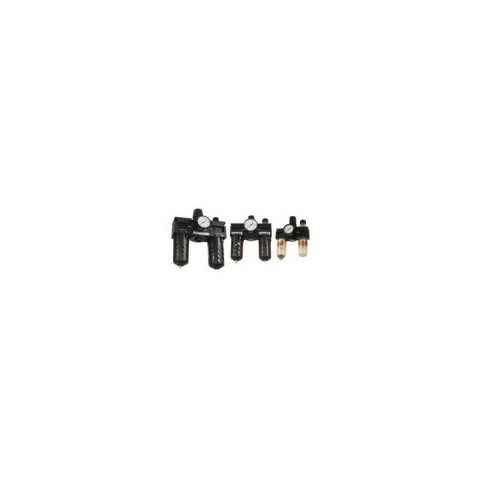

F.R.L Air Combination Unit C45, C55, C105
Modular type FRL unit consisting of air filter, air regulator and air lubricator
Modular type FRL unit consisting of air filter, air regulator and air lubricator
| Model No | Port size | Components |
Filter element (μm) |
Reduced pressure range MPa(kgf/cm²) |
Option | ||
| Air filter |
Air regulator |
Air lubricator |
|||||
| C45-2,3 | Rc1/4,3/8 | F45-2,3 | R45-2,3 | L45-2,3 | 5 | 0.03~0.8 (0.3~8) |
Bracket, Pressure gauge, Drainmaster, Spring drain |
| C45-2,3D | F45-2,3D | L45-2,3D | |||||
| C45-2,3L | F45-2,3 | R45-2,3L | L45-2,3 |
0.02~0.42 (0.2~4.2) |
|||
| C45-2,3DL | F45-2,3D | L45-2,3D | |||||
| C55-2,3,4 | Rc1/4,3/8, 1/2 | F55-2,3,4 | R55-2,3,4 | L55-2,3,4 |
0.02~0.8 (0.2~8) |
Bracket, Pressure gauge, Drainmaster, Spring drain |
|
| C55-2,3,4D | F55-2,3,4D | L55-2,3,4D | |||||
| C55-2,3,4L | F55-2,3,4 | R55-2,3,4L | L55-2,3,4 |
0.01~0.42 (0.1~4.2) |
|||
| C55- 2,3,4DL | F55-2,3,4D | L55-2,3,4D | |||||
| C105-4,6 | Rc1/2,3/4 | F105-4,6 | R105-4,6 | L105-4,6 |
0.02~0.8 (0.2~8) |
||
| C105-4,6D | F105-4,6D | L105-4,6D | |||||
● D：metal bowl without sight glass L: Reduce pressure range
