Additional Equipment — Flow Control Valve Features:
Dexterous design and precise flow rate control of flow control valve play an important role in many industrial applications.
・Stable Rectifier
・Wide range of sizes
・Long life
・Large flow rate

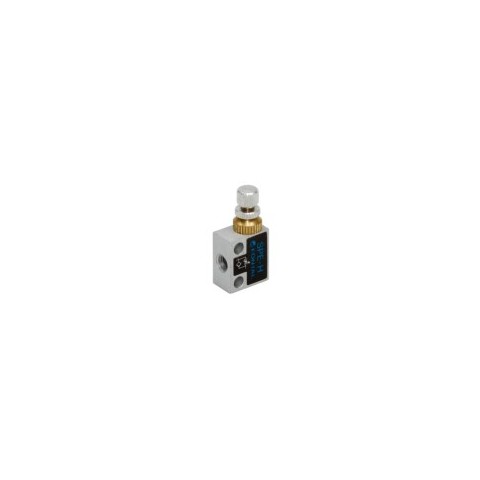

Flow Control Valve Z, H Series
Outstanding controllability attainable in low flow rate region
Outstanding controllability attainable in low flow rate region
| Model No | Type | Port size |
Effective area (mm2) |
Pressure range MPa(kgf/cm²) |
| SP-Z-M3 | Straight | M3 | 0.4 |
0~0.8 (0~8) |
| SPE-Z-M3 | Elbow | |||
| SPF-Z-M3 | Flat | |||
| SPER-Z-M3 | Universal elbow | |||
| SPSR-Z-M3 | Universal | |||
| SPR-Z-M3 | ||||
| SP-H-M5 | Straight | M5 | 1.0 | |
| SPE-H-M5 | Elbow | |||
| SPF-H-M5 | Flat | |||
| SPER-H-M5 | Universal elbow | |||
| SPSR-H-M5 | Universal | |||
| SPR-H-M5 |
Flow Control Valve 2H Series
Outstanding controllability attainable in low flow rate region
Outstanding controllability attainable in low flow rate region
| Model No | Type | Port size |
Effective area (mm2) |
Pressure range MPa(kgf/cm²) |
| SP-2H-1,2 | Straight | Rc1/8,1/4 | 2.7 |
0~1 (0~10) |
| SPE-2H-1,2 | Elbow | R,Rc1/8,1/4 |

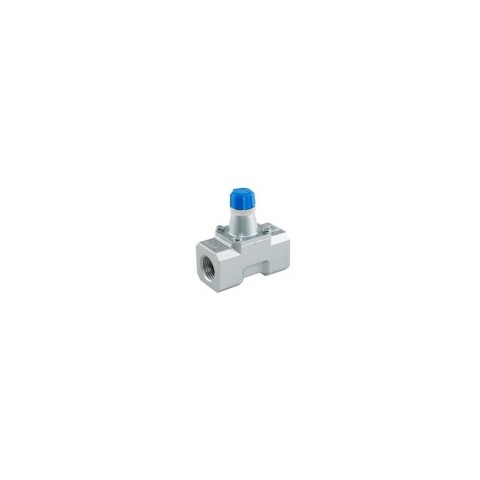

Flow Control Valve SP 06, 10, 15, 20
Outstanding controllability attainable in low flow rate region
Outstanding controllability attainable in low flow rate region
| Model No | Type | Port size |
Effective area (mm2) |
Pressure range MPa(kgf/cm²) |
| SP-06-1,2 | Straight | Rc1/8,1/4 | 17 |
0~1 (0~10) |
| SPE-06-1,2 | Elbow | R,Rc1/8,1/4 | 12 | |
| SPE-10-3 | Elbow | R,Rc3/8 | 39 | |
| SPE-10-3,4 |
External R1/2, Internal Rc3/8 |
45 | ||
| SP-15-3,4,6 | Straight | Rc3/8,1/2,3/4 | 70 | |
| SP-20-6,8 | Straight | Rc3/4,1 | 174 |
