Additional Equipment — Fitting Features:
Fitting makes line setting time-saving and convenient.
• Time-saving
• Long life
• Stable
• Vacuum line applicable
FPC Straight Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Straight | FPC | M5 | ● | ● | |||
| M6 | ● | ● | |||||
| PT1/8 | ● | ● | ● | ● | |||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | |||
| PT1/2 | ● | ● | ● | ||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5330">FPC Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5327">FPC 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5328">FPC 3D CAD
FPU Union Straight Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Union Straight | FPU | – | ● | ● | ● | ● | ● |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5335">FPU Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5333">FPU 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5334">FPU 3D CAD
FPG Different Diam. Union Straight Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
|
Different Diam. Union Straight |
FPG | φ 6 | ● | ||||
| φ 8 | ● | ||||||
| φ 10 | ● | ||||||
| φ 12 | ● | ||||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5341">FPG Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5339">FPG 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5340">FPG 3D CAD

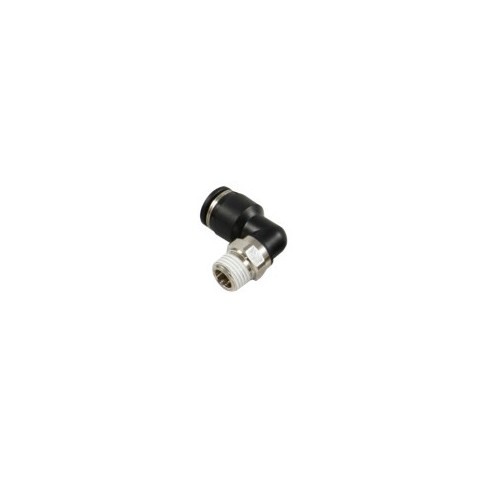

FPL Elbow Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Elbow | FPL | M3 | ● | ||||
| M5 | ● | ● | |||||
| M6 | ● | ● | |||||
| PT1/8 | ● | ● | ● | ● | |||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | |||
| PT1/2 | ● | ● | ● | ||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5348">FPL Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5345">FPL 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5346">FPL 3D CAD
FPLL Long Elbow Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Long Elbow | FPLL | M5 | ● | ● | |||
| PT1/8 | ● | ● | ● | ||||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | |||
| PT1/2 | ● | ● | |||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5353">FPLL Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5351">FPLL 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5352">FPLL 3D CAD
FPV Union Elbow Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Union Elbow | FPV | – | ● | ● | ● | ● | ● |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5360">FPV Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5357">FPV 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5358">FPV 3D CAD
FPE Union Tee Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Union Tee | FPE | – | ● | ● | ● | ● | ● |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5365">FPE Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5363">FPE 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5364">FPE 3D CAD
FPY Union Y Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Union Y | FPY | – | ● | ● | ● | ● | ● |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5371">FPY Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5369">FPY 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5370">FPY 3D CAD
FPW Different Diam. Union Y Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
|
Different Diam. Union Y |
FPW | φ 6 | ● | ||||
| φ 8 | ● | ||||||
| φ 10 | ● | ||||||
| φ 12 | ● | ||||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5378">FPW Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5375">FPW 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5376">FPW 3D CAD
FPB Tee Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Tee | FPB | M3 | ● | ||||
| M5 | ● | ● | |||||
| M6 | ● | ● | |||||
| PT1/8 | ● | ● | ● | ● | |||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | ● | ||
| PT1/2 | ● | ● | ● | ||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5383">FPB Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5381">FPB 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5382">FPB 3D CAD

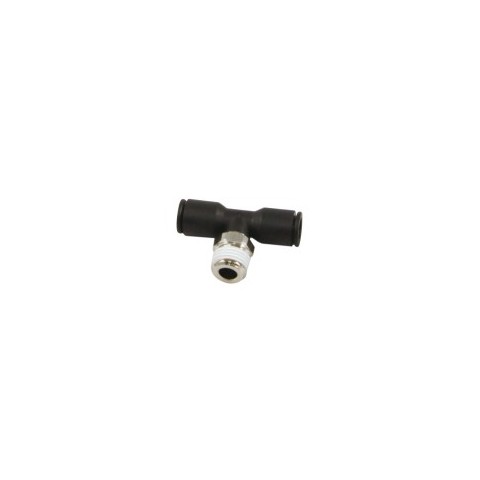

FPD Branch Tee Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Branch Tee | FPD | M3 | ● | ||||
| M5 | ● | ● | |||||
| M6 | ● | ● | |||||
| PT1/8 | ● | ● | ● | ● | |||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | ● | ||
| PT1/2 | ● | ● | ● | ||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5389">FPD Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5387">FPD 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5388">FPD 3D CAD
FPX Branch Y Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Branch Y | FPX | M5 | ● | ● | |||
| PT1/8 | ● | ● | ● | ||||
| PT1/4 | ● | ● | ● | ● | ● | ||
| PT3/8 | ● | ● | ● | ● | |||
| PT1/2 | ● | ● | |||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5396">FPX Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5393">FPX 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5394">FPX 3D CAD
FPM Bulkhead Union Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
| Bulkhead Union | FPM | – | ● | ● | ● | ● | ● |
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5402">FPM Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5399">FPM 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5400">FPM 3D CAD
FPMF Bulkhead Female Straight Type
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
For nylon and polyurethane tubes.
Sealant is coated on threaded portion, eliminating need for sealing tap
| Type | Model | Connection | Applicable tube O.D. | ||||
| φ 4 | φ 6 | φ 8 | φ 10 | φ 12 | |||
|
Bulkhead Female Straight |
FPMF(G) | G1/8 | ● | ● | ● | ||
| G1/4 | ● | ● | ● | ||||
| G3/8 | ● | ● | ● | ||||
| G1/2 | ● | ||||||
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5407">FPMF Catalog
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5405">FPMF 2D CAD
ink wpdm-download-locked [btnclass]" href="http://fontal-auto.com/?wpdmdl=5406">FPMF 3D CAD
